Tractor · 2004Unverified

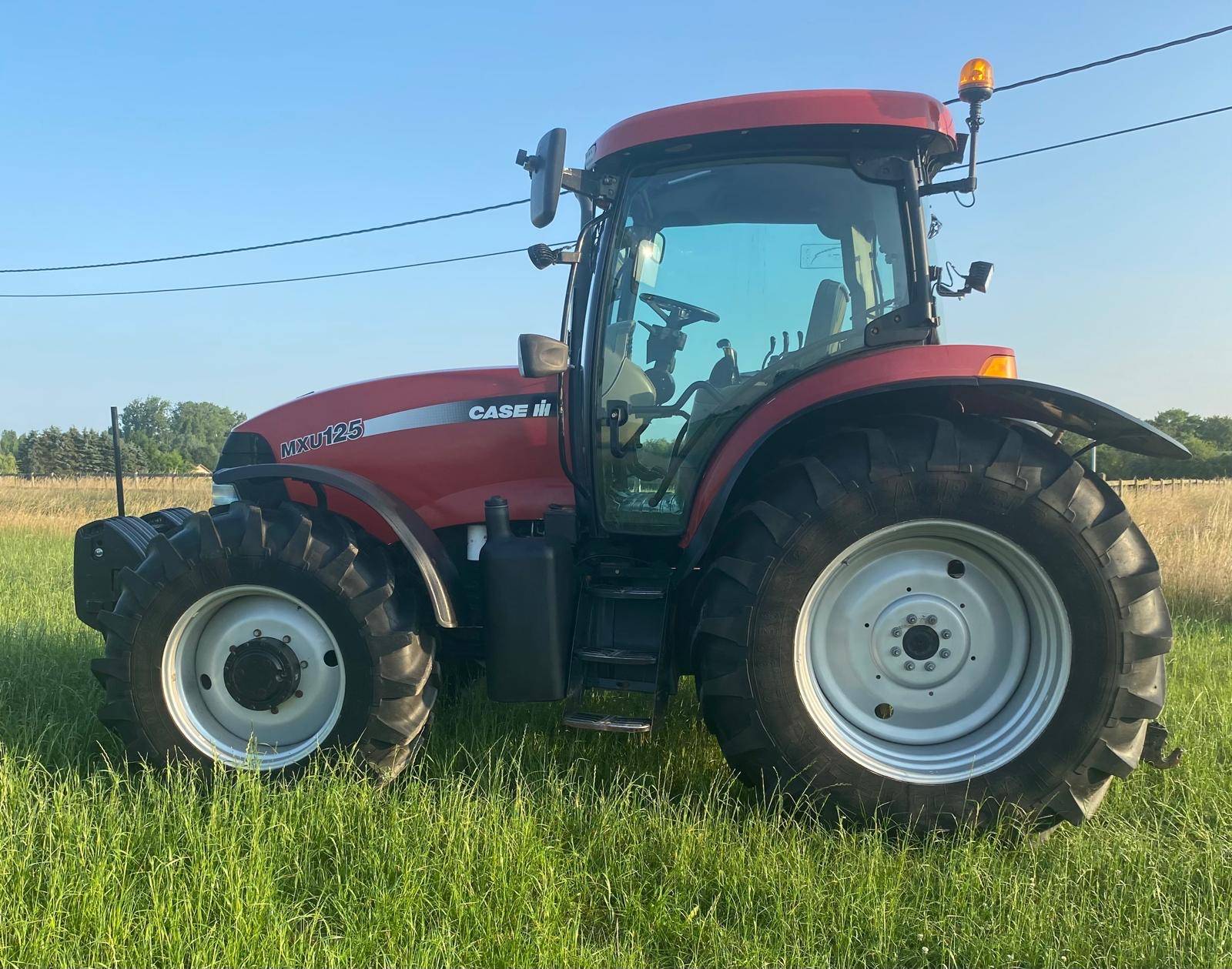

CaseIH MXU125
CaseIH MXU125 — MXU Maxxum Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Max power
90.4 kW
Weight
10053 to 12065 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Basildon, EnglandReference
Original price was $52,400 in 2005Reference
Two- or four-wheel driveReference
Final drivesplanetary inboardReference
Differential lockelectro-hydraulic rear standardReference
Differential lockfront optionalReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
TS125Asimilar New Holland modelReference
Engine
CNH 6.7L 6-cyl dieselReference
Fuel tank253.6 LReference
Engine (gross)93.2 kWReference
Drawbar (tested)66.0 kWReference
CNHReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
Power (gross)93.2 kWReference
Fuel systemBosch electronic direct injection with 8-hole injectorsReference
Air cleanerdual paper elementsReference
Pre-heatinggrid heaterReference
Compression17.0:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power90.4 kWReference
Power at rated engine speed81.6 kWReference
Max power66.0 kWReference
Transmission
24-speed partial powershiftReference
16-speed partial powershiftReference
Typepartial powershiftReference
Gears24 forward and reverseReference
Clutchelectro-hydraulic wet discsReference
Four gears (1-4) in three ranges (I-II-III) with low-high power shift. Gears and ranges are synchronized.Reference
Gears16 forward and reverseReference
Four gears (1-4) in four ranges (A-D). Power shift between gears. Auto Shift feature automatically matches shifts within selected range to match load.Reference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
PTO (tested)90.4 kWReference
Typeopen centerReference
Typepressure-flow compensated (PFC)Reference
Pressure205.1 barReference
Pressure215.0 barReference
Rear valves2 to 4Reference
Pump flow74.9 lpmReference
Pump flow100.3 lpmReference
Total flow114.7 lpmReference
Total flow140.0 lpmReference
Steering flow39.7 lpmReference
Rear TypeII (ROPS)Reference
Rear TypeII/IIIN (cab)Reference
Controlmechanical lower link (ROPS)Reference
Controlelectronic draft control (cab)Reference
Rear lift4211 kgReference
Rear lift5527 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet platesReference
Rear PTO Type540/1000Reference
Engine RPM540@1969Reference
Engine RPM1000@2120Reference
Power at rated PTO speed84.7 kWReference
Dimensions
2WD Wheelbase265 cmReference
4WD Wheelbase265 cmReference
Weight10053 to 12065 poundsReference
Front tire10.00x16Reference
2WD Rear tire18.4R38Reference
2WD Standard tires (ag)Front: 10.00x16. Rear: 18.4R38Reference
4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Shipping4560 kgReference
Shipping4980 kgReference
Shipping4729 kgReference
Shipping5139 kgReference
Operating5472 kgReference
CaseIH MXU125 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70 (ROPS)Reference
Charging amps120 (cab)Reference
Battery CCA1300Reference
Battery volts12Reference
Attachment overview
CaseIH LX156 loaderReference
CaseIH MXU125 Height
ROPS289 cmReference
Cab289 cmReference
Cab296 cmReference
Exhaust291 cmReference
Test results
Diesel 24-speed 4WDMarch 1 - May 1, 2005Link: OCED Tractor Test 2259 fileReference
PTO performanceReference
Fuel use25.0 l/hourReference
Fuel use25.4 l/hourReference
Drawbar performanceReference
Gear 12 used for power test.Reference
Max pull5792 kgReference
Gear 1-I-Hi used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
