Tractor · 2004Unverified

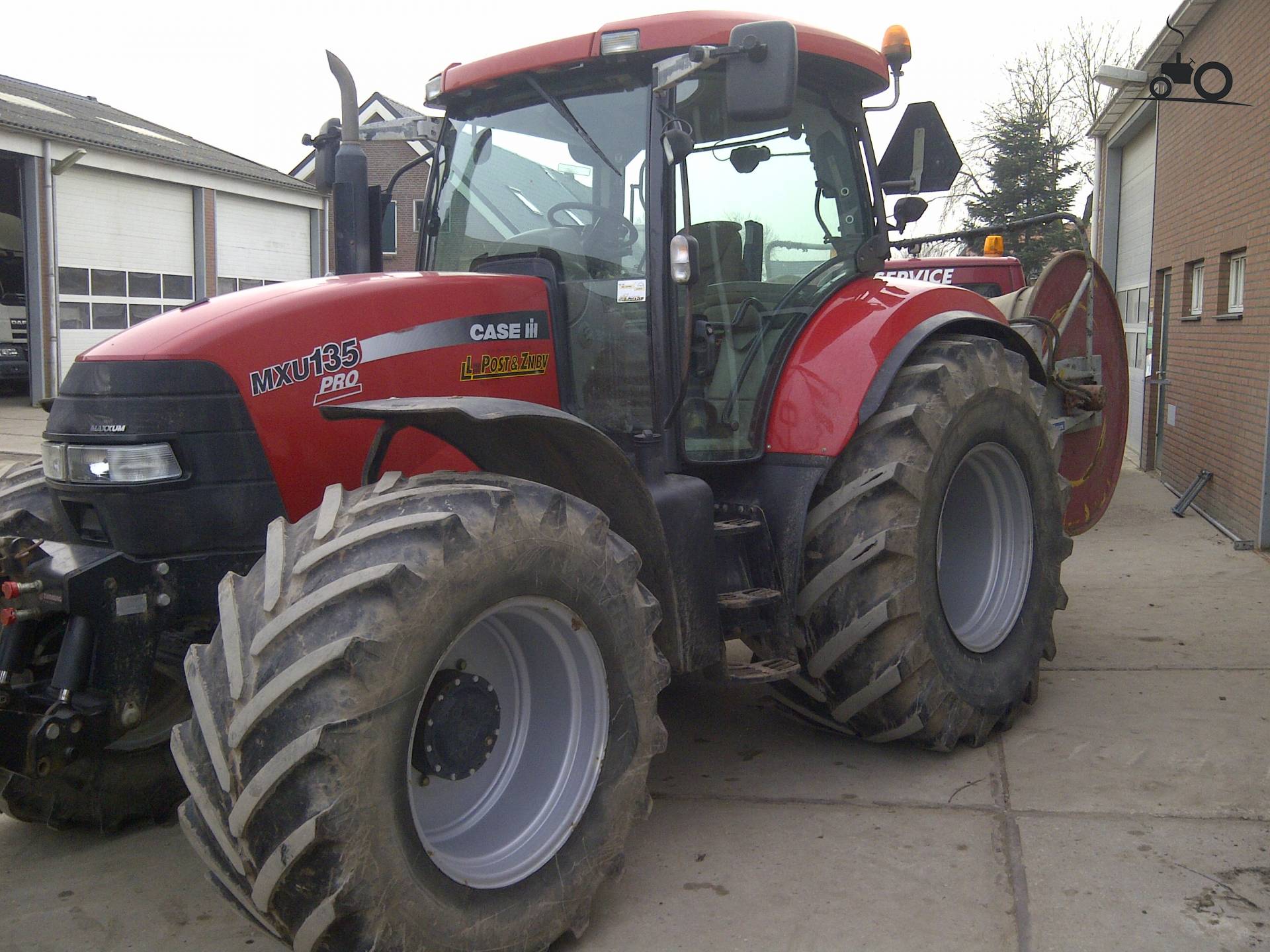

CaseIH MXU135

Name: CaseIH MXU135
Brand: CaseIH

CaseIH MXU135 — MXU Maxxum Series · 135 hp. Reference specifications; pending source verification.

The CaseIH MXU135 is a tractor model with a rating of approximately 135 horsepower, placing it at the higher power end of its class. It was produced between 2004 and 2006. The tractor features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. The operating weight of the CaseIH MXU135 is listed as 10979 to 12020 pounds, and it is suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

135 hp

Max power

95.0 kW

Weight

10979 to 12020 pounds

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

135 hp

Transmissions

24-speed two-speed power shift

Production years

2004-2006

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Basildon, EnglandReference

Original price was $64,400 in 2004Reference

Two- or four-wheel driveReference

Final drivesplanetary inboardReference

Differential lockelectro-hydraulic rearReference

Differential lockfrontReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

TS135Asimilar New Holland modelReference

Engine

Iveco 6.7L 6-cyl dieselReference

Fuel tank253.6 LReference

Engine (gross)100.7 kWReference

Drawbar (tested)70.4 kWReference

IvecoReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

Power (gross)100.7 kWReference

Fuel systemelectronic common railReference

Air cleanerdual element dryReference

Pre-heatinggrid heaterReference

Compression17.0:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power95.0 kWReference

Power at rated engine speed85.4 kWReference

Max power70.4 kWReference

Transmission

24-speed two-speed power shiftReference

16-speed four-speed power shiftReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Four gears (1-4) in three ranges (I-II-III) with low-high power shift. Gears and ranges are synchronized.Reference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Four gears (1-4) in four ranges (A-D). Power shift between gears. Auto Shift feature automatically matches shifts within selected range to match load.Reference

PTO & Hydraulics

PTO (claimed)85.8 kWReference

PTO (tested)95.0 kWReference

Typeclosed-center load sensingReference

Pressure215.0 barReference

Rear valves2 to 4Reference

Pump flow100.3 lpmReference

Total flow140.0 lpmReference

Steering flow39.7 lpmReference

Rear TypeIIIN/IIReference

Controlelectronic draft controlReference

Rear lift (at 24"/610mm)5527 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1969Reference

Engine RPM1000@2120Reference

Power at rated PTO speed89.6 kWReference

Dimensions

2WD Wheelbase265 cmReference

4WD Wheelbase265 cmReference

Weight10979 to 12020 poundsReference

Front tire10.00x16Reference

2WD Rear tire18.4R38Reference

2WD Standard tires (ag)Front: 10.00x16. Rear: 18.4R38Reference

4WD Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

2WD Shipping4980 kgReference

4WD Shipping5139 kgReference

4WD Operating5452 kgReference

CaseIH MXU135 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA1300Reference

Battery volts12Reference

CaseIH MXU135 Height

Cab289 cmReference

Cab296 cmReference

Exhaust291 cmReference

Test results

Diesel 16-speed 4WDJune 1 - August 1, 2004Link: OCED Tractor Test 2204 fileReference

PTO performanceReference

Fuel use27.3 l/hourReference

Drawbar performanceReference

Fuel use26.5 l/hourReference

Gear 7 used for power test.Reference

Max pull5332 kgReference

Gear 3 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
