Tractor · 2016Unverified

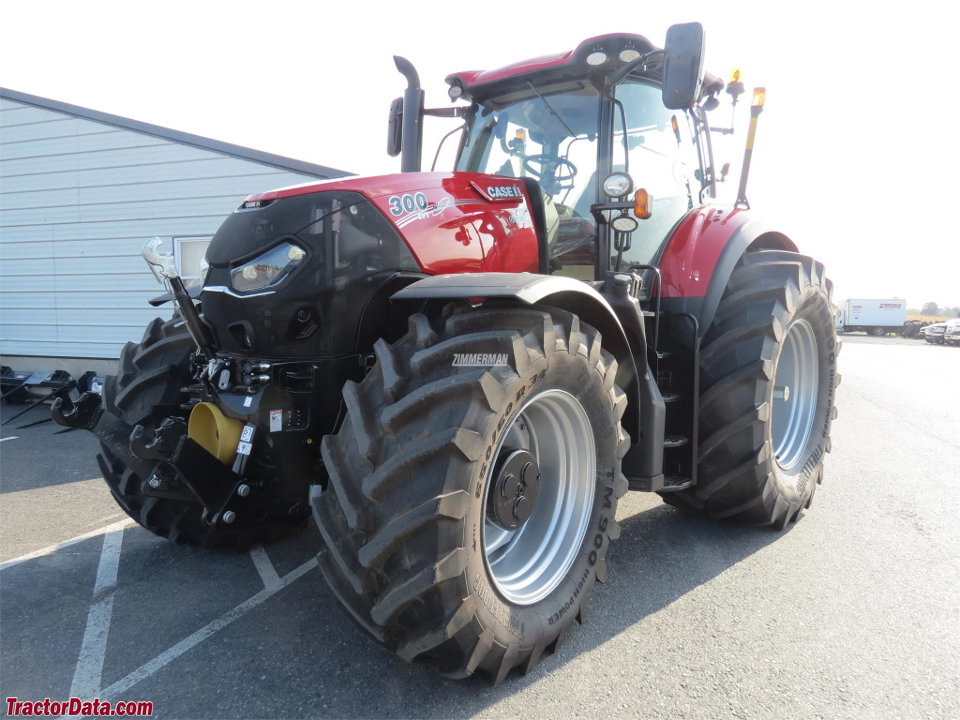

CaseIH Optum 300
CaseIH Optum 300 — Optum Series · 300 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
300 hp
Max power
216.8 kW
Weight
10500 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Row-Crop tractorReference
Built in St. Valentin, AustriaReference
Original price$283,215 (2016)Reference
Original price$490,556 (2026)Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
SurroundVision cab standard with air-conditioning. AccuGuideReference
Variants
T7.315similar New Holland modelReference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank628.3 LReference
Exhaust fluid (DEF)96.1 LReference
Engine (gross)223.7 kWReference
Engine (max)233.4 kWReference
Drawbar (tested)168.9 kWReference
FPTReference
electronic variable geometry turbocharged with air-to-air aftercooling dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)223.7 kWReference
Maximum Power (gross)233.4 kWReference
Fuel systemelectronic high pressure common rail direct injectionReference
Cooling systemviscous fanReference
Cooling systemreversible pitchReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power216.8 kWReference
Power at rated engine speed205.6 kWReference
Max power168.9 kWReference
Transmission
continuously variable transmission (CVT)Reference
TransmissionCVXDriveReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and infinite (2 range) reverse (4 range)Reference
PTO & Hydraulics
PTO (claimed)201.3 kWReference
PTO (tested)216.8 kWReference
Typeclosed center pressure flow compensating (PFC)Reference
Rear valves4 or 5Reference
Mid valves1 or 3Reference
Pump flow165.0 lpmReference
Pump flow219.5 lpmReference
SCV flow140.0 lpmReference
Rear TypeIIIReference
Rear TypeIVNReference
Controlelectronic draft controlReference
Rear lift (at 24"/610mm)8700 kgReference
Rear Armstelescopic link endsReference
Front lift4399 kgReference
DrawbarCat. 3Reference
Rear PTOindependentReference
Rear PTO Type540/540E/1000/1000E (1.375)Reference
Rear PTO Type1000/1000E (1.75)Reference
Front PTOindependentReference
Front PTO Type1000/1000E (1.375)Reference
Power at rated PTO speed214.3 kWReference
Dimensions
Wheelbase297 cmReference
Weight10500 kgReference
Front tire420/85R24Reference
Rear tire480/80R50Reference
Standard tires (ag)Front: 420/85R24. Rear: 480/80R50Reference
Length528 cmReference
Width302 cmReference
Height (cab)336 cmReference
Max weight16000 kgReference
Flange rear axleReference
Bar rear axle104 by 2489 mmReference
Bar rear axle104 by 2844 mmReference
Bar rear axle104 by 3022 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200Reference
Battery volts12Reference
Test results
Diesel CVT 4WDJune 2016 - July 2016, Link: OCED Tractor Test 2985 fileReference
PTO performanceReference
Fuel use56.0 l/hourReference
Fuel use54.1 l/hourReference
Fuel use55.6 l/hourReference
Drawbar performanceReference
Fuel use54.9 l/hourReference
Pull at 7.5 KPHReference
Max pull11063 kgReference
Pull at 6.0 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
