Tractor · 2001Unverified

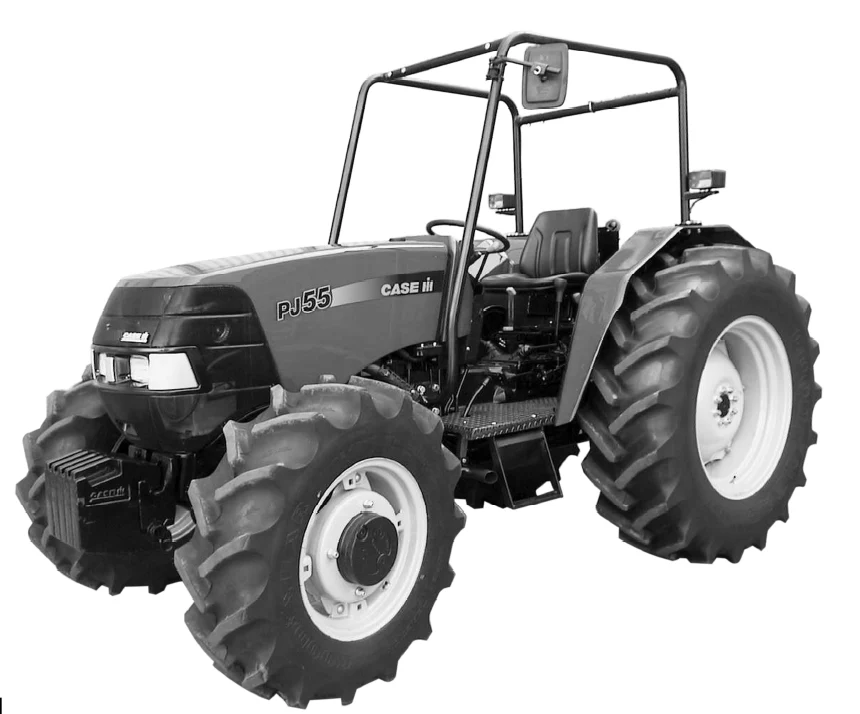

CaseIH PJ55

Name: CaseIH PJ55
Brand: CaseIH

CaseIH PJ55 — PJ Series · 55 hp. Reference specifications; pending source verification.

The CaseIH PJ55 is a tractor with a rated power output of approximately 55 horsepower, positioning it at the lower end of its class in terms of power. It was produced from 2001 to 2004. The tractor features a 3-cylinder diesel air-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its operating weight is listed at 2515 kg, and it is suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Weight

2515 kg

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

55 hp

Recorded weight

2515 kg

Transmissions

12-speed synchromesh

Production years

2001-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Four-post ROPS.Reference

Variants

PJ55utilityReference

PJN55orchardReference

PJV55vineyardReference

Engine

3.0L 3-cyl dieselReference

Fuel tank60.0 LReference

Engine41.0 kWReference

dieselReference

3-cylinderReference

air-cooledReference

Displacement3.0 LReference

EmissionsTier IReference

Power41.0 kWReference

Rated RPM2350Reference

Torque194.0 NmReference

Torque RPM1400Reference

Starter typeelectricReference

Transmission

12-speed synchromeshReference

24-speedReference

24-speed two-speed power shiftReference

TypesynchromeshReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

Typetwo-speed power shiftReference

PTO & Hydraulics

Valves3Reference

Pump flow39.4 lpmReference

Steering flow19.7 lpmReference

Rear TypeIReference

Controltop-link draft sensingReference

Rear lift (at ends)2399 kgReference

Rear PTOindependentReference

Dimensions

2WD Wheelbase198 cmReference

4WD Wheelbase209 cmReference

Weight2515 kgReference

Rear tire380/70R28Reference

Ag rear380/70R28Reference

2WD Length368 cmReference

4WD Length367 cmReference

Width177 cmReference

Height (ROPS)213 cmReference

4WD Weight2515 kgReference

Ground clearance28 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
