Tractor · 2001Unverified

CaseIH PJV75

Name: CaseIH PJV75
Brand: CaseIH

CaseIH PJV75 — PJ Series · 75 hp. Reference specifications; pending source verification.

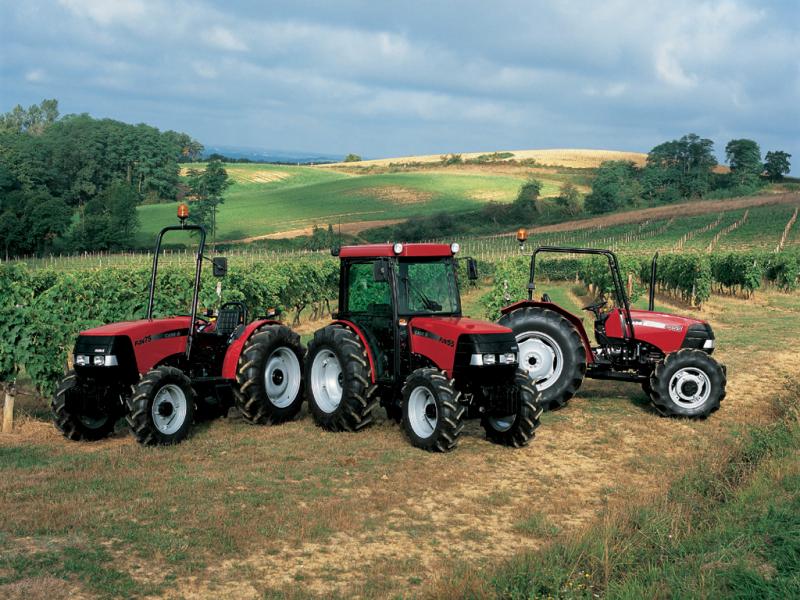

The CaseIH PJV75 is a tractor model with a rating of 75 horsepower, a typical power output for its class. It was produced from 2001 to 2004. The PJV75 is equipped with a 4-cylinder diesel air-cooled engine and a four-wheel drive system with a hydrostatic transmission. Its operating weight is listed within the range of 4982 to 5357 pounds, making it suitable for areas up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

75 hp

Weight

4982 to 5357 pounds

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

75 hp

Recorded weight

2429 kg

Transmissions

12-speed synchromesh

Production years

2001-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Four-post ROPS. Cab optional with air-conditioning.Reference

Variants

PJ75utilityReference

PJN75orchardReference

PJV75vineyardReference

Engine

4.0L 4-cyl dieselReference

Fuel tank60.0 LReference

Engine55.9 kWReference

dieselReference

4-cylinderReference

air-cooledReference

Displacement4.0 LReference

EmissionsTier IReference

Power55.9 kWReference

Rated RPM2350Reference

Torque276.1 NmReference

Torque RPM1400Reference

Starter typeelectricReference

Transmission

12-speed synchromeshReference

24-speedReference

24-speed two-speed power shiftReference

TypesynchromeshReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

Typetwo-speed power shiftReference

PTO & Hydraulics

Valves4Reference

Pump flow39.4 lpmReference

Pump flow64.3 lpmReference

Steering flow19.7 lpmReference

Rear TypeIReference

Controltop-link draft sensingReference

Rear lift (at ends)2399 kgReference

Rear PTOindependentReference

Dimensions

2WD Wheelbase211 cmReference

4WD Wheelbase207 cmReference

Weight4982 to 5357 poundsReference

Rear tire360/70R24Reference

Ag rear360/70R24Reference

Length385 cmReference

2WD Width106 cmReference

4WD Width109 cmReference

Height (ROPS)237 cmReference

Height (cab)210 cmReference

4WD Cab Weight2429 kgReference

4WD ROPS Weight2259 kgReference

Ground clearance23 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
