Tractor · 2008Unverified

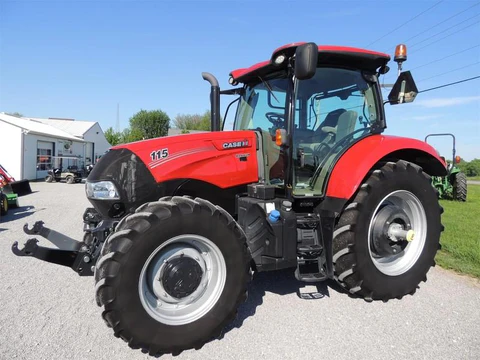

CaseIH Puma 115
CaseIH Puma 115 — Puma Series · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Max power
85.2 kW
Weight
6001 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Basildon, EnglandReference
Original price was $91,819 in 2010Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
Cab standard with air-conditioning. Optional suspended cab.Reference
Engine
CNH 6.7L 6-cyl dieselReference
Engine (gross)85.8 kWReference
Drawbar (tested)55.4 kWReference
CNHReference
turbocharged air-to-air aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power (gross)85.8 kWReference
Fuel systemelectronic high-pressure common railReference
Cooling systemviscous fanReference
Air cleanerdual paper elementsReference
Compression17.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity15.1 LReference
Max power85.2 kWReference
Power at rated engine speed76.2 kWReference
Max power55.4 kWReference
Transmission
18-speed partial power shiftReference
19-speedReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
Clutchhydraulic wet discReference
Six power-shift gears in three ranges.Reference
Transmissionpowershift with EconoGearReference
Gears19 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
PTO (tested)85.2 kWReference
Hydraulic system74.2 LReference
Typeclosed center pressure flow compensated (PFC)Reference
Capacity74.2 LReference
Valves2 to 4Reference
Pump flow100.3 lpmReference
Total flow165.4 lpmReference
Steering flow64.3 lpmReference
Rear Type2/3NReference
Controlelectronic draft controlReference
Rear lift5527 kgReference
Rear lift6893 kgReference
Rear Armsflexible link ends with telescopic stabilizerReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed81.6 kWReference
Capacities
Fuel299.0 LReference
Dimensions
Wheelbase273 cmReference
Wheelbase278 cmReference
Weight6001 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Height (cab)300 cmReference
Operating weight6001 kgReference
Flange rear axleReference
Bar rear axle92 by 2489 mmReference
Bar rear axle92 by 2844 mmReference
Front tread156 to 226 cmReference
CaseIH Puma 115 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery CCA960Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 2008 - December 2008, Link: OCED Tractor Test 2480 fileReference
PTO performanceReference
Fuel use25.0 l/hourReference
Fuel use24.2 l/hourReference
Fuel use24.6 l/hourReference
Drawbar performanceReference
Fuel use23.5 l/hourReference
Gear 2-Medium used for power test.Reference
Max pull5515 kgReference
Gear 1-Low used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
