Tractor · 2008Unverified

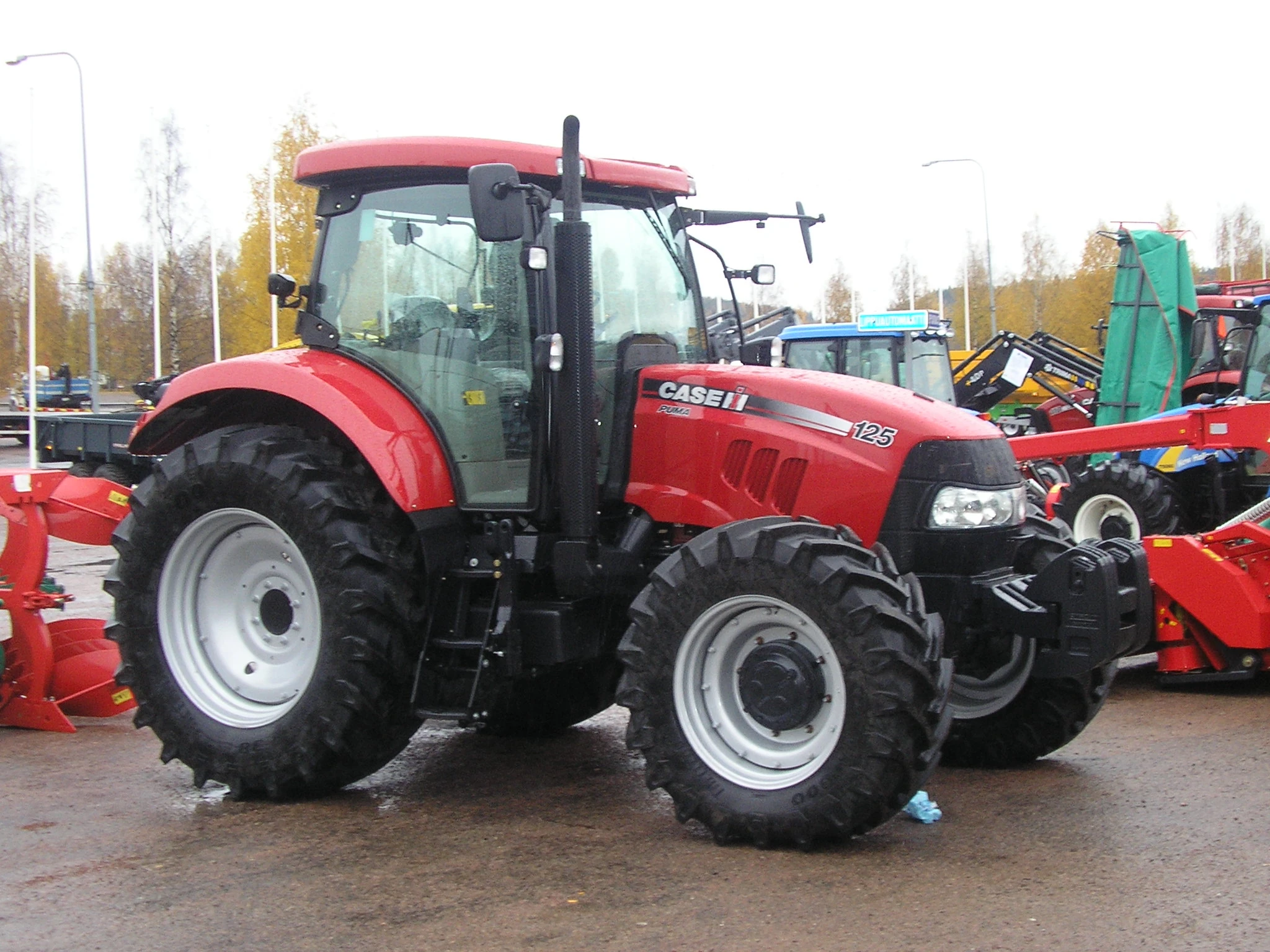

CaseIH Puma 125

Name: CaseIH Puma 125
Brand: CaseIH

CaseIH Puma 125 — Puma Series · 125 hp. Reference specifications; pending source verification.

The CaseIH Puma 125 is a tractor with a rated power of 125 hp, placing it at the more powerful end of its class. It was manufactured from 2008 to 2011. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The operating weight of the CaseIH Puma 125 is listed as 13230 to 13260 pounds, and it is suited for operations ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

125 hp

Max power

92.9 kW

Weight

13230 to 13260 pounds

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

125 hp

Recorded weight

6001 kg

Transmissions

18-speed partial power shift

Production years

2008-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Basildon, EnglandReference

Original price was $97,115 in 2010Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Differential hydraulic wet disc brakesReference

Trailer brakeshydraulic optionalReference

Cab standard with air-conditioning. Optional suspended cab.Reference

Engine

CNH 6.7L 6-cyl dieselReference

Engine (gross)93.2 kWReference

Drawbar (tested)65.7 kWReference

CNHReference

turbocharged air-to-air aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 3Reference

Power (gross)93.2 kWReference

Fuel systemelectronic high-pressure common railReference

Cooling systemviscous fanReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity15.1 LReference

Max power92.9 kWReference

Power at rated engine speed84.3 kWReference

Max power65.7 kWReference

Transmission

18-speed partial power shiftReference

19-speedReference

Typepartial power shiftReference

Gears18 forward and 6 reverseReference

Clutchhydraulic wet discReference

Six power-shift gears in three ranges.Reference

Transmissionpowershift with EconoGearReference

Gears19 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

PTO (tested)92.9 kWReference

Hydraulic system74.2 LReference

Typeclosed center pressure flow compensated (PFC)Reference

Capacity74.2 LReference

Valves2 to 4Reference

Pump flow100.3 lpmReference

Total flow165.4 lpmReference

Steering flow64.3 lpmReference

Rear Type2/3NReference

Controlelectronic draft controlReference

Rear lift5527 kgReference

Rear lift6893 kgReference

Rear Armsflexible link ends with telescopic stabilizerReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed89.1 kWReference

Capacities

Fuel299.0 LReference

Fuel283.9 LReference

Dimensions

Wheelbase273 cmReference

Wheelbase278 cmReference

Weight13230 to 13260 poundsReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

Height (cab)300 cmReference

Shipping weight6001 kgReference

Operating weight6014 kgReference

Flange rear axleReference

Bar rear axle92 by 2489 mmReference

Bar rear axle92 by 2844 mmReference

Front tread156 to 226 cmReference

CaseIH Puma 125 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging amps150Reference

Charging amps200Reference

Battery CCA960Reference

Battery volts12Reference

Test results

Diesel 18-speed 4WDSeptember 2008 - December 2008, Link: OCED Tractor Test 670 fileReference

PTO performanceReference

Fuel use26.9 l/hourReference

Fuel use25.7 l/hourReference

Fuel use26.5 l/hourReference

Drawbar performanceReference

Fuel use26.1 l/hourReference

Gear 2-Medium used for power test.Reference

Max pull5479 kgReference

Gear 1-Low used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
