Tractor · 2011Unverified
CaseIH Puma 145
CaseIH Puma 145 — Puma Series · 146 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
146 hp
Max power
111.7 kW
Weight
6509 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Four-wheel driveReference
Cab standard. Optional cab suspension.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Engine (gross)108.9 kWReference
Engine (max)140.2 kWReference
Drawbar (tested)84.9 kWReference
FPTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)108.9 kWReference
Maximum Power (gross)140.2 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Max power111.7 kWReference
Power at rated engine speed103.0 kWReference
Max power84.9 kWReference
Transmission
18-speed full power shiftReference
19-speed full power shiftReference
continuously variable transmission (CVT)Reference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
TransmissionEconoGearReference
Gears19 forward and 6 reverseReference
Adds transport gear to the power shift, providing road speed at reduced engine RPMs.Reference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
PTO (tested)111.7 kWReference
Hydraulic system73.8 LReference
Typeclosed center pressure flow compensating (PFC)Reference
Capacity73.8 LReference
Rear valves3 to 4 (mechanical)Reference
Rear valves3 to 5 (electronic)Reference
Pump flow109.8 lpmReference
Pump flow121.1 lpmReference
Rear Type2/3NReference
Rear lift3583 kgReference
Rear lift4173 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed108.5 kWReference
Capacities
Fuel268.7 LReference
Fuel325.5 LReference
Exhaust fluid (DEF)48.1 LReference
Dimensions
Wheelbase273 cmReference
Wheelbase278 cmReference
Weight6509 kgReference
Operating weight6509 kgReference
Flange rear axleReference
Bar rear axle92 by 2489 mmReference
Bar rear axle92 by 2844 mmReference
Front tread155 to 225 cmReference

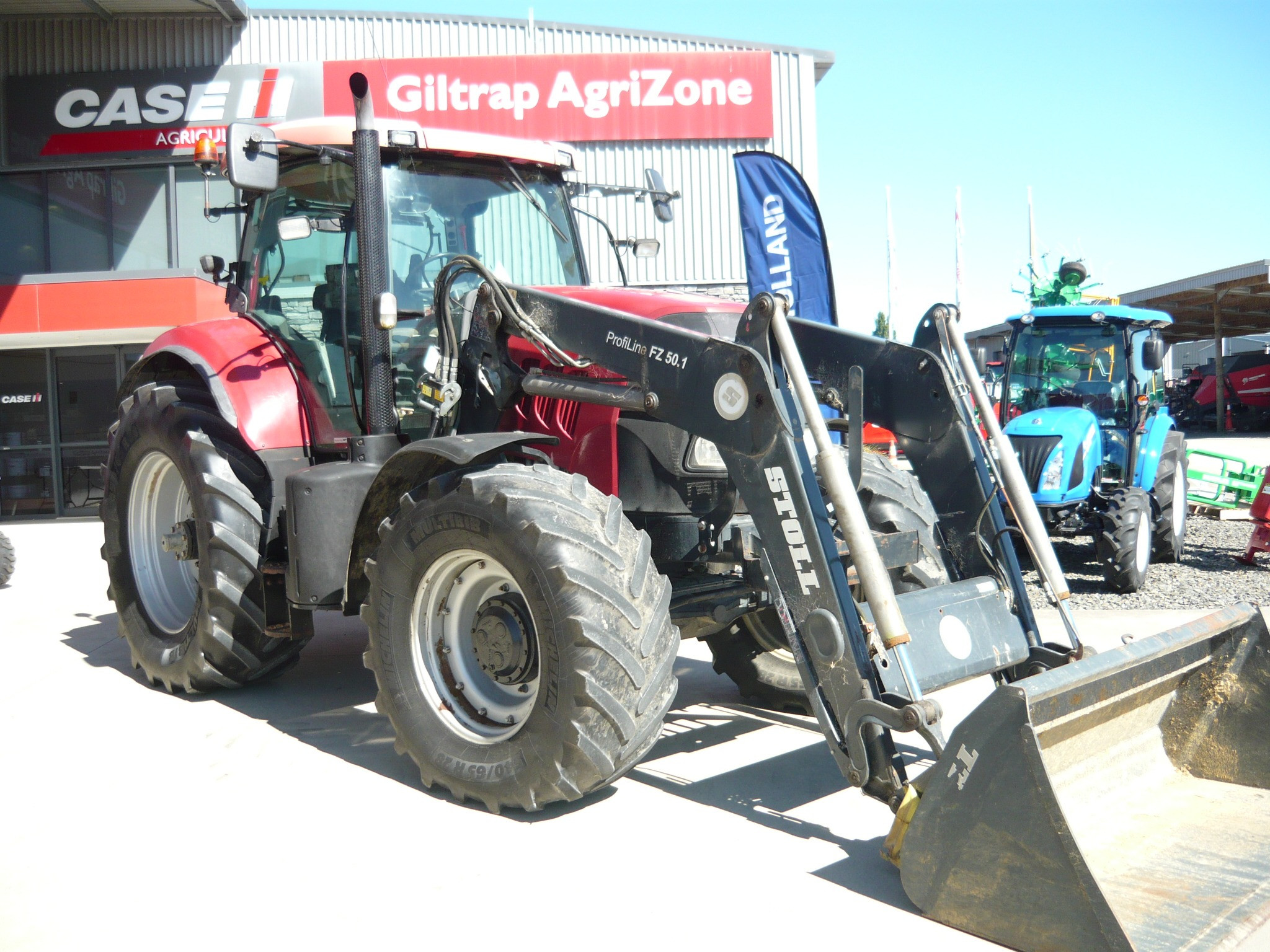

CaseIH Puma 145 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200Reference
Batteries2Reference
Battery CCA650Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDMay 2011 - June 2011, Link: OCED Tractor Test 2648 fileReference
PTO performanceReference
Fuel use29.5 l/hourReference
Fuel use28.8 l/hourReference
Fuel use29.1 l/hourReference
Drawbar performanceReference
Gear 3M used for power test.Reference
Max pull6139 kgReference
Gear 6L used for pull test.Reference
Speeds
The CVT is available with optional 50 km-h top speed.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
