Tractor · 2014Unverified

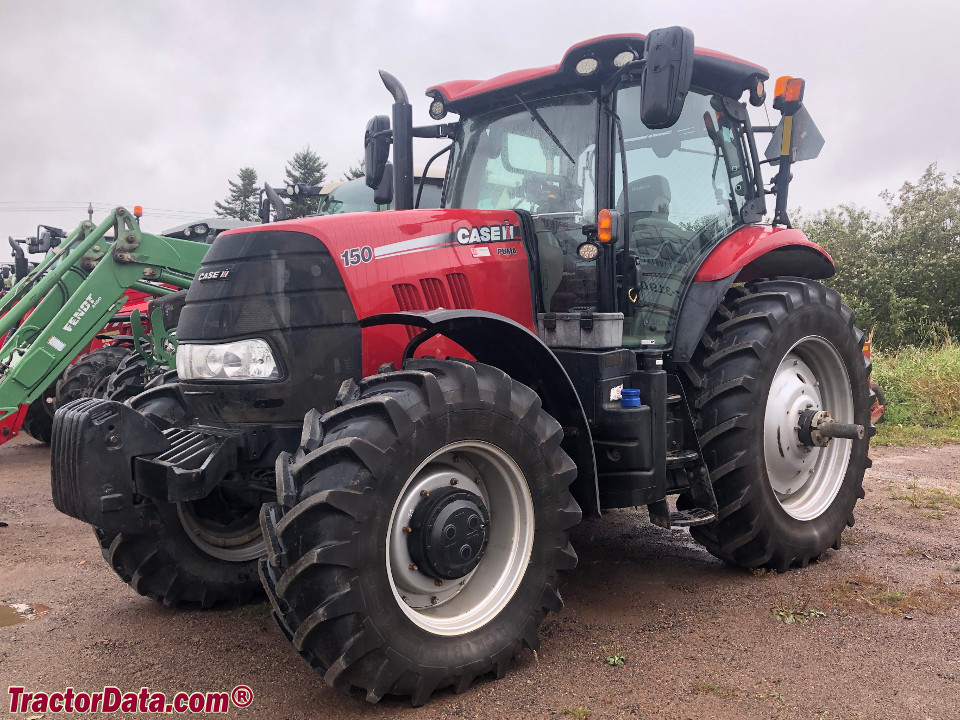

CaseIH Puma 150
CaseIH Puma 150 — Model year 2014-20202021-2025 · 126 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
126 hp
Max power
105.6 kW
Weight
13900 to 14500 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Original price$136,669 (2014 power shift )Reference
Original price$144,426 (2014 CVT )Reference
Original price$155,110 (2015 CVT )Reference
Original price$146,129 (2015 power shift )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank268.7 LReference
Fuel tank325.5 LReference
Exhaust fluid (DEF)48.1 LReference
Engine111.9 kWReference
Drawbar (tested)75.4 kWReference
Power shift6305 kgReference
FPTReference
turbocharged with air-to-air aftercooling dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power111.9 kWReference
Maximum Power141.7 kWReference
Fuel systemelectronic common railReference
Cooling systemviscous fanReference
Cooling systemreversibleReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power105.6 kWReference
Power at rated engine speed93.7 kWReference
Max power75.4 kWReference
Transmission
18-speed full power shiftReference
continuously variable transmission (CVT)Reference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
PTO (tested)105.6 kWReference
Typeclosed center pressure flow compensatingReference
Valves3 to 5Reference
Pump flow100.3 lpmReference
Total flow164.6 lpmReference
Steering flow64.3 lpmReference
Rear TypeIIReference
Rear TypeIII/IIReference
Rear lift3583 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000/1000E (1.75)Reference
Power at rated PTO speed102.6 kWReference
Dimensions
Wheelbase273 cmReference
Wheelbase278 cmReference
Weight13900 to 14500 poundsReference
Front tire380/85R30Reference
Rear tire460/85R42Reference
Standard tires (ag)Front: 380/85R30. Rear: 460/85R42Reference
Height (cab)300 cmReference
Flange rear axleReference
Bar rear axle2489 mmReference
Bar rear axle2844 mmReference
CVT6577 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Battery volts12Reference
Capacities
Max capacity11000 kgReference
Test results
Diesel CVT 4WDJune 2015 - October 2016, Link: OCED Tractor Test 2970 fileReference
PTO performanceReference
Fuel use29.5 l/hourReference
Fuel use28.8 l/hourReference
Drawbar performanceReference
Pull at 9.89 KPHReference
Max pull6452 kgReference
Pull at 4.91 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
