Tractor · 2011Unverified

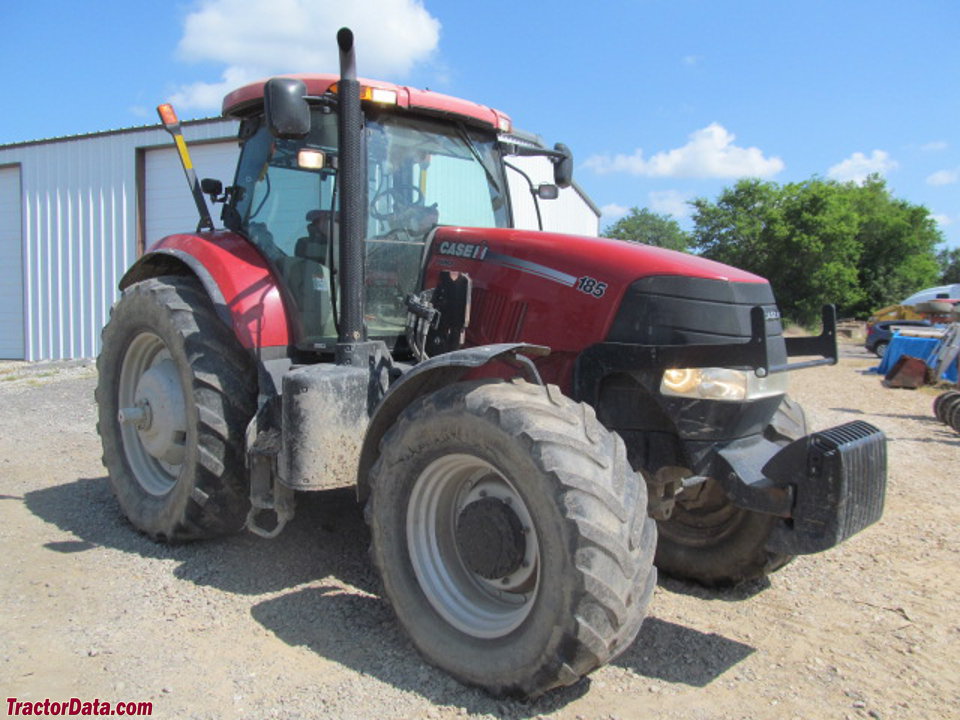

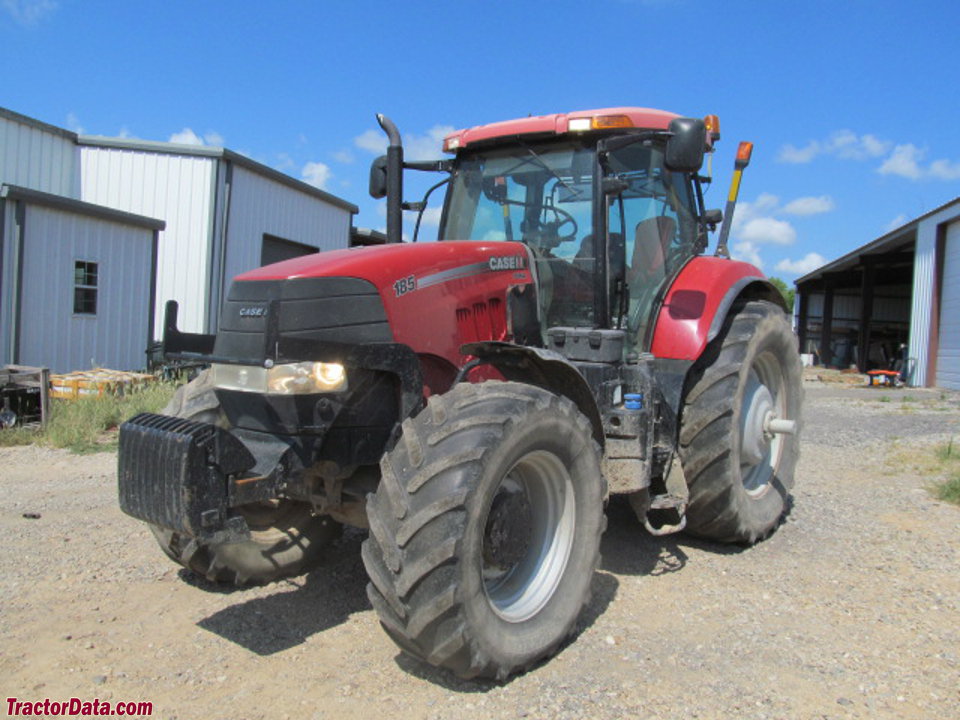

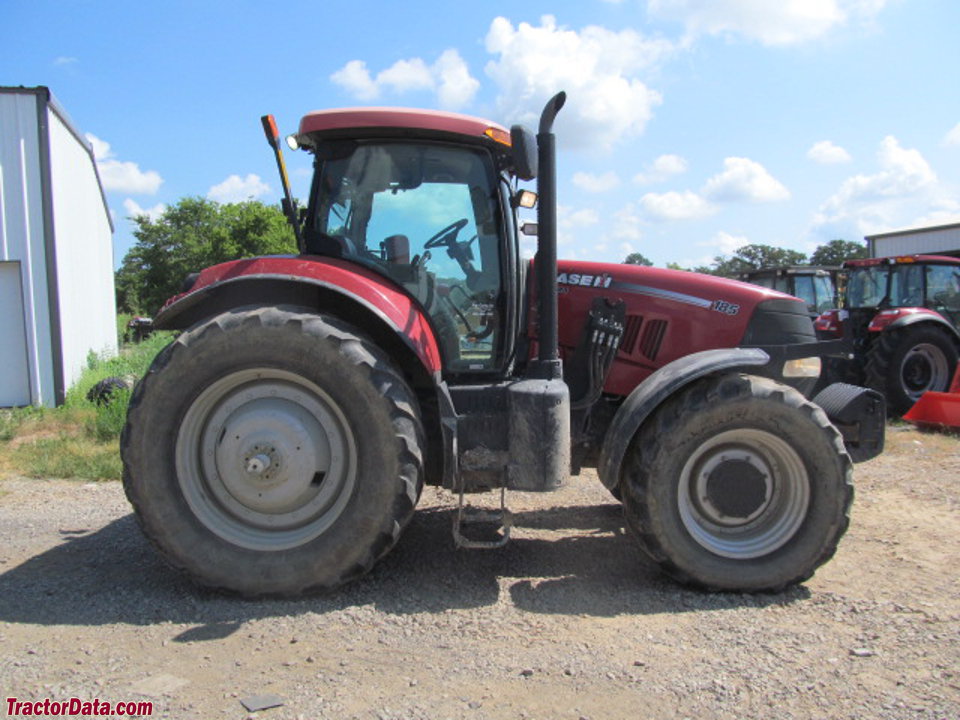

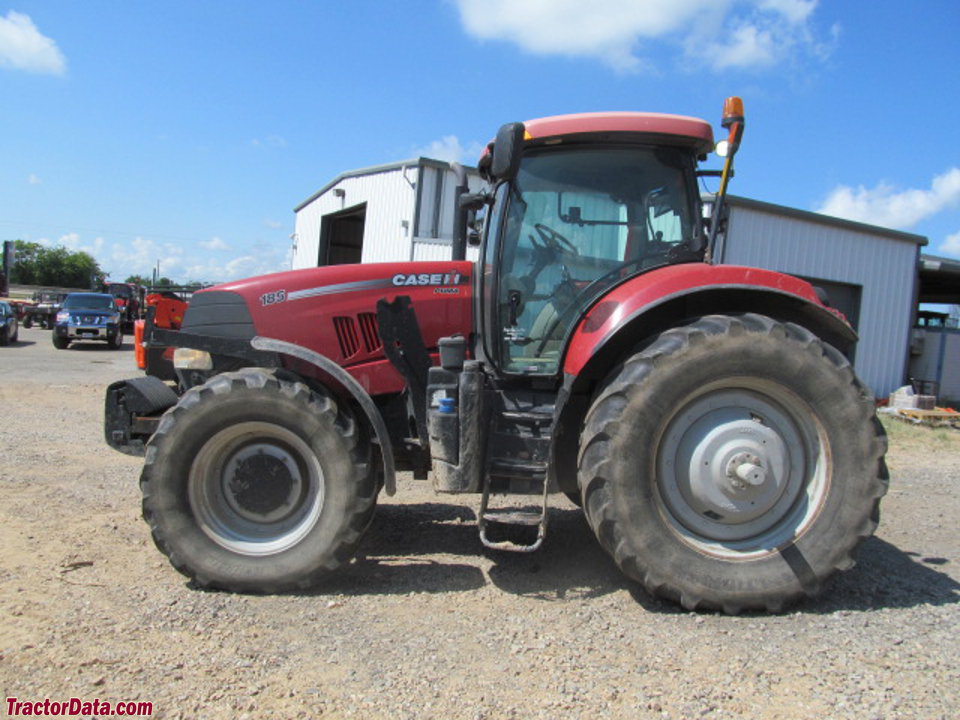

CaseIH Puma 185
CaseIH Puma 185 — Model year 2011-20132014-20202021-2025 · 185 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
185 hp
Max power
139.8 kW
Weight
8226 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Cab standard. Optional cab suspension.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Engine (gross)138.0 kWReference
Engine (max)174.5 kWReference
FPTReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)138.0 kWReference
Maximum Power (gross)174.5 kWReference
Air cleanerdual paper elementsReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Max power139.8 kWReference
Power at rated engine speed123.4 kWReference
Transmission
18-speed full power shiftReference
19-speed full power shiftReference
continuously variable transmission (CVT)Reference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
TransmissionEconoGearReference
Gears19 forward and 6 reverseReference
Adds transport gear to the power shift, providing road speed at reduced engine RPMs.Reference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)115.6 kWReference
PTO (tested)139.8 kWReference
Hydraulic system83.3 LReference
Typeclosed center pressure flow compensating (PFC)Reference
Capacity83.3 LReference
Rear valves3 to 4 (mechanical)Reference
Rear valves3 to 5 (electronic)Reference
Pump flow121.1 lpmReference
Pump flow132.5 lpmReference
Pump flow151.4 lpmReference
Total flow185.5 lpmReference
Total flow196.8 lpmReference
Total flow215.7 lpmReference
Steering flow64.3 lpmReference
Rear Type2/3NReference
Rear lift4626 kgReference
Rear lift6078 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.75)Reference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type1000/1000EReference
Power at rated PTO speed138.0 kWReference
Capacities
Fuel393.6 LReference
Exhaust fluid (DEF)50.0 LReference
Dimensions
Wheelbase288 cmReference
Weight8226 kgReference
Operating weight8226 kgReference
Bar rear axle104 by 2844 mmReference
Bar rear axle104 by 2489 mmReference
Bar rear axle104 by 3022 mmReference
Front tread152 to 223 cmReference
CaseIH Puma 185 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200Reference
Battery CCA1300Reference
Battery volts12Reference
Attachment overview
Case IH L760 loaderReference
Case IH L770 loaderReference
Test results
Diesel 19-speed 4WDDecember 2010 - April 2011, Link: OCED Tractor Test 2613 fileReference
PTO performanceReference
Fuel use36.3 l/hourReference
Fuel use34.8 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
