Tractor · 2007Unverified

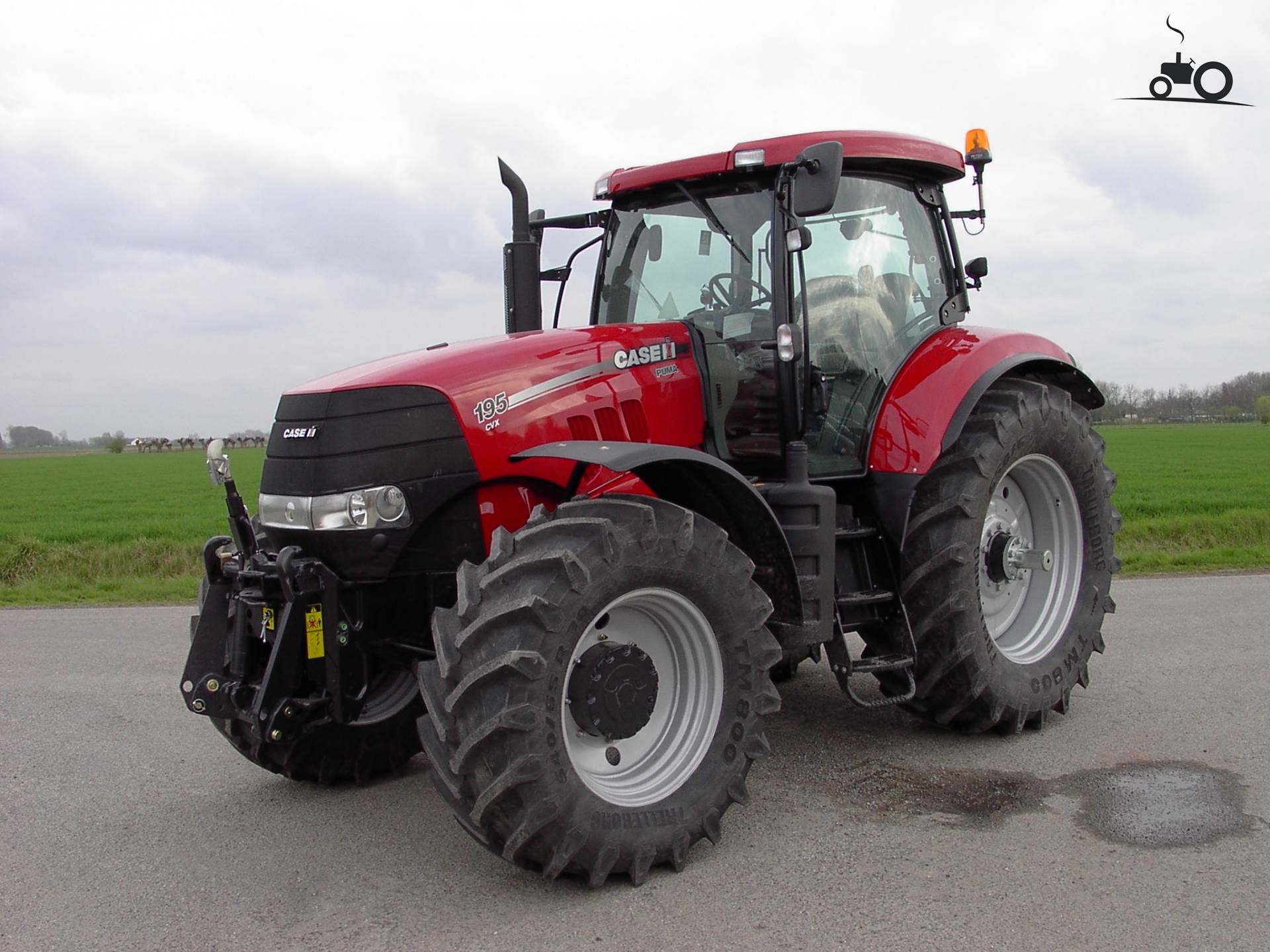

CaseIH Puma 195

Name: CaseIH Puma 195
Brand: CaseIH

CaseIH Puma 195 — Puma Series · 171 hp. Reference specifications; pending source verification.

The CaseIH Puma 195 is a tractor model with a rated output of 171 hp, categorising it among the more powerful machines in its class. The model was manufactured from 2007 to 2010. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers the mechanical front-wheel drive via a continuously variable transmission. The listed weight of the Puma 195 ranges from 15708 to 17635 pounds, and it is suited to tasks covering approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

171 hp

Max power

141.2 kW

Weight

15708 to 17635 pounds

Catalogue coverage

Variants represented

Richest spec table

97 rows

Recorded power

171 hp

Recorded weight

7125 kg

Transmissions

17-speed full power shift

Production years

2007-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

FactoriesBasildon, EnglandReference

FactoriesSt. Valentin, AustriaReference

Original price$136,985 (2010)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Differential hydraulic wet disc brakesReference

Trailer brakeshydraulic optionalReference

Cab standard.Reference

Engine

CNH 6.7L 6-cyl dieselReference

Engine145.4 kWReference

CNHReference

intercooled turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 3Reference

Power145.4 kWReference

Fuel systemelectronic high-pressure common railReference

Cooling systemviscous fanReference

Air cleanerdual paper elements with aspiratorReference

Compression16.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity15.1 LReference

Max power141.2 kWReference

Power at rated engine speed127.7 kWReference

Transmission

17-speed full power shiftReference

18-speed full power shiftReference

19-speed full power shiftReference

continuously variable transmission (CVT)Reference

Typefull power shiftReference

Gears17 forward and 6 reverseReference

The 17-speed powershift transmission was standard on 2WD models.Reference

Gears18 forward and 6 reverseReference

On 4WD models the 18-speed transmission was standard equipment.Reference

TransmissionEconoGearReference

Gears19 forward and 6 reverseReference

Clutchelectro-hydraulic wet discReference

The 19-speed EconoGear transmission provides a transport gear that operates at reduced RPM.Reference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

CVT first available on the Puma 195 starting in late 2008Reference

PTO & Hydraulics

PTO (claimed)123.0 kWReference

PTO (tested)141.2 kWReference

Hydraulic system100.3 LReference

Typepressure flow compensating (PFC)Reference

Capacity100.3 LReference

Valves3 to 5Reference

Pump flow120.0 lpmReference

Pump flow149.9 lpmReference

Pump flow170.3 lpmReference

Total flow184.3 lpmReference

Total flow214.2 lpmReference

Total flow234.7 lpmReference

Steering flow64.3 lpmReference

Rear TypeII/IIINReference

Rear lift (at ends)5800 kgReference

Rear lift (at ends)7199 kgReference

Rear lift (at 24"/610mm)4944 kgReference

Rear lift (at 24"/610mm)6168 kgReference

Front HitchoptionalReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1-3/8)Reference

Rear PTO Type1000 (1-3/4)Reference

Rear PTO Type1000/1000E (with CVT)Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Power at rated PTO speed133.0 kWReference

Capacities

Fuel439.1 LReference

Fuel405.0 LReference

Dimensions

Wheelbase288 cmReference

Weight15708 to 17635 poundsReference

Front tire16.9R30Reference

Rear tire20.8R42Reference

Standard tires (ag)Front: 16.9R30. Rear: 20.8R42Reference

Height (cab)304 cmReference

Height (exhaust)311 cmReference

Shipping weight7125 kgReference

Operating weight7999 kgReference

Rear axle104 by 2844 mmReference

Rear axle104 by 2489 mmReference

Rear axle104 by 3022 mmReference

CaseIH Puma 195 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Battery CCA1300Reference

Battery volts12Reference

Test results

Diesel 19-speed 4WDMay 2007 - June 2007, Link: OCED Tractor Test 2425 fileReference

PTO performanceReference

Fuel use41.3 l/hourReference

Fuel use41.6 l/hourReference

Speeds

19th gear at 1700 RPM.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
