Tractor · 2011Unverified

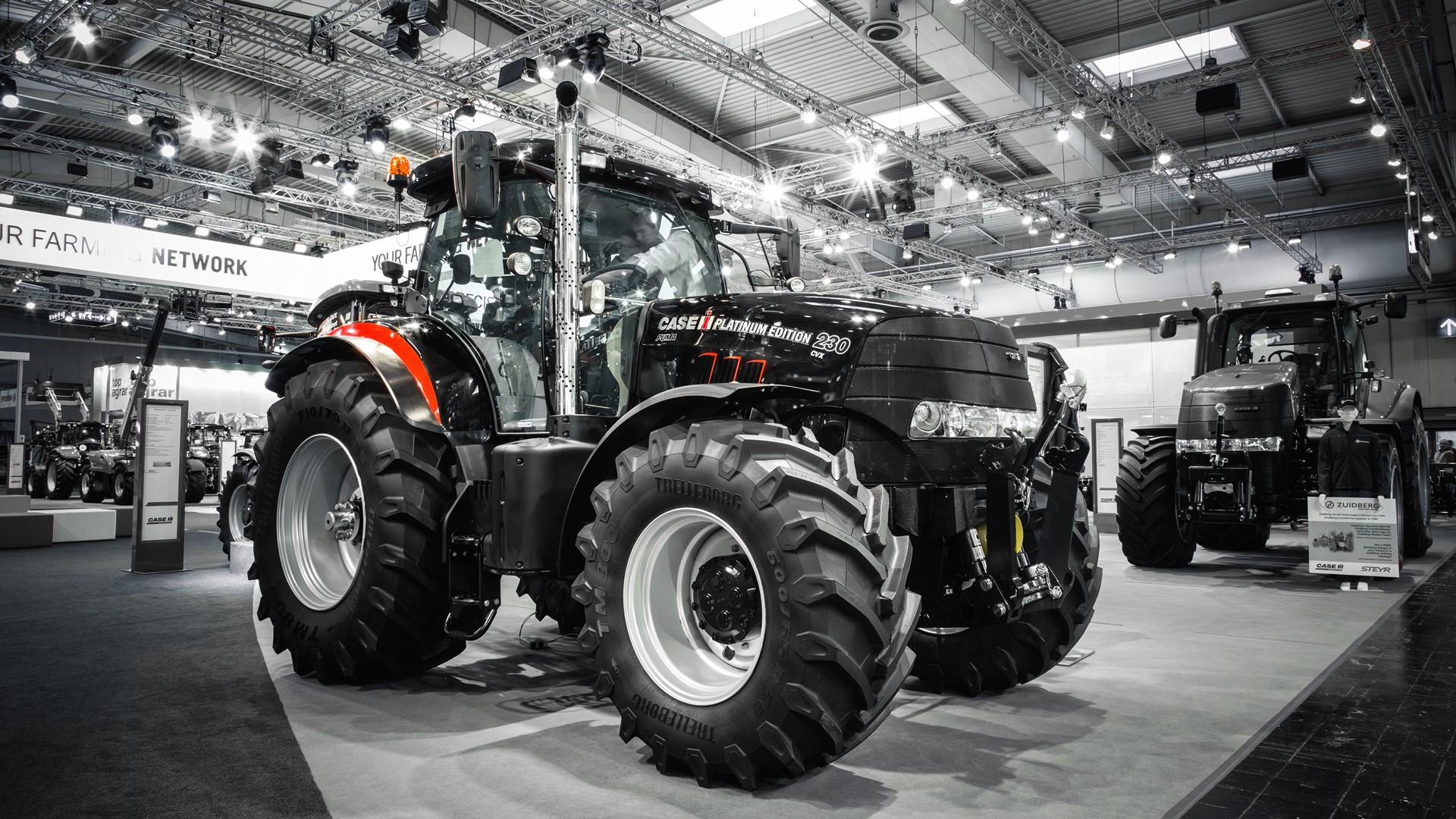

CaseIH Puma 230

CaseIH Puma 230 — Puma Series · 231 hp. Reference specifications; pending source verification.

The CaseIH Puma 230 is a tractor with a power rating of 231 horsepower, positioning it among the more powerful machines in its class. Manufactured between 2011 and 2013, the Puma 230 is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, driving all four wheels via a continuously variable transmission. The listed weight of the tractor is 8981 kilograms, and it is intended for use on farms with approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
231 hp
Max power
162.9 kW
Weight
8981 kg

Catalogue coverage

Variants represented
2
Richest spec table
79 rows
Recorded power
231 hp
Recorded weight
8981 kg
Transmissions
continuously variable transmission (CVT)
Production years
2011-2013
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Original price was $191,996 in 2013Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Cab standard. Optional cab suspension.Reference

Engine

FPT 6.7L 6-cyl dieselReference
Engine (gross)172.3 kWReference
Engine (max)200.6 kWReference
Drawbar (tested)123.2 kWReference
FPTReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)172.3 kWReference
Maximum Power (gross)200.6 kWReference
Air cleanerdual paper elementsReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Max power162.9 kWReference
Power at rated engine speed146.1 kWReference
Max power123.2 kWReference

Transmission

continuously variable transmission (CVT)Reference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)145.4 kWReference
PTO (tested)162.9 kWReference
Hydraulic system83.3 LReference
Typeclosed center pressure flow compensating (PFC)Reference
Capacity83.3 LReference
Rear valves3 to 5Reference
Pump flow132.5 lpmReference
Pump flow151.4 lpmReference
Total flow196.8 lpmReference
Total flow215.7 lpmReference
Steering flow64.3 lpmReference
Rear Type2/3NReference
Rear lift4626 kgReference
Rear lift6078 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type1000/1000EReference
Power at rated PTO speed160.0 kWReference

Capacities

Fuel393.6 LReference
Exhaust fluid (DEF)50.0 LReference

Dimensions

Wheelbase288 cmReference
Weight8981 kgReference
Operating weight8981 kgReference
Bar rear axle104 by 2844 mmReference
Bar rear axle104 by 2489 mmReference
Bar rear axle104 by 3022 mmReference
Front tread152 to 223 cmReference

CaseIH Puma 230 attachments

front-end loaderReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging amps200Reference
Battery CCA1300Reference
Battery volts12Reference

Attachment overview

Case IH L770 loaderReference
Case IH L780 loaderReference

Test results

Diesel CVT 4WDJanuary 2011 - May 2011, Link: OCED Tractor Test 2645 fileReference
PTO performanceReference
Fuel use43.9 l/hourReference
Fuel use42.0 l/hourReference
Fuel use43.5 l/hourReference
Drawbar performanceReference
Fuel use42.8 l/hourReference
Pull at 9.5 KPHReference
Max pull8278 kgReference
Pull at 5.0 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
