Tractor · 1998Unverified

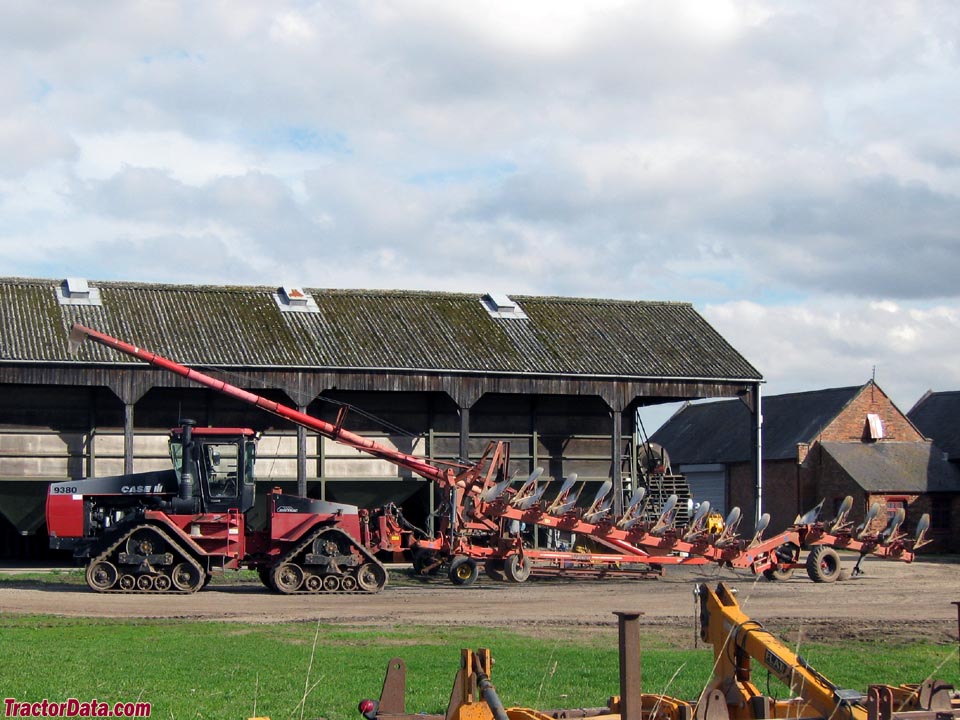

CaseIH Quadtrac 9380QT
CaseIH Quadtrac 9380QT — Articulated Crawler tractor · 356 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
356 hp
Weight
19958 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Articulated Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $207,000 in 1999Reference
DrivecrawlerReference
Articulated power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
9380wheeled tractorReference
9380QTQuadtrac crawlerReference
Engine
Cummins 14.0L 6-cyl dieselReference
Fuel tank946.2 LReference
Engine298.3 kWReference
Cummins N14Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power298.3 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)265.5 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves4Reference
Pump flow102.2 lpmReference
Steering flow117.3 lpmReference
Rear TypeIVReference
Rear lift (at 24"/610mm)7711 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase375 cmReference
Weight19958 kgReference
30-inch tracksReference
Width304 cmReference
Height (cab)356 cmReference
Front axle101 mmReference
Bar rear axle101 mmReference
9380QT Serial Number Location
Left-side front fender next to steps.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps125Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
CaseIH 9380QT Tracks
Width76 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
