Tractor · 2008Unverified

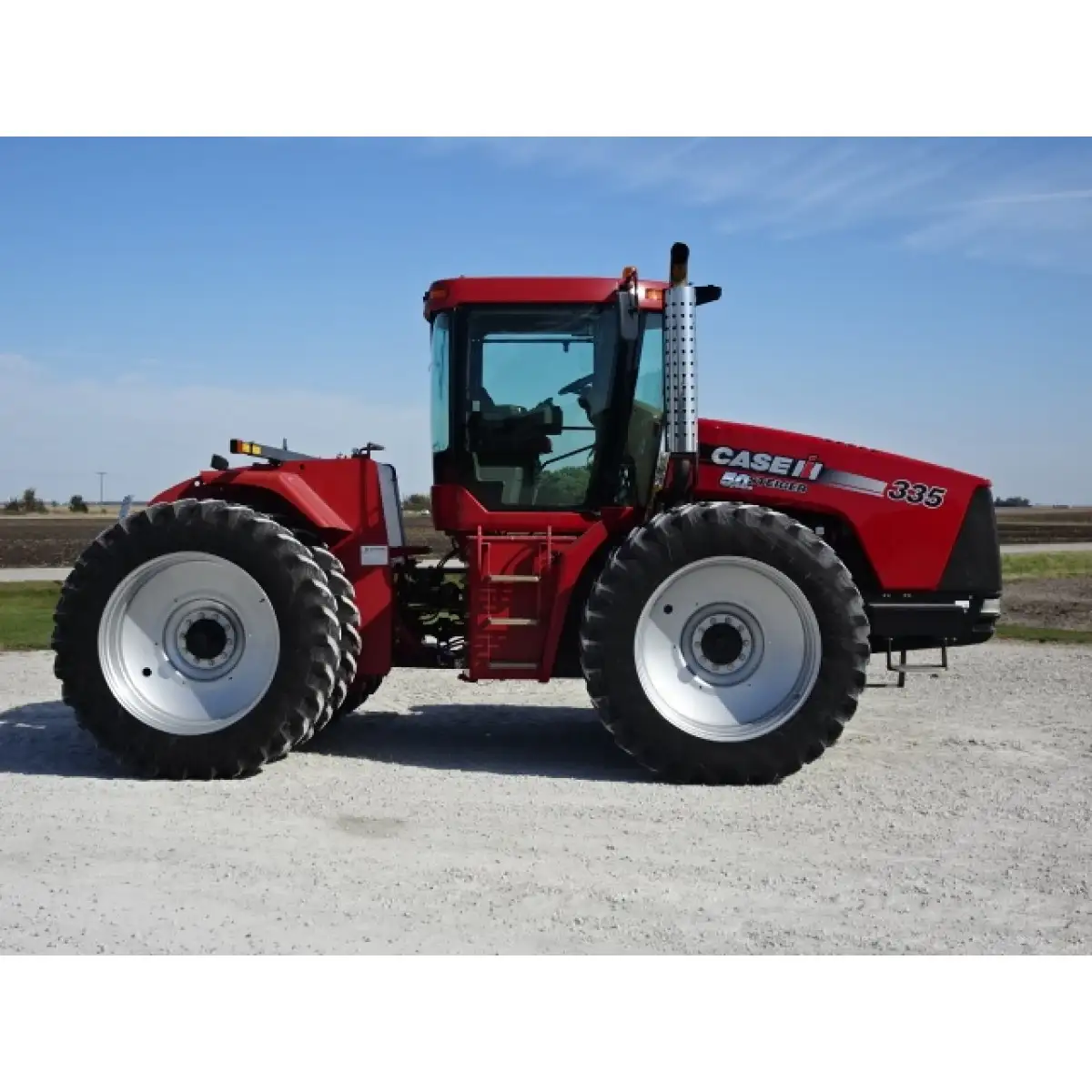

CaseIH Steiger 335
CaseIH Steiger 335 — Four-wheel Drive (4WD) tractor · 286 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
286 hp
Max power
241.1 kW
Weight
29760 to 32120 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price$212,829 (2010)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Integrated electro-hydraulic wet disc brakesReference
Cab standard with heat and A/C, optional Luxury cabReference
Engine
CNH 8.9L 6-cyl dieselReference
Fuel tank757.0 LReference
Engine249.8 kWReference
Drawbar (tested)192.9 kWReference
CNHReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.9 LReference
Bore/Stroke114 x 145 mmReference
EmissionsTier 3Reference
Power249.8 kWReference
Maximum Power274.4 kWReference
Air cleanerdual paper elementsReference
Compression16.6:1Reference
Rated RPM2000Reference
Starter volts24Reference
Oil capacity27.6 LReference
Max power241.1 kWReference
Power at rated engine speed213.1 kWReference
Max power192.9 kWReference
Transmission
16-speed full power shiftReference
24-speedReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)203.6 kWReference
PTO (tested)241.1 kWReference
Typeparallel pressure flow compensated (PFC)Reference
Valves4 to 5Reference
Valves4 to 9 (without 3-point hitch)Reference
Pump flow151.4 lpmReference
Pump flow208.2 lpmReference
Pump flow340.7 lpmReference
Rear Type4N/3Reference
Rear lift (at 24"/610mm)7107 kgReference
Rear PTOindependent optionalReference
Rear PTO Type1000Reference
Dimensions
Wheelbase353 cmReference
Weight29760 to 32120 poundsReference
Front tire20.8R42Reference
Rear tire20.8R42Reference
Ag front20.8R42Reference
Ag rear20.8R42Reference
Width92 cmReference
Front axle101 mmReference
Rear axle101 mmReference
Shipping13499 kgReference
Operating14569 kgReference
Steiger 335 Serial Number Location
Serial number on the left side of the tractor, behind the step.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Capacities
Max capacity17690 kgReference
Test results
Diesel 16-speed 4WDSeptember 19 - October 22, 2007Link: OCED Tractor Test 1907 fileReference
PTO performanceReference
Fuel use68.1 l/hourReference
Fuel use64.3 l/hourReference
Drawbar performanceReference
Fuel use64.0 l/hourReference
Gear 5 used for power test.Reference
Max pull14150 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
