Tractor · 2011Unverified

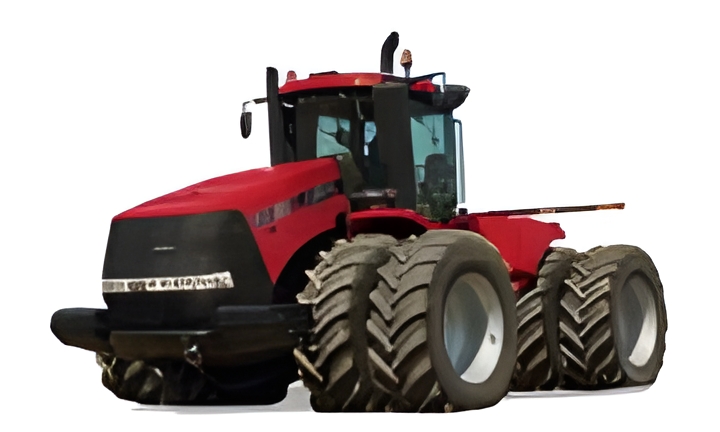

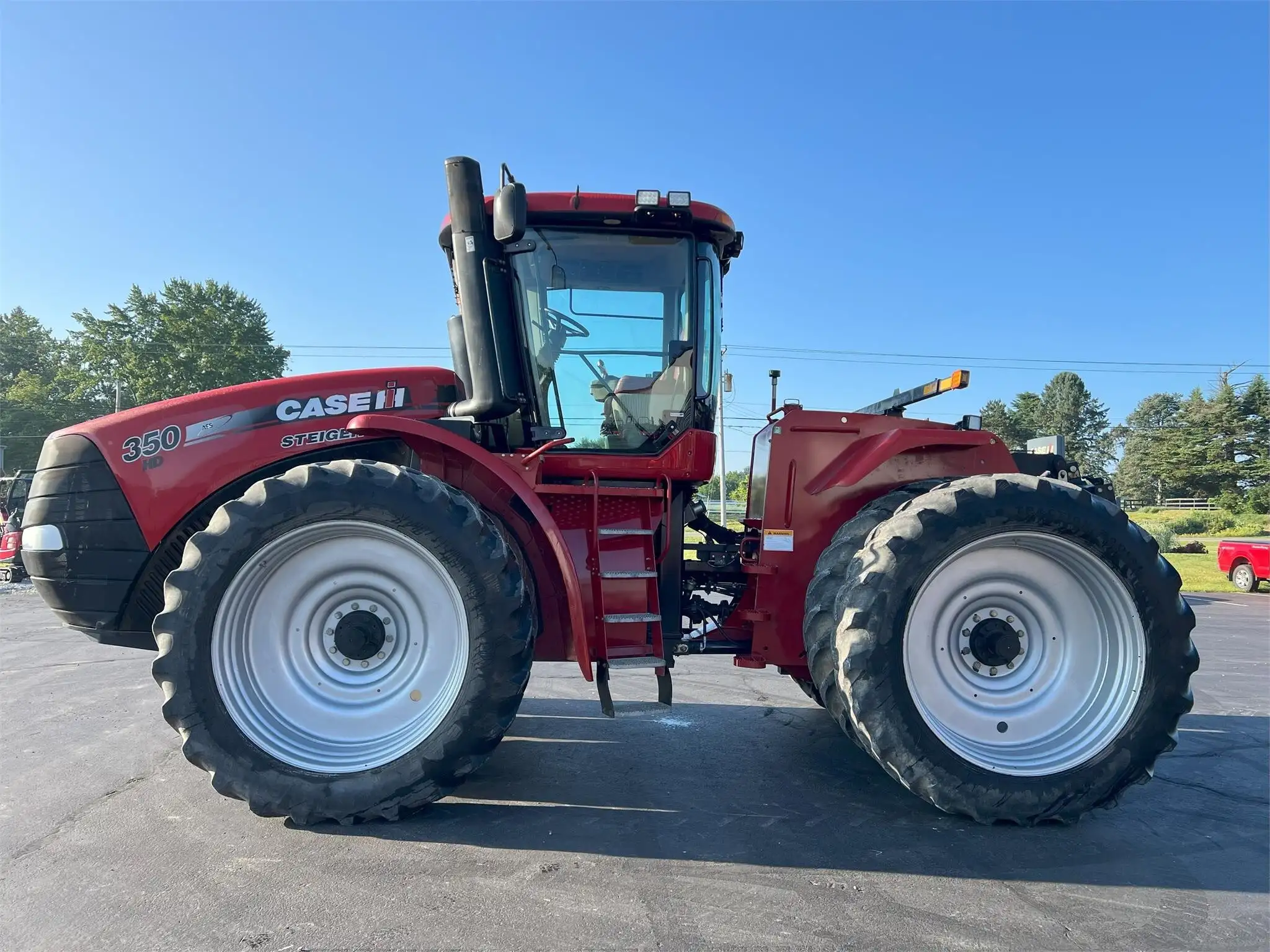

CaseIH Steiger 350
CaseIH Steiger 350 — Four-wheel Drive (4WD) tractor · 385 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
385 hp
Max power
254.4 kW
Weight
16260 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Surveyor cab standard.Reference
Engine
8.7L 6-cyl dieselReference
Fuel tank832.7 LReference
Exhaust fluid (DEF)174.1 LReference
Engine261.0 kWReference
Engine (max)287.1 kWReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.7 LReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power261.0 kWReference
Maximum Power287.1 kWReference
Rated RPM2000Reference
Starter typeelectricReference
Max power254.4 kWReference
Power at rated engine speed229.5 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discsReference
PTO & Hydraulics
PTO (claimed)216.3 kWReference
PTO (tested)254.4 kWReference
Typepressure flow compensating (PFC)Reference
Rear valves4 to 8Reference
Pump flow132.5 lpmReference
Total flow151.4 lpmReference
Total flow208.2 lpmReference
Total flow408.8 lpmReference
Rear Type4NReference
Rear lift9072 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1-3/4)Reference
Power at rated PTO speed229.5 kWReference
Dimensions
Wheelbase375 cmReference
Weight16260 kgReference
Weight16260 kgReference
Ballasted weight19051 kgReference
Rear axle114 by 3048 mmReference
Rear axle127 by 3048 mmReference
Steiger 350 Serial Numbers
Location:Serial number plate on the front left tractor fender, near the steps.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDNovember 9 - 15, 2011Link: OCED Tractor Test 2008 fileReference
PTO performanceReference
Fuel use66.6 l/hourReference
Fuel use62.1 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
