Tractor · 2013Unverified

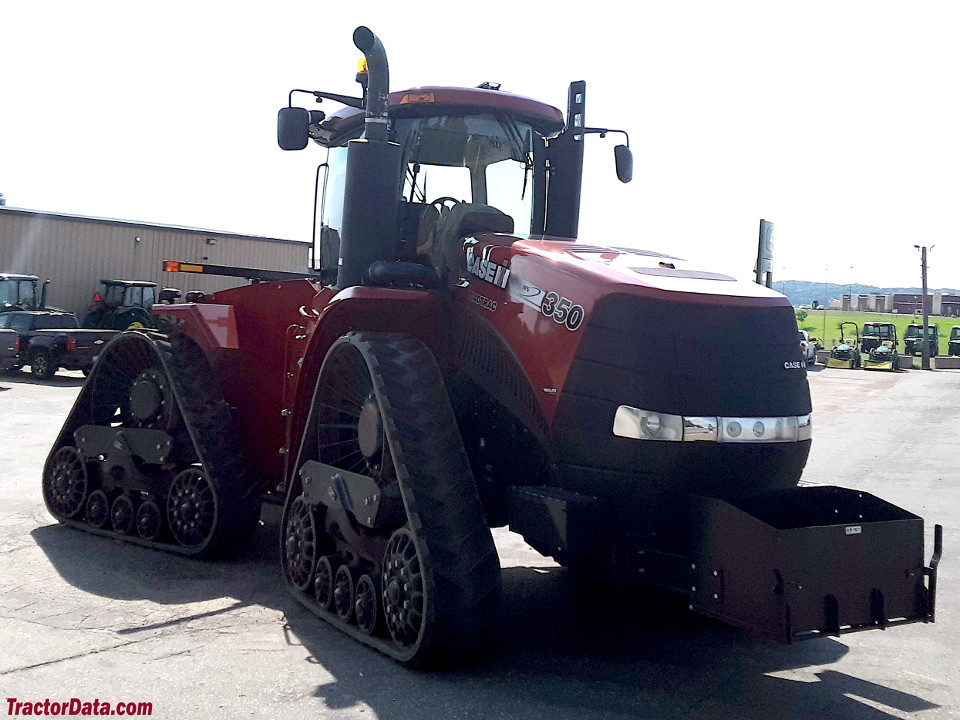

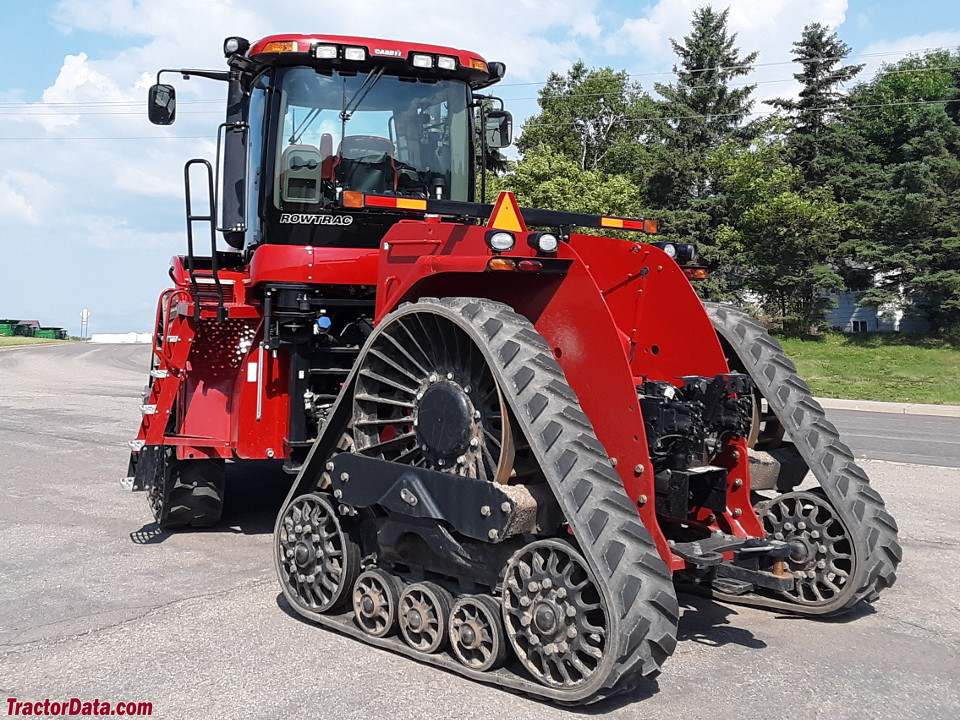

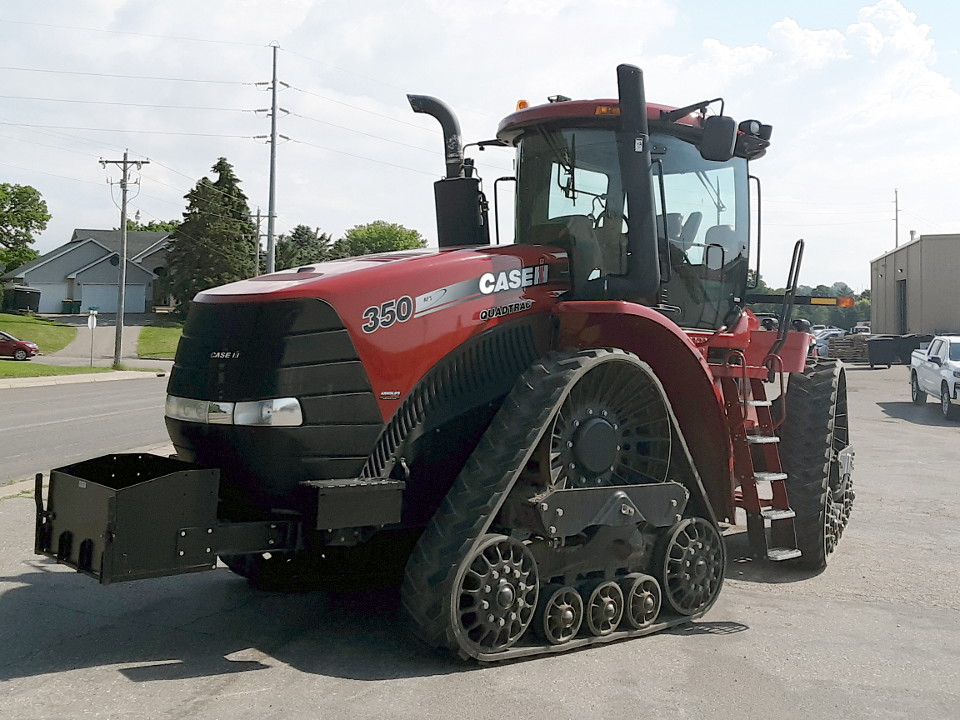

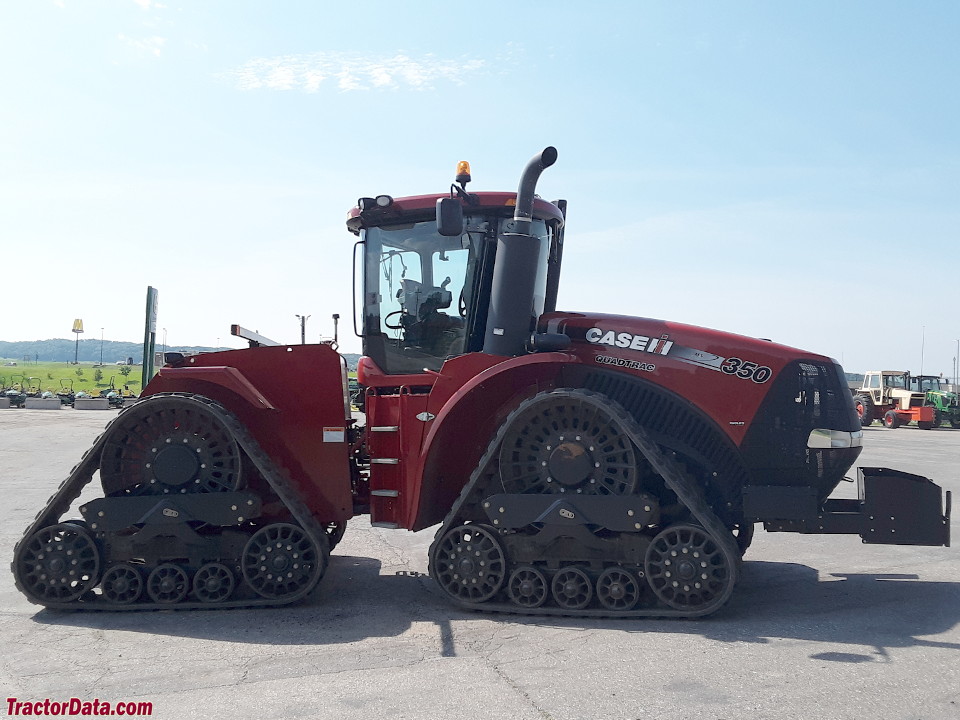

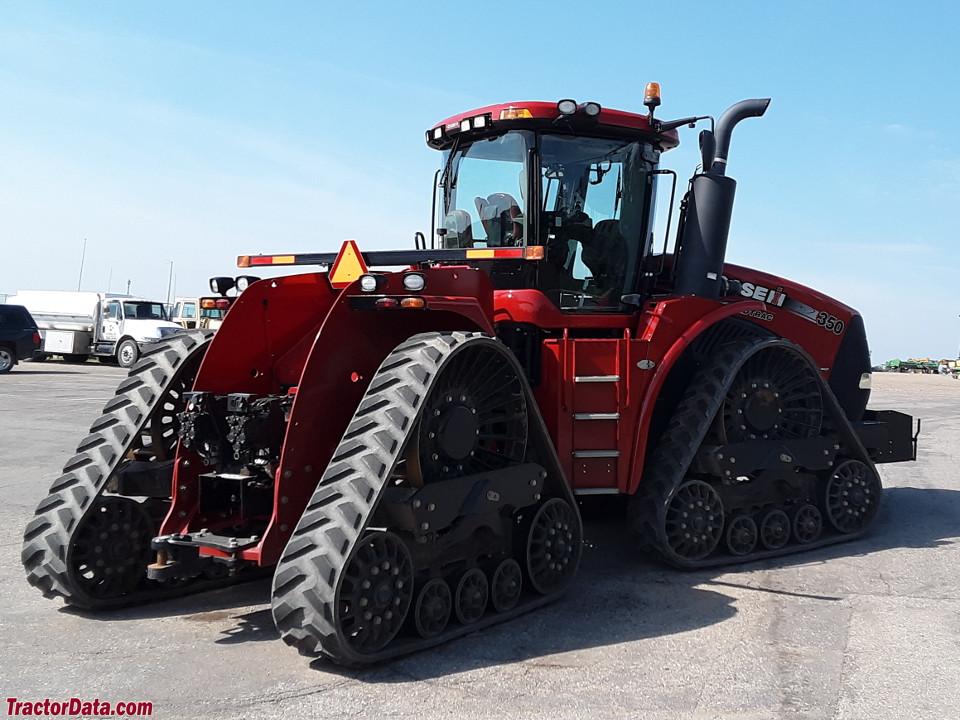

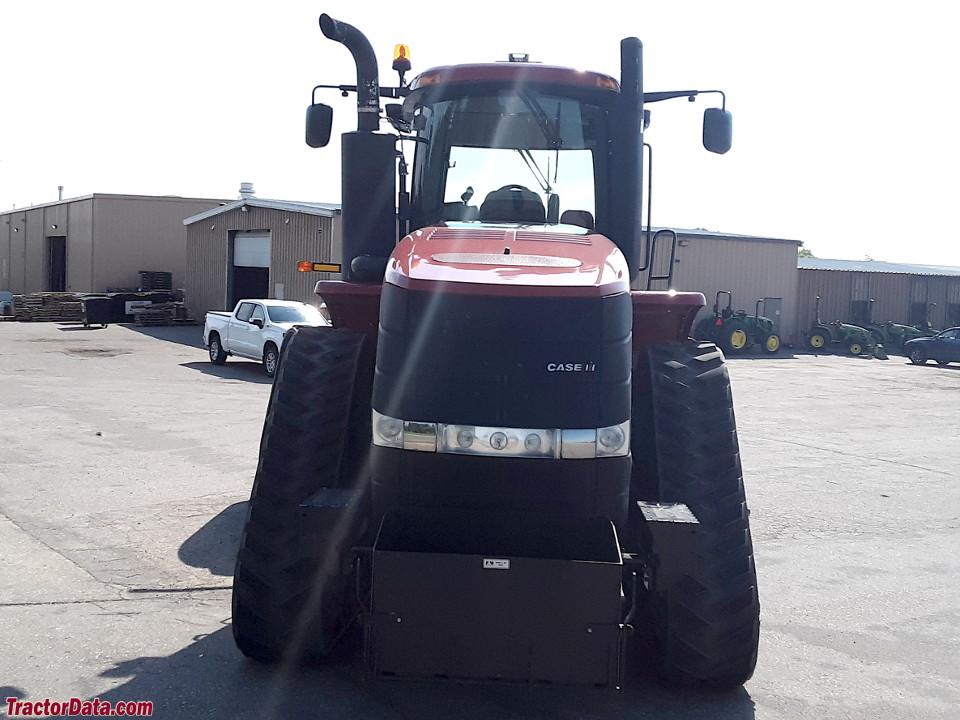

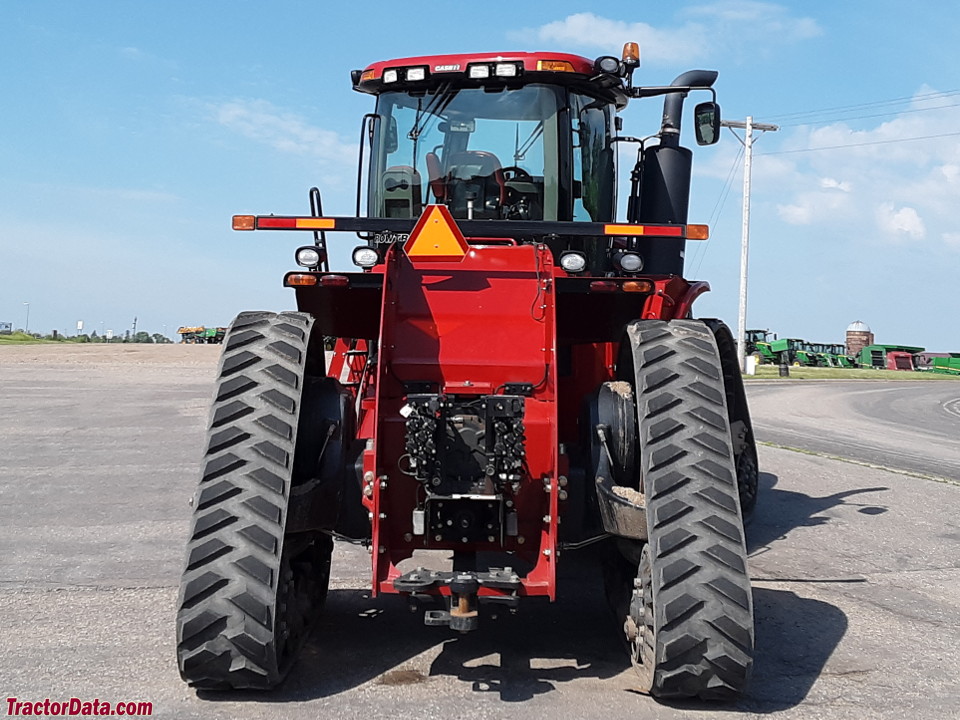

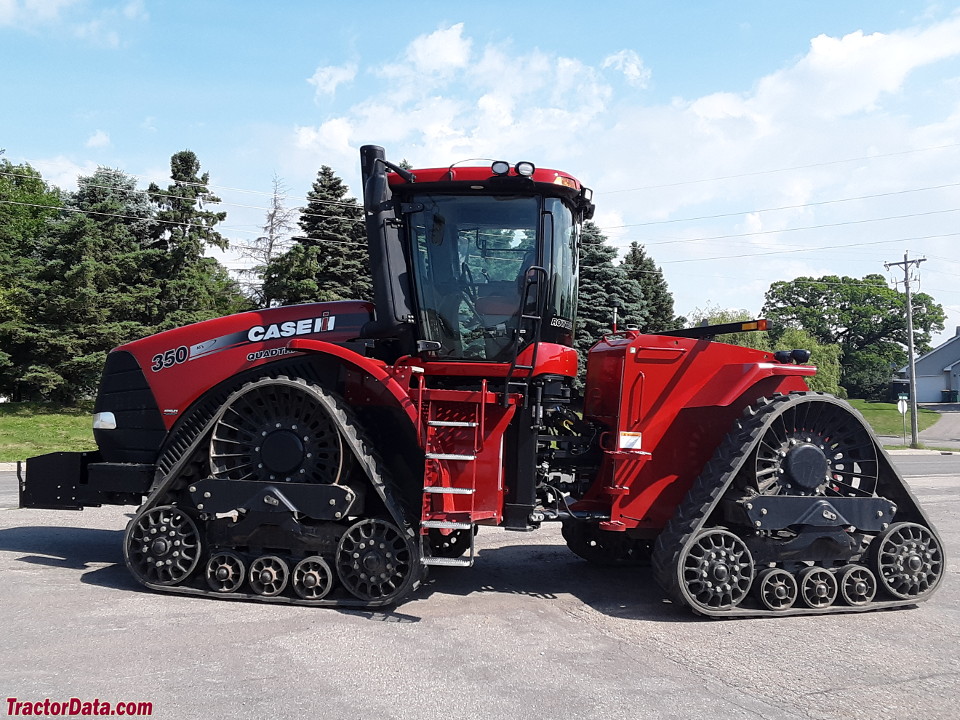

CaseIH Steiger 350 Rowtrac
CaseIH Steiger 350 Rowtrac — Steiger Rowtrac Series · 306 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
306 hp
Max power
258.3 kW
Weight
50800 to 51905 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Agricultural Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $344,973 in 2013Reference
Drivearticulated crawlerReference
Final drivesinboard planetaryReference
Wet disc brakesReference
Surveyor Cab standard with air-conditioning.Reference
Engine
FPT 8.7L 6-cyl dieselReference
Fuel tank946.2 LReference
Exhaust fluid (DEF)174.1 LReference
Engine261.0 kWReference
Drawbar (tested)194.7 kWReference
FPTReference
turbocharged air-to-air aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power261.0 kWReference
Maximum Power287.1 kWReference
Fuel systemelectronic high pressure common railReference
Cooling systemviscous fanReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Max power258.3 kWReference
Power at rated engine speed228.5 kWReference
Max power194.7 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)216.3 kWReference
PTO (tested)258.3 kWReference
Typepressure flow compensatedReference
Rear valves4 to 8Reference
Rear valves5Reference
Pump flow151.4 lpmReference
Pump flow208.2 lpmReference
Pump flow408.8 lpmReference
SCV flow132.5 lpmReference
Rear TypeIVNReference
Rear TypeIIINReference
Controllower link draft sensingReference
Rear lift (at 24"/610mm)9072 kgReference
Rear ArmsfixedReference
DrawbarCategory 4, SwingingReference
Rear PTOindependentReference
Rear PTO Type1000 (1.375)Reference
Power at rated PTO speed228.5 kWReference
Dimensions
Wheelbase406 cmReference
Weight50800 to 51905 poundsReference
16-inch tracksReference
Length800 cmReference
Min Width243 cmReference
Max Width365 cmReference
Height (cab)384 cmReference
Front axle114 mmReference
Flange rear axle114 mmReference
23042 kgReference
Operating23544 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Battery volts12Reference
CaseIH Steiger 350 Rowtrac Tracks
Width40 cmReference
Width45 cmReference
Width60 cmReference
Capacities
Max capacity25787 kgReference
Test results
Diesel 16-speed crawlerSeptember 16 - 24, 2013Link: OCED Tractor Test 2069 fileReference
PTO performanceReference
Fuel use68.1 l/hourReference
Fuel use62.5 l/hourReference
Drawbar performanceReference
Fuel use62.8 l/hourReference
Gear 4 used for power test.Reference
Max pull15982 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
