Tractor · 2014Unverified

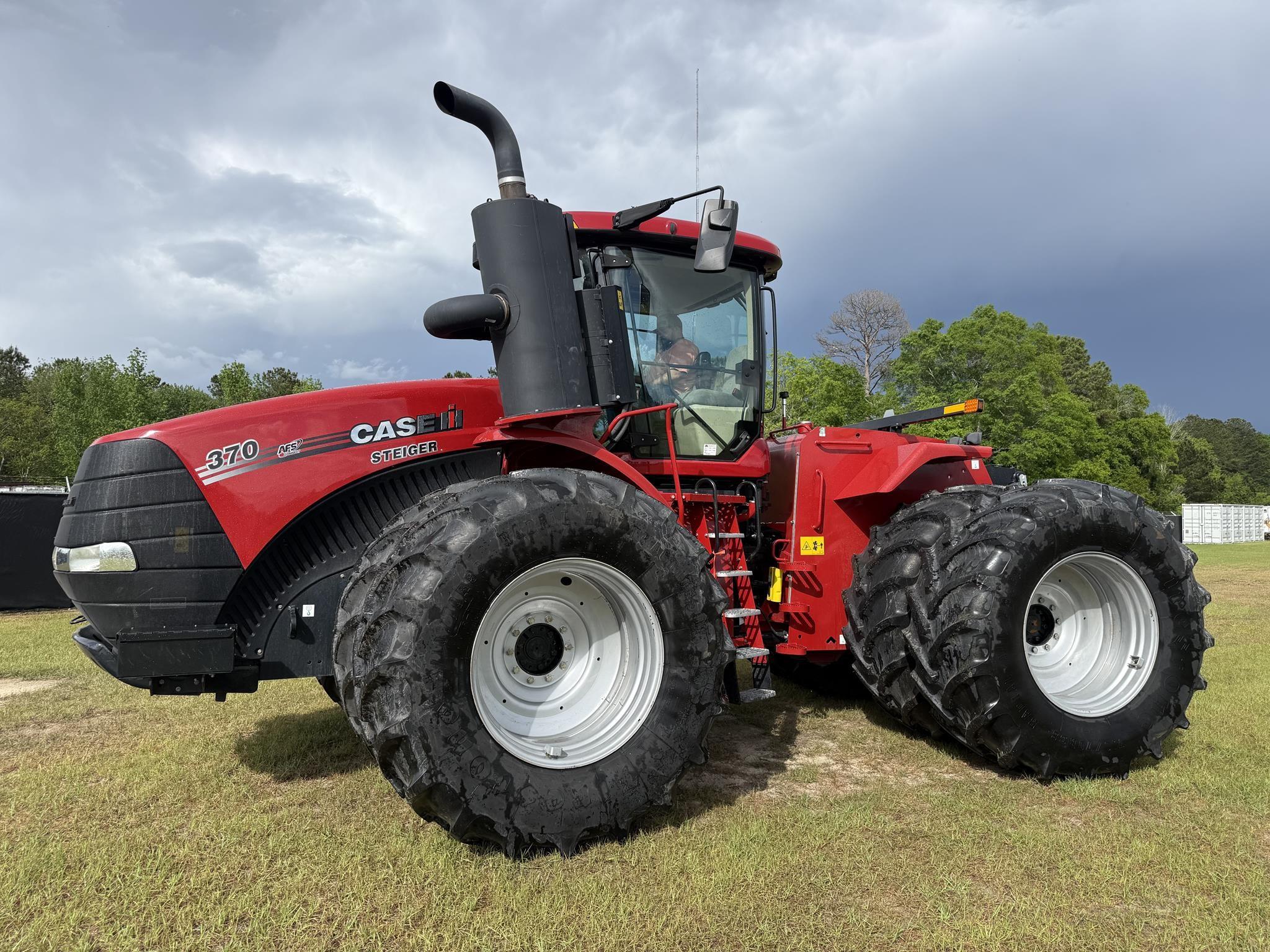

CaseIH Steiger 370
CaseIH Steiger 370 — Steiger 4WD Series · 323 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
323 hp
Max power
273.3 kW
Weight
38469 to 38759 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $314,043 in 2015Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydraulic articulatedReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Surveyor Cab standard with air-conditioning.Reference
Variants
370wheeled tractorReference
370RTcrawler tractorReference
T9.435similar New Holland modelReference
Engine
FPT 8.7L 6-cyl dieselReference
Engine275.9 kWReference
Drawbar (tested)224.4 kWReference
FPTReference
variable-geometry turbocharger air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power275.9 kWReference
Maximum Power302.0 kWReference
Fuel systemelectronic high pressure common railReference
Cooling systemviscous fan driveReference
Air cleanertwo stage dryReference
Compression15.9:1Reference
Rated RPM2000Reference
Idle RPM850-2350Reference
Torque1845.5 NmReference
Torque RPM1400Reference
Firing order1-4-2-6-3-5Reference
StarterelectricReference
Starter volts12Reference
Oil capacity25.0 LReference
Coolant capacity12.5 LReference
Max power273.3 kWReference
Power at rated engine speed241.1 kWReference
Max power224.4 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulicReference
Oil capacity63.0 LReference
PTO & Hydraulics
PTO (claimed)231.9 kWReference
PTO (tested)273.3 kWReference
Hydraulic system236.6 LReference
Typeclosed center load sensingReference
Capacity236.6 LReference
Valves4 to 8Reference
Pump flow151.4 lpmReference
Pump flow208.2 lpmReference
Pump flow408.8 lpmReference
SCV flow132.5 lpmReference
Rear TypeIVNReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)9072 kgReference
Rear Armsquick couplerReference
DrawbarCat. 4Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@1998 (early)Reference
Engine RPM1000@1811 (late)Reference
Power at rated PTO speed271.5 kWReference
Capacities
Fuel832.7 LReference
Exhaust fluid (DEF)159.0 LReference
Max capacity19051 kgReference
Max capacity22453 kgReference
Dimensions
Wheelbase375 cmReference
Weight38469 to 38759 poundsReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Ag front710/70R42Reference
Ag rear710/70R42Reference
Length739 cmReference
Width255 cmReference
Width304 cmReference
Width441 cmReference
Height (cab)366 cmReference
Height (exhaust)398 cmReference
Clearance (drawbar)44 cmReference
Front axle114 by 3048 mmReference
Front axle127 by 3048 mmReference
Bar rear axle114 by 3048 mmReference
Bar rear axle127 by 3048 mmReference
17581 kgReference
Shipping17449 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDSeptember 9 - 29, 2014Link: OCED Tractor Test 2092 fileReference
PTO performanceReference
Fuel use72.7 l/hourReference
Fuel use65.9 l/hourReference
Fuel use71.9 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull17094 kgReference
Gear 1 used for pull test.Reference
Speeds
With group 47 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
