Tractor · 2007Unverified

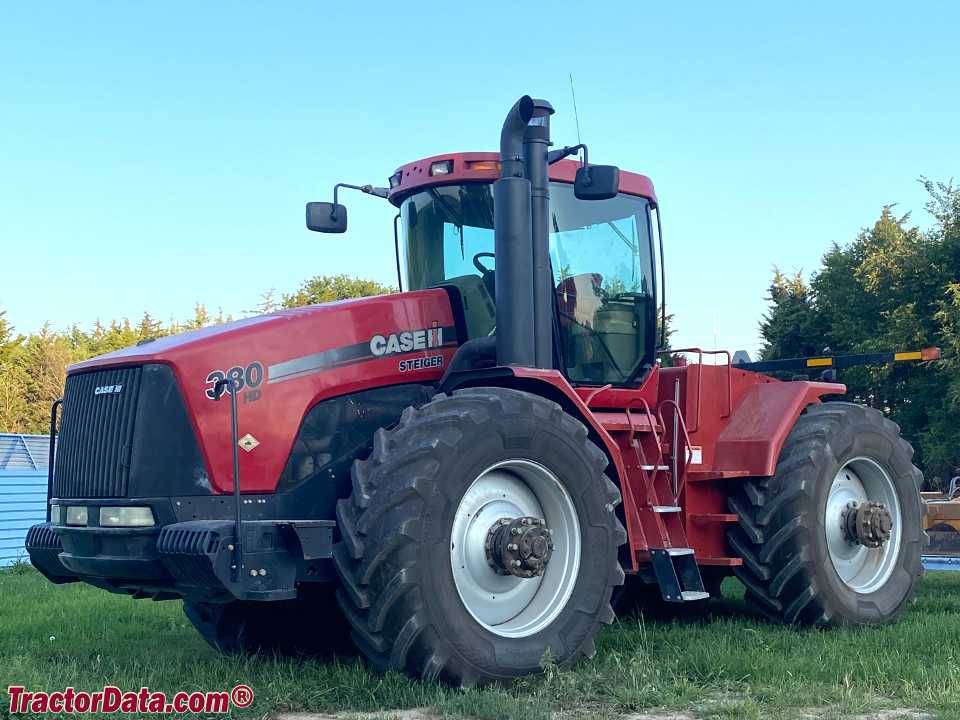

CaseIH Steiger 380
CaseIH Steiger 380 — Four-wheel Drive (4WD) tractor · 347 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
347 hp
Max power
291.5 kW
Weight
37900 to 41605 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Articulated power steeringReference
Integrated hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning, optional Luxury cabReference
Engine
Iveco 12.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine283.4 kWReference
Drawbar (tested)238.2 kWReference
IvecoReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
Power283.4 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2000Reference
Starter volts12Reference
Max power291.5 kWReference
Power at rated engine speed258.8 kWReference
Max power238.2 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)249.8 kWReference
PTO (tested)291.5 kWReference
TypePFCReference
Pump flow151.4 lpmReference
Pump flow208.2 lpmReference
Pump flow340.7 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)8899 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase391 cmReference
Weight37900 to 41605 poundsReference
Shipping17191 kgReference
Operating18872 kgReference
Capacities
Max capacity20684 kgReference
Test results
Diesel 16-speed 4WDOctober 16 - 23, 2007Link: OCED Tractor Test 1908 fileReference
PTO performanceReference
Fuel use85.5 l/hourReference
Fuel use78.3 l/hourReference
Drawbar performanceReference
Fuel use77.6 l/hourReference
Gear 4 used for power test.Reference
Max pull18763 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
