Tractor · 2008Unverified

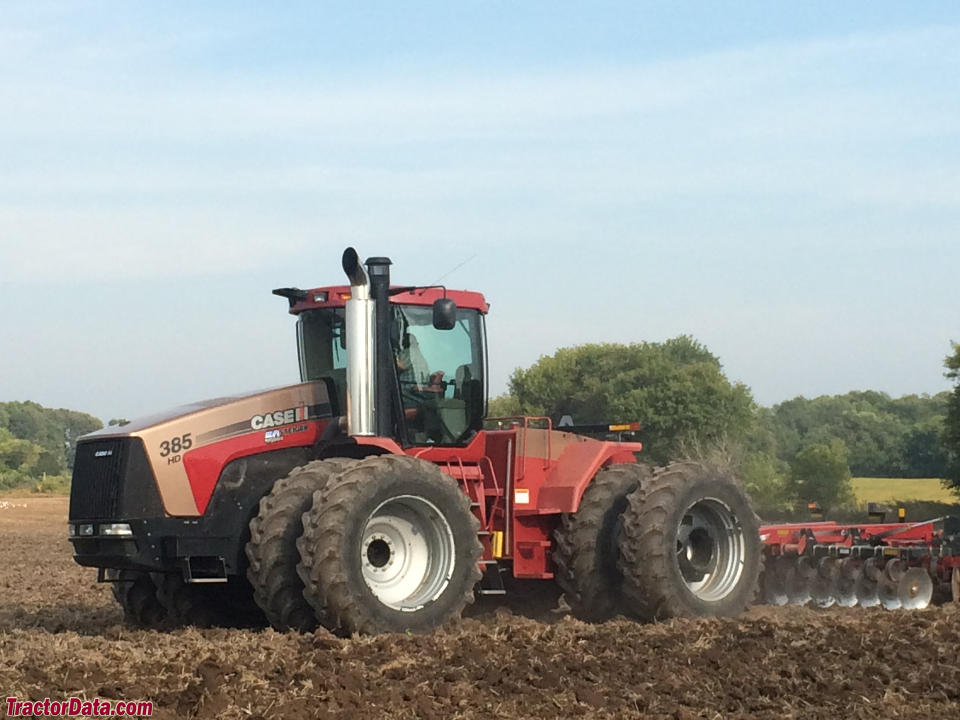

CaseIH Steiger 385

Name: CaseIH Steiger 385
Brand: CaseIH

CaseIH Steiger 385 — Four-wheel Drive (4WD) tractor · 347 hp. Reference specifications; pending source verification.

The CaseIH Steiger 385 is a tractor model with a rating of approximately 347 hp, placing it at the upper end of its class in terms of power output. Produced from 2008 to 2010, it is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine and a four-wheel drive system paired with a hydrostatic transmission. The tractor has an operating weight of between 17,392 and 18,781 kilograms, and is designed for use on landholdings exceeding 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

347 hp

Max power

291.5 kW

Weight

37900 to 41605 pounds

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

347 hp

Transmissions

16-speed full power shift

Production years

2008-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Original price$249,874Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Integrated hydraulic wet disc brakesReference

Cab standard with heat and A/C, optional Luxury cabReference

Variants

385 Quadtracarticulated crawlerReference

Engine

Iveco 12.9L 6-cyl dieselReference

Fuel tank1135.5 LReference

Engine287.1 kWReference

Drawbar (tested)238.2 kWReference

IvecoReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsTier 3Reference

Power287.1 kWReference

Maximum Power315.4 kWReference

Air cleanerdual paper elementsReference

Compression16.5:1Reference

Rated RPM2000Reference

Starter volts24Reference

Oil capacity31.0 LReference

Max power291.5 kWReference

Power at rated engine speed258.8 kWReference

Max power238.2 kWReference

Transmission

16-speed full power shiftReference

24-speedReference

Typefull power shiftReference

Gears16 forward and 2 reverseReference

Gears24 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)252.8 kWReference

PTO (tested)291.5 kWReference

Typeparallel pressure flow compensated (PFC)Reference

Valves4 to 5Reference

Valves4 to 9 (without 3-point hitch)Reference

Total flow151.4 lpmReference

Total flow208.2 lpmReference

Total flow340.7 lpmReference

Rear Type4NReference

Rear lift (at 24"/610mm)8899 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Dimensions

Wheelbase391 cmReference

Weight37900 to 41605 poundsReference

Front tire710/70R42Reference

Rear tire710/70R42Reference

Ag front710/70R42Reference

Ag rear710/70R42Reference

Width111 cmReference

Front axle114 by 3048 mmReference

Rear axle114 by 3048 mmReference

Shipping17191 kgReference

Operating18872 kgReference

Steiger 385 Serial Number Location

Serial number on the left side of the tractor, behind the step.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Batteries2Reference

Battery CCA1000Reference

Battery volts12Reference

Capacities

Max capacity20684 kgReference

Test results

Diesel 16-speed 4WDOctober 16 - 23, 2007Link: OCED Tractor Test 1908 fileReference

PTO performanceReference

Fuel use65.5 l/hourReference

Fuel use63.6 l/hourReference

Drawbar performanceReference

Fuel use77.6 l/hourReference

Gear 4 used for power test.Reference

Max pull18763 kgReference

Gear 2 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
