Tractor · 2024Unverified

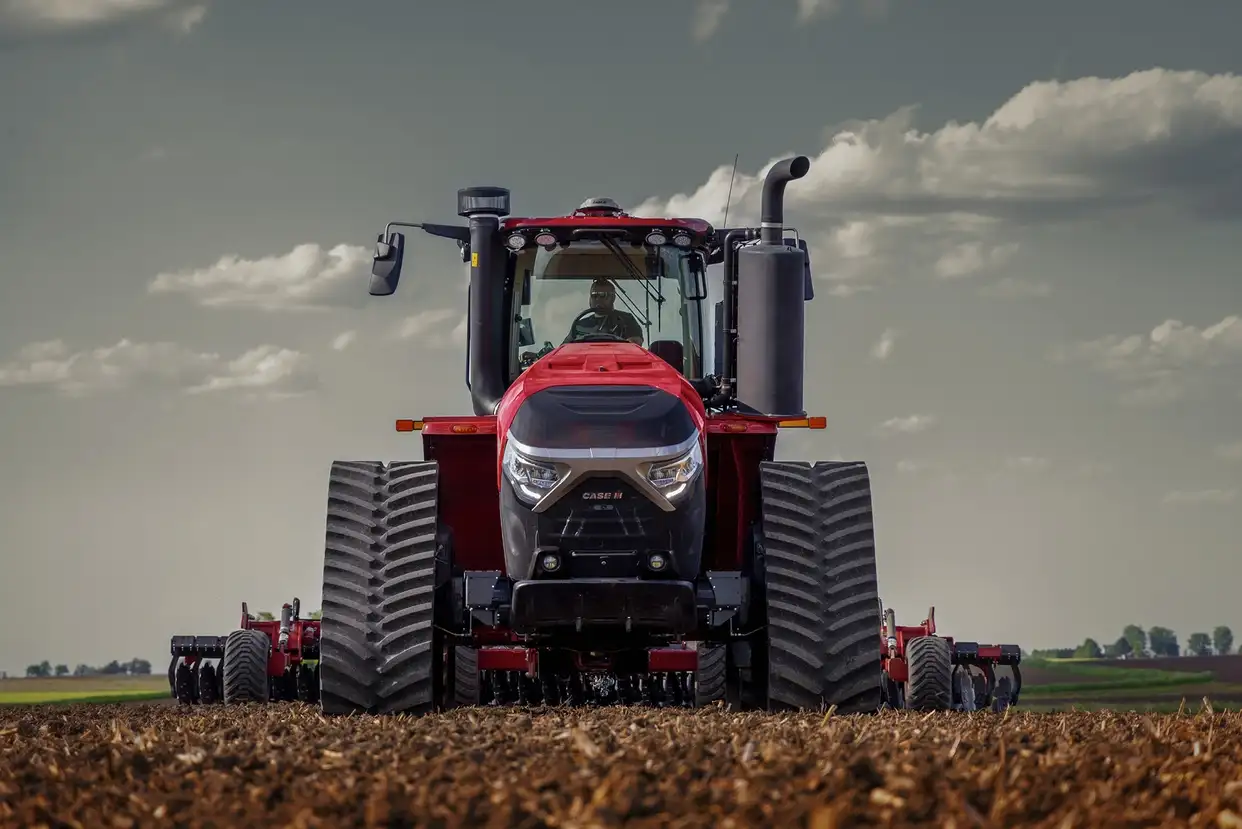

CaseIH Steiger 425

Name: CaseIH Steiger 425
Brand: CaseIH

CaseIH Steiger 425 — Steiger 4WD Series · 419 hp. Reference specifications; pending source verification.

The CaseIH Steiger 425 is a tractor with a power output of 419 horsepower, categorising it amongst the more powerful machines in its class. This model was produced in 2024. It features a 6-cylinder turbocharged diesel liquid-cooled engine, which drives four-wheel drive through a powershift transmission. Its listed weight is 18506 kilograms, suitable for use on areas of approximately 1500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

419 hp

Weight

18506 kg

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

419 hp

Recorded weight

18506 kg

Transmissions

17-speed full power shift

Production years

2024-2024

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $657,964 in 2026Reference

Four-wheel driveReference

Final drivesplanetaryReference

Differential lockautomatic front and rearReference

Articulated power steeringReference

Cab standard with air-conditioning.Reference

Variants

T9.470similar New Holland modelReference

Engine

FPT 12.9L 6-cyl dieselReference

Fuel tank1173.4 LReference

Exhaust fluid (DEF)159.0 LReference

Engine (gross)312.6 kWReference

Engine (max)343.5 kWReference

FPT Cursor 13Reference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsTier IVReference

Rated Power (gross)312.6 kWReference

Maximum Power (gross)343.5 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Transmission

17-speed full power shiftReference

continuously-variable transmissionReference

TransmissionPowerDriveReference

Typefull power shiftReference

Gears17 forward and 2 reverseReference

TransmissionCVXDriveReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)300.8 kWReference

Typeclosed centerReference

Valves4 to 8Reference

Pump flow159.0 lpmReference

Pump flow215.7 lpmReference

Pump flow427.7 lpmReference

SCV flow132.5 lpmReference

Rear TypeIVN/IIIReference

Rear lift (at 24"/610mm)9935 kgReference

DrawbarCat 4Reference

DrawbarCat 5Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Dimensions

Wheelbase375 cmReference

Weight18506 kgReference

Front axle127 by 3048 mmReference

Bar rear axle127 by 3048 mmReference

Shipping18506 kgReference

Max Drawbar2721 kgReference

Max Drawbar4989 kgReference

Max Drawbar6804 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Charging amps330Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

Capacities

Max capacity25401 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
