Tractor · 2024Unverified

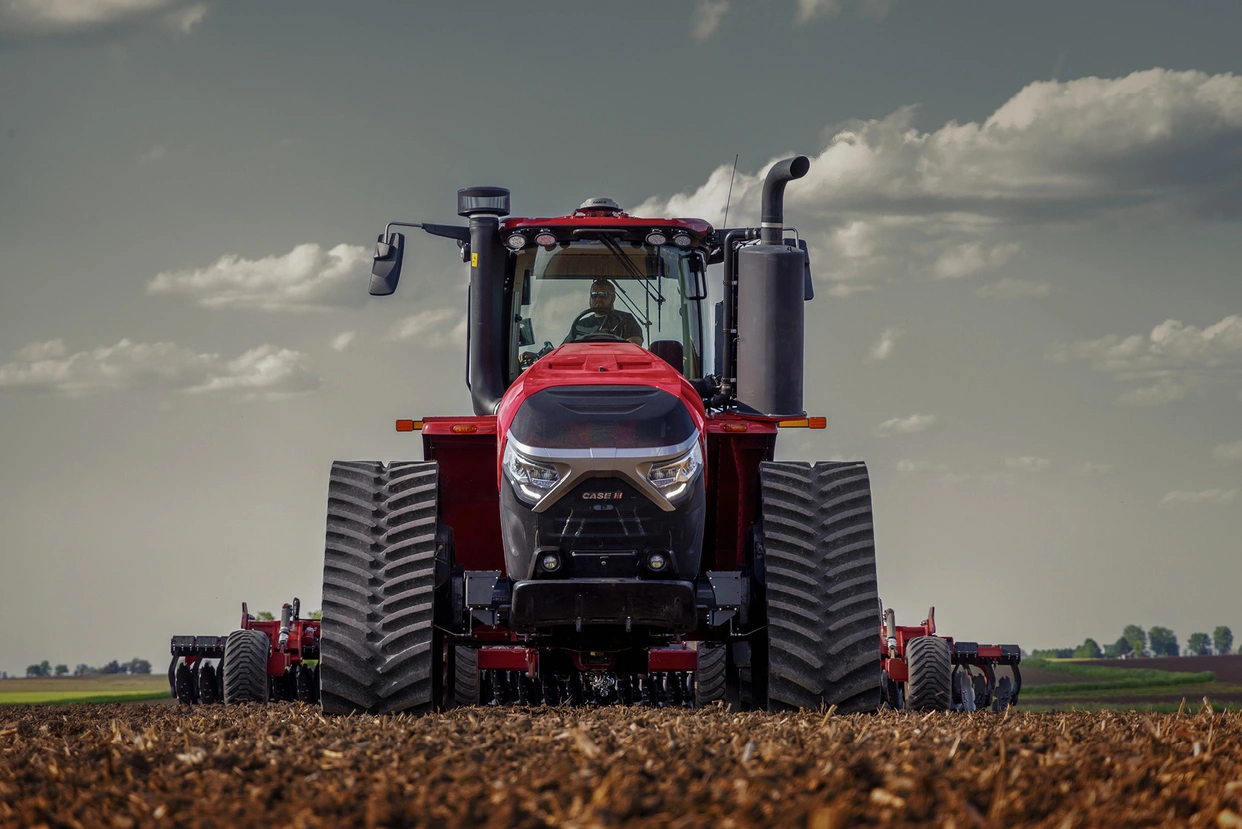

CaseIH Steiger 425 Rowtrac
CaseIH Steiger 425 Rowtrac — Steiger Rowtrac Series · 419 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
419 hp
Weight
23677 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Articulated Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $829,002 in 2026Reference
Drivearticulated crawlerReference
Final drivesplanetaryReference
Articulated power steeringReference
Cab standard with air-conditioning.Reference
Engine
FPT 12.9L 6-cyl dieselReference
Fuel tank1286.9 LReference
Exhaust fluid (DEF)159.0 LReference
Engine (gross)312.6 kWReference
Engine (max)343.5 kWReference
FPT Cursor 13Reference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier IVReference
Rated Power (gross)312.6 kWReference
Maximum Power (gross)343.5 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
17-speed full power shiftReference
continuously-variable transmissionReference
TransmissionPowerDriveReference
Typefull power shiftReference
Gears17 forward and 2 reverseReference
TransmissionCVXDriveReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)300.8 kWReference
Typeclosed centerReference
Valves4 to 8Reference
Pump flow159.0 lpmReference
Pump flow215.7 lpmReference
Pump flow427.7 lpmReference
SCV flow132.5 lpmReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)9935 kgReference
DrawbarCat 4Reference
DrawbarCat 5Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase406 cmReference
Weight23677 kgReference
18-inch tracksReference
Front axle2032 mmReference
Front axle2235 mmReference
Front axle3048 mmReference
Flange rear axle2032 mmReference
Flange rear axle2235 mmReference
Flange rear axle3048 mmReference
Shipping23677 kgReference
Max Drawbar2721 kgReference
Max Drawbar4989 kgReference
Max Drawbar6804 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Charging amps330Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
CaseIH Steiger 425 Rowtrac Tracks
Width45 cmReference
Width53 cmReference
Width60 cmReference
Width76 cmReference
Capacities
Max capacity27216 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
