Tractor · 2008Unverified

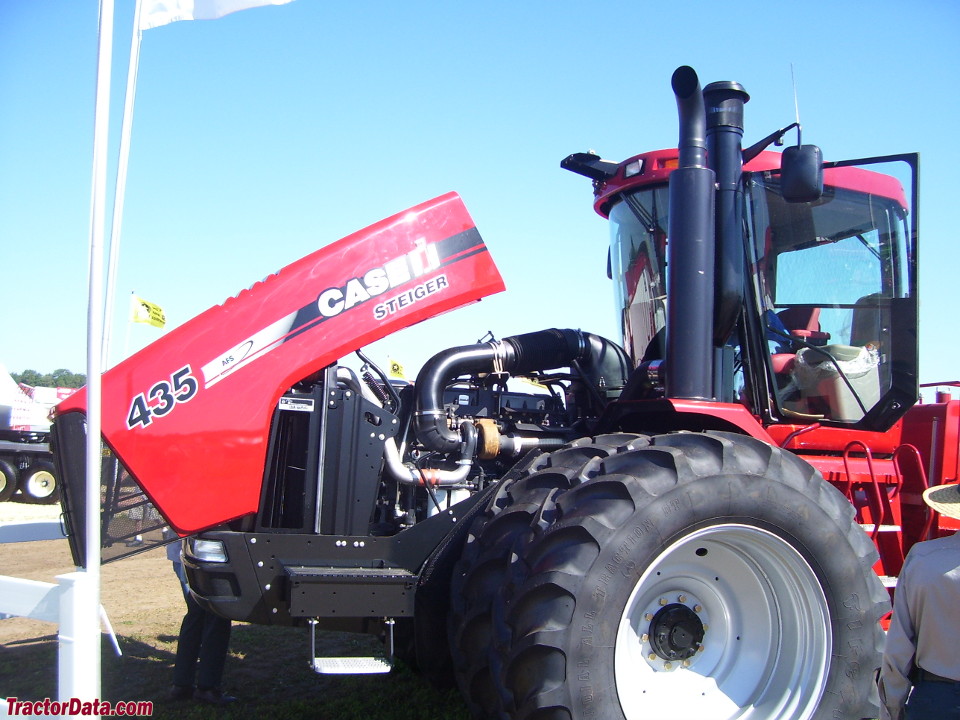

CaseIH Steiger 435
CaseIH Steiger 435 — Four-wheel Drive (4WD) tractor · 385 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
385 hp
Max power
327.3 kW
Weight
37900 to 41605 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price$268,480 (2010)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Integrated hydraulic wet disc brakesReference
Cab standard with heat and A/C, optional Luxury cabReference
Variants
435 Quadtracarticulted crawlerReference
Engine
Iveco 12.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine324.4 kWReference
Drawbar (tested)261.9 kWReference
IvecoReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier 3Reference
Power324.4 kWReference
Maximum Power356.4 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2000Reference
Starter volts24Reference
Oil capacity31.0 LReference
Max power327.3 kWReference
Power at rated engine speed286.8 kWReference
Max power261.9 kWReference
Transmission
16-speed full power shiftReference
24-speedReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)282.6 kWReference
PTO (tested)327.3 kWReference
Typeparallel pressure flow compensated (PFC)Reference
Valves4 to 5Reference
Valves4 to 9 (without 3-point hitch)Reference
Total flow151.4 lpmReference
Total flow208.2 lpmReference
Total flow340.7 lpmReference
Rear Type4NReference
Rear lift (at 24"/610mm)8899 kgReference
Rear PTOindependent optionalReference
Rear PTO Type1000Reference
Dimensions
Wheelbase391 cmReference
Weight37900 to 41605 poundsReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Ag front710/70R42Reference
Ag rear710/70R42Reference
Width111 cmReference
Front axle114 mmReference
Rear axle114 mmReference
Shipping17191 kgReference
Operating18872 kgReference
Steiger 435 Serial Number Location
Serial number on the left side of the tractor, behind the step.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Capacities
Max capacity23405 kgReference
Test results
Diesel 16-speed crawlerSeptember 25 - October 12, 2007Link: OCED Tractor Test 1909 fileReference
PTO performanceReference
Fuel use92.7 l/hourReference
Fuel use85.2 l/hourReference
Drawbar performanceReference
Fuel use83.6 l/hourReference
Gear 6 used for power test.Reference
Max pull16633 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
