Tractor · 2011Unverified

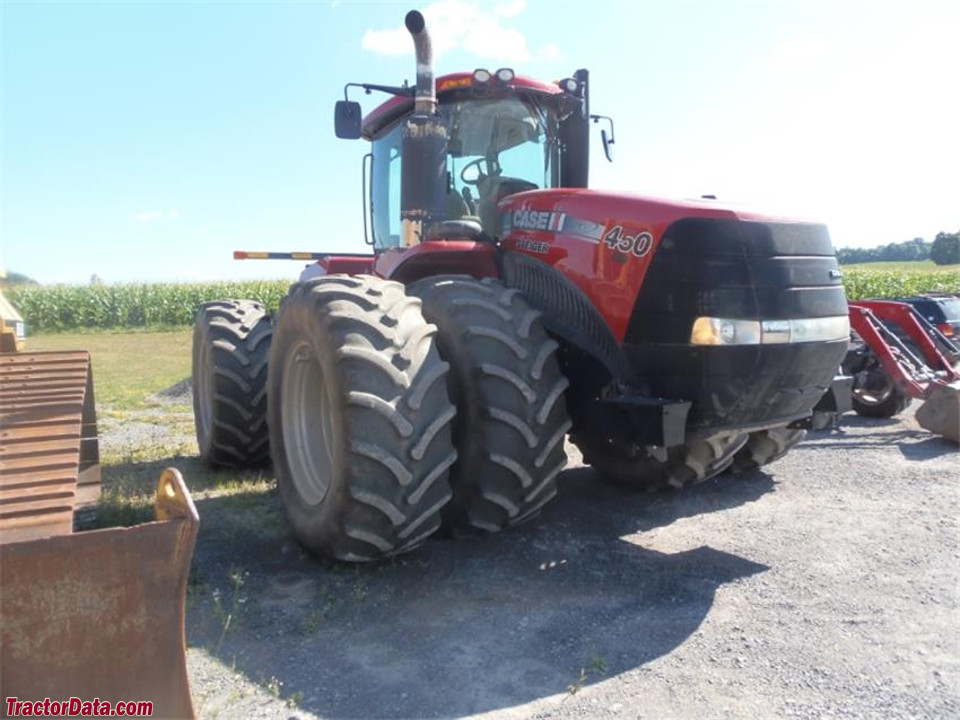

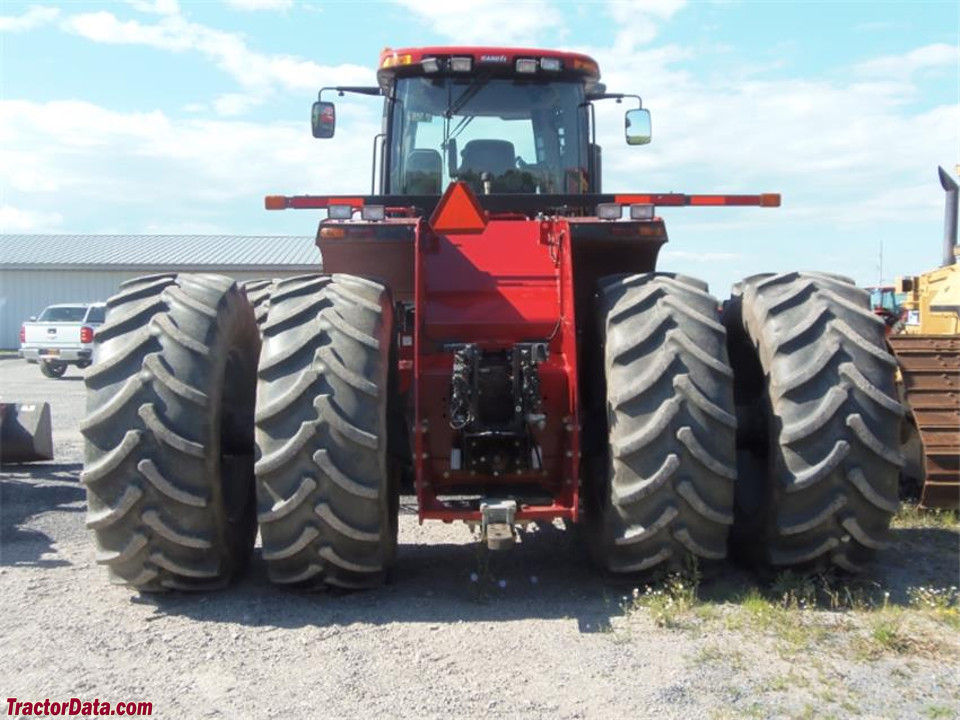

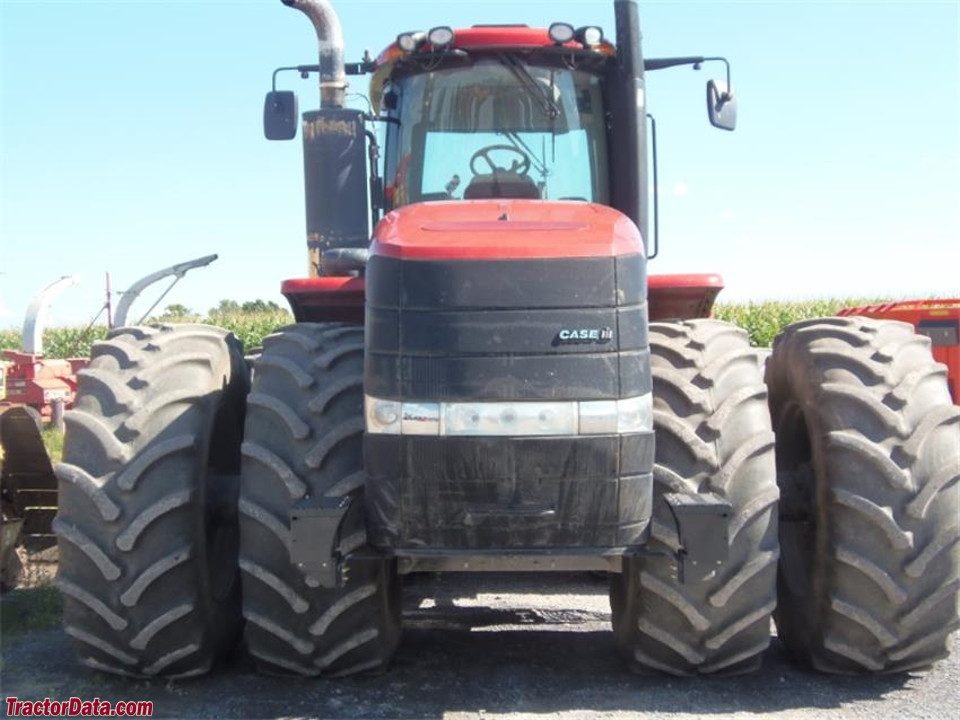

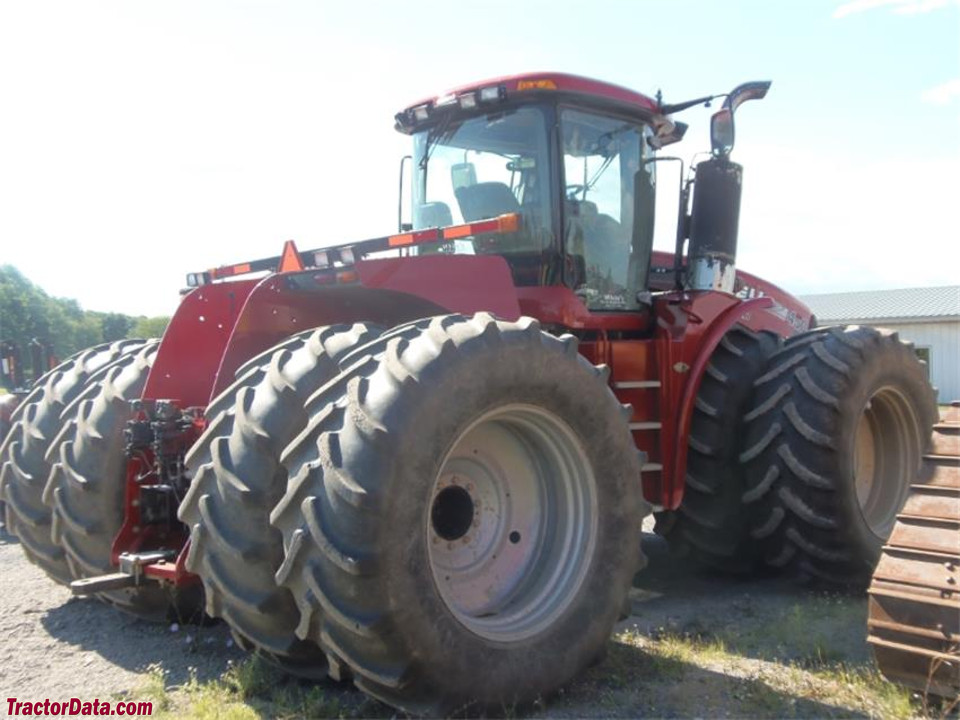

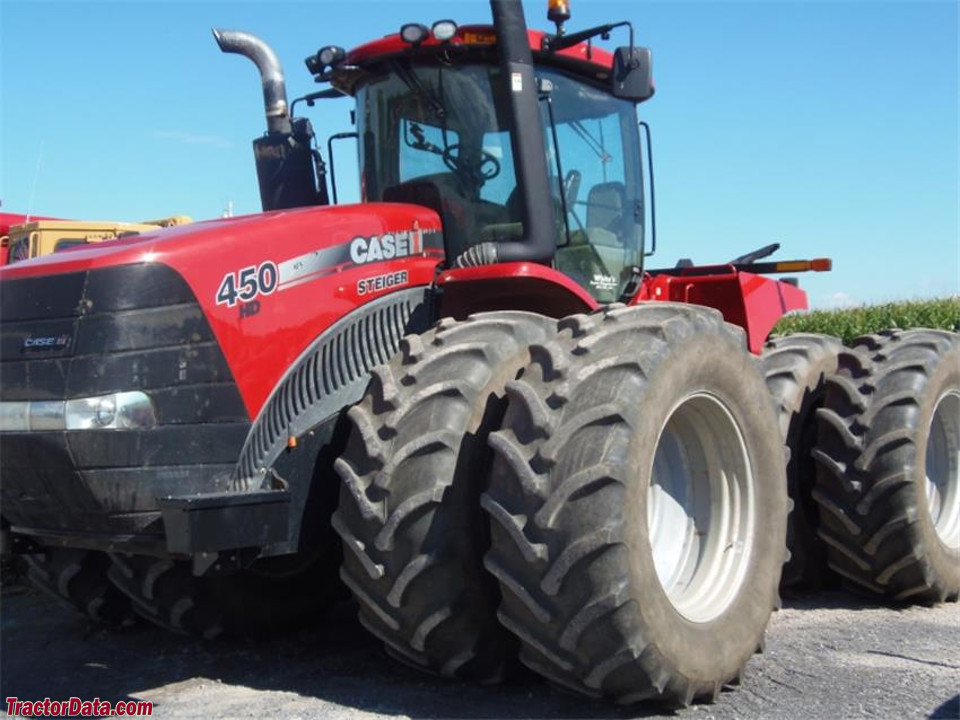

CaseIH Steiger 450
CaseIH Steiger 450 — Four-wheel Drive (4WD) tractor · 408 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
408 hp
Max power
336.5 kW
Weight
16351 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference

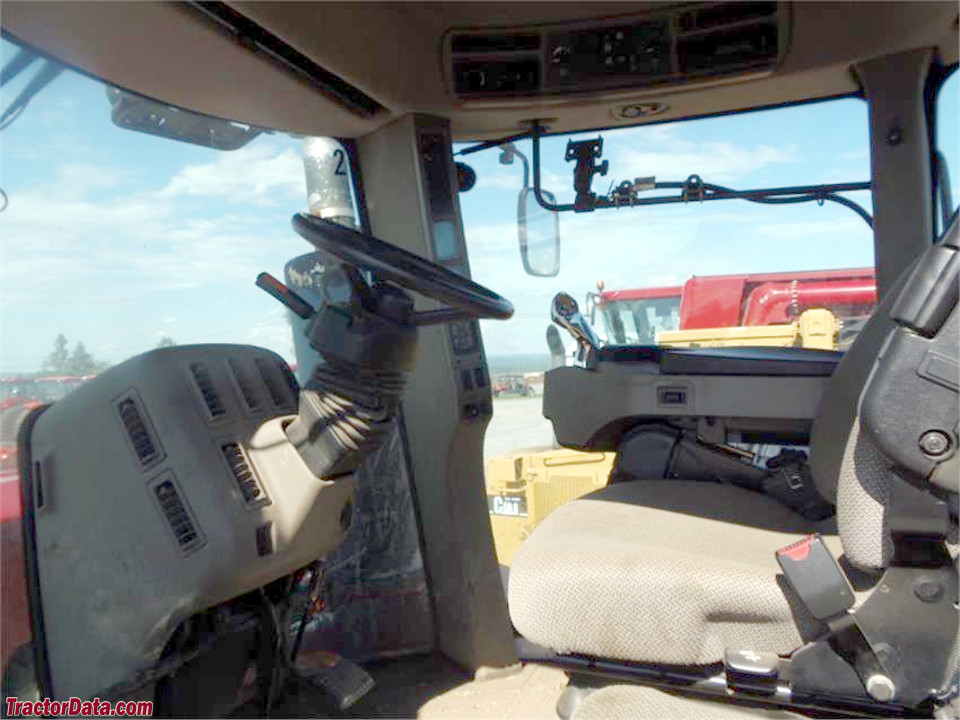

Surveyor cab standard.Reference
Variants
450wheeled tractorReference
450QTcrawler tractorReference
Engine
Iveco 12.9L 6-cyl dieselReference
Fuel tank1173.4 LReference
Exhaust fluid (DEF)174.1 LReference
Engine335.6 kWReference
Drawbar (tested)272.6 kWReference
IvecoReference
wastegate turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power335.6 kWReference
Maximum Power369.1 kWReference
Rated RPM2100Reference
Starter typeelectricReference
Max power336.5 kWReference
Power at rated engine speed304.0 kWReference
Max power272.6 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discsReference
PTO & Hydraulics
PTO (claimed)287.1 kWReference
PTO (tested)336.5 kWReference
Typepressure flow compensating (PFC)Reference
Rear valves4 to 8Reference
Pump flow132.5 lpmReference
Total flow159.0 lpmReference
Total flow212.0 lpmReference
Total flow427.7 lpmReference
Rear Type4NReference
Rear lift9072 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1-3/4)Reference
Power at rated PTO speed325.6 kWReference
Dimensions
Wheelbase375 cmReference
Weight16351 kgReference
Weight16351 kgReference
Ballasted weight22453 kgReference
Rear axle127 by 3048 mmReference
Steiger 450 Serial Numbers
Location:Serial number plate on the front left tractor fender, near the steps.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDNovember 10 - 21, 2011Link: OCED Tractor Test 2009 fileReference
PTO performanceReference
Fuel use90.1 l/hourReference
Fuel use85.5 l/hourReference
Fuel use88.9 l/hourReference
Drawbar performanceReference
Fuel use85.9 l/hourReference
Gear 5 used for power test.Reference
Max pull17749 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
