Tractor · 2013Unverified

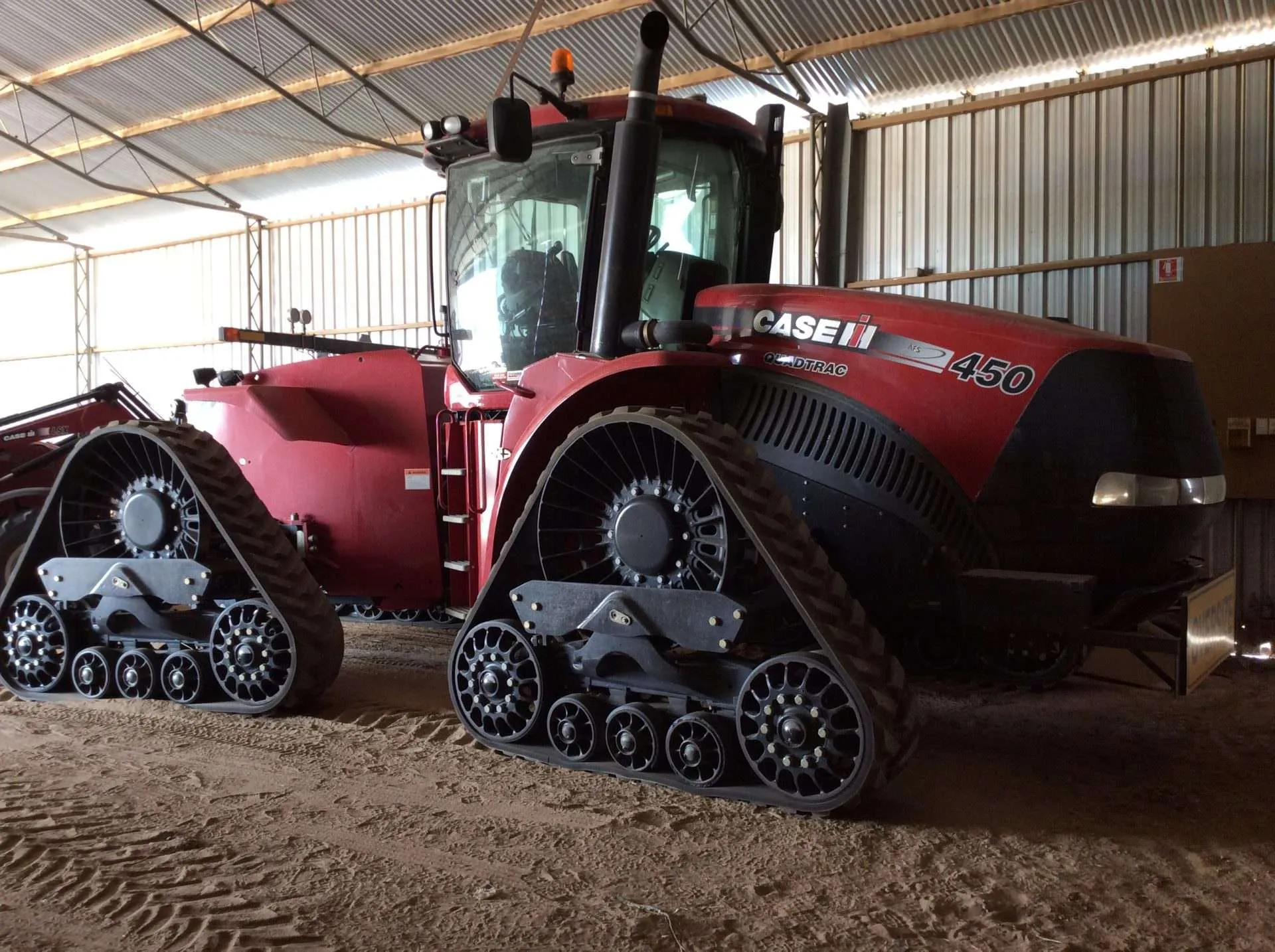

CaseIH Steiger 450 Rowtrac
CaseIH Steiger 450 Rowtrac — Steiger Rowtrac Series · 402 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
402 hp
Max power
338.5 kW
Weight
51000 to 55785 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Agricultural Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $416,114 in 2013Reference
Drivearticulated crawlerReference
Final drivesinboard planetaryReference
Wet disc brakesReference
Surveyor Cab standard with air-conditioning.Reference
Engine
FPT 12.9L 6 -cyl dieselReference
Fuel tank946.2 LReference
Exhaust fluid (DEF)174.1 LReference
Engine335.6 kWReference
Drawbar (tested)263.2 kWReference
FPTReference
turbocharged air-to-air aftercooled dieselReference
6 -cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power335.6 kWReference
Maximum Power369.1 kWReference
Fuel systemelectronic unit injector systemReference
Cooling systemvariable hydraulic fanReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power338.5 kWReference
Power at rated engine speed299.9 kWReference
Max power263.2 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)287.1 kWReference
PTO (tested)338.5 kWReference
Typepressure flow compensatedReference
Rear valves4 to 8Reference
Rear valves5 (with 3-point)Reference
Pump flow159.0 lpmReference
Pump flow215.7 lpmReference
Pump flow427.7 lpmReference
SCV flow132.5 lpmReference
Rear TypeIVNl IIIN (optional)Reference
Controllower link draft sensingReference
Rear lift (at 24"/610mm)9072 kgReference
Rear ArmsfixedReference
DrawbarCategory 4, SwingingReference
Rear PTOindependentReference
Rear PTO Type1000 (1.375)Reference
Power at rated PTO speed320.4 kWReference
Dimensions
Wheelbase406 cmReference
Weight51000 to 55785 poundsReference
16-inch tracksReference
Length800 cmReference
Min Width243 cmReference
Max Width365 cmReference
Height (cab)384 cmReference
Front axle114 mmReference
Flange rear axle114 mmReference
23133 kgReference
Operating25304 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Battery volts12Reference
CaseIH Steiger 450 Rowtrac Tracks
Width40 cmReference
Width45 cmReference
Width60 cmReference
Capacities
Max capacity25877 kgReference
Test results
Diesel 16-speed crawlerOctober 1 - 3, 2013Link: OCED Tractor Test 2071 fileReference
PTO performanceReference
Fuel use91.2 l/hourReference
Fuel use85.5 l/hourReference
Fuel use88.2 l/hourReference
Drawbar performanceReference
Fuel use86.3 l/hourReference
Gear 4 used for power test.Reference
Max pull20268 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
