Tractor · 2014Unverified

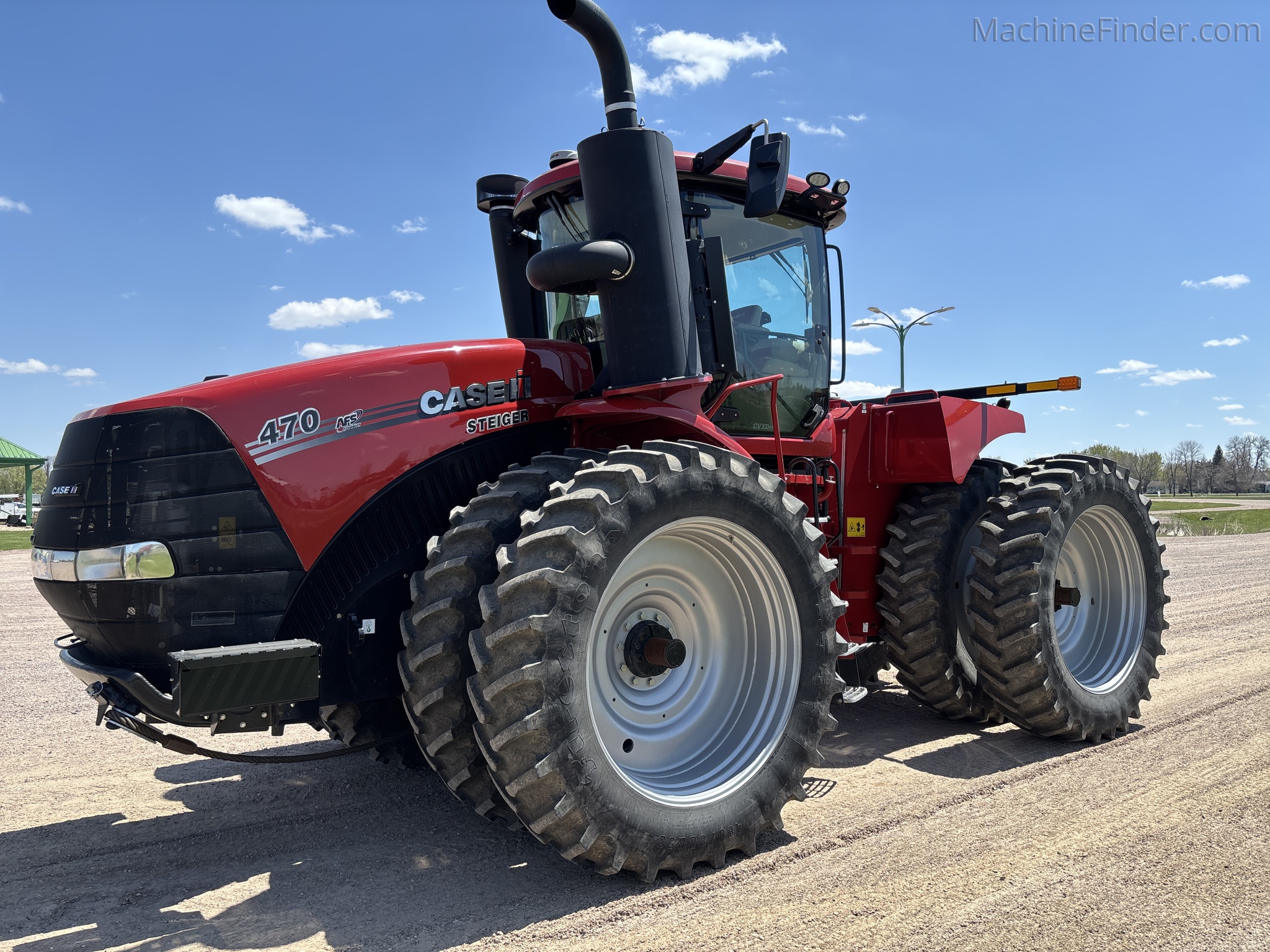

CaseIH Steiger 470
CaseIH Steiger 470 — Steiger 4WD Series · 417 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
417 hp
Max power
349.2 kW
Weight
18216 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $378,190 in 2015Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydraulic articulatedReference
Brakeshydraulic wet discReference
Brakesengine brakeReference
Trailer brakeshydraulicReference
Surveyor Cab standard with air-conditioning.Reference
Variants
470wheeled tractorReference
470RTrow-crop crawlerReference
470QTcrawlerReference
T9.530similar New Holland modelReference
Engine
FPT 12.9L 6-cyl dieselReference
Fuel tank1173.4 LReference
Exhaust fluid (DEF)159.0 LReference
Engine350.5 kWReference
Drawbar (tested)289.1 kWReference
FPTReference
wastegate turbocharged air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power350.5 kWReference
Maximum Power385.5 kWReference
Fuel systemelectronic high pressure common railReference
Cooling systemviscous fan driveReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power349.2 kWReference
Power at rated engine speed311.1 kWReference
Max power289.1 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)302.0 kWReference
PTO (tested)349.2 kWReference
Typepressure flow compensatedReference
Valves4 to 8Reference
Pump flow159.0 lpmReference
Pump flow215.7 lpmReference
Pump flow427.7 lpmReference
SCV flow132.5 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)9072 kgReference
Rear Armsquick couplerReference
DrawbarCat. 4Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@1998 (early)Reference
Engine RPM1000@1811 (late)Reference
Power at rated PTO speed343.0 kWReference
Dimensions
Wheelbase375 cmReference
Weight18216 kgReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Ag front710/70R42Reference
Ag rear710/70R42Reference
Length739 cmReference
Width304 cmReference
Height (cab)384 cmReference
Max weight22453 kgReference
Front axle127 by 3048 mmReference
Bar rear axle127 by 3048 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDSeptember 11 - 22, 2014Link: OCED Tractor Test 2094 fileReference
PTO performanceReference
Fuel use95.8 l/hourReference
Fuel use91.2 l/hourReference
Fuel use92.4 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull19729 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
