Tractor · 2014Unverified

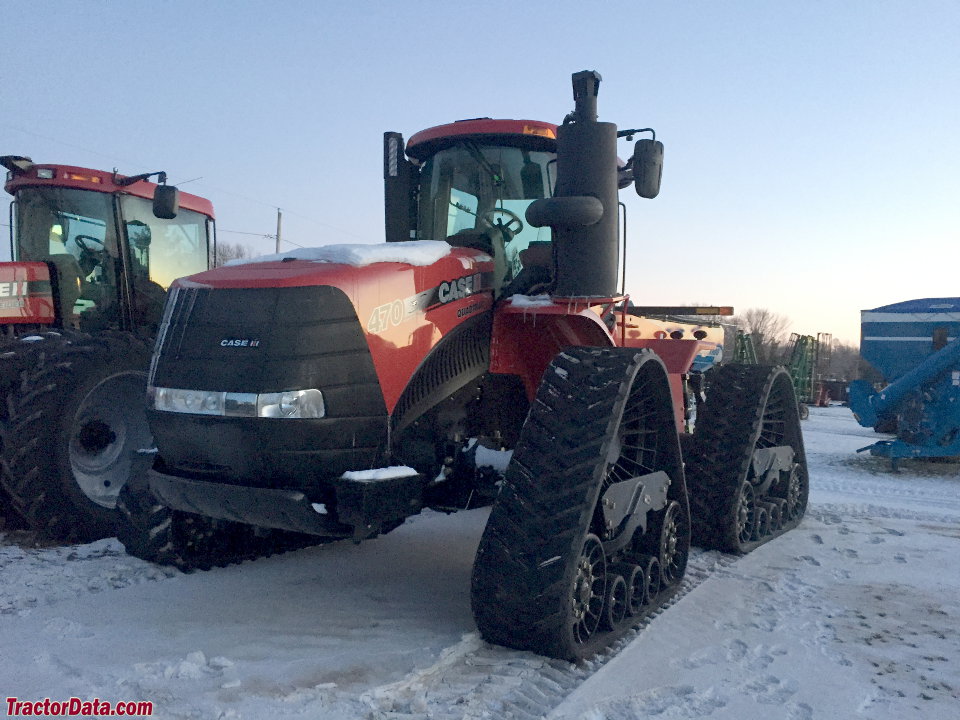

CaseIH Steiger 470 Quadtrac
CaseIH Steiger 470 Quadtrac — Steiger Quadtrac Series · 405 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
405 hp
Weight
21092 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Articulated Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $468,109 in 2015Reference
Drivearticulated crawlerReference
Final drivesplanetaryReference
Steeringhydraulic articulatedReference
Brakeshydraulic wet discReference
Brakesengine brakeReference
Trailer brakeshydraulicReference
Surveyor Cab standard with air-conditioning.Reference
Variants
470wheeled tractorReference
470RTrow-crop crawlerReference
470QTcrawlerReference
Engine
FPT 12.9L 6-cyl dieselReference
Fuel tank1173.4 LReference
Exhaust fluid (DEF)321.7 LReference
Engine350.5 kWReference
FPTReference
wastegate turbocharged air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power350.5 kWReference
Maximum Power385.5 kWReference
Fuel systemelectronic high pressure common railReference
Cooling systemviscous fan driveReference
Rated RPM2100Reference
StarterelectricReference
Starter volts24Reference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)302.0 kWReference
Typepressure flow compensatedReference
Valves4 to 8Reference
Pump flow159.0 lpmReference
Pump flow215.7 lpmReference
Pump flow427.7 lpmReference
SCV flow132.5 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)9072 kgReference
Rear Armsquick couplerReference
DrawbarCat. 4Reference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase391 cmReference
Weight21092 kgReference
30-inch tracksReference
Max weight27216 kgReference
Front axleFlangeReference
Flange rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
CaseIH Steiger 470 Quadtrac Tracks
Width76 cmReference
Width91 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
