Tractor · 2024Unverified

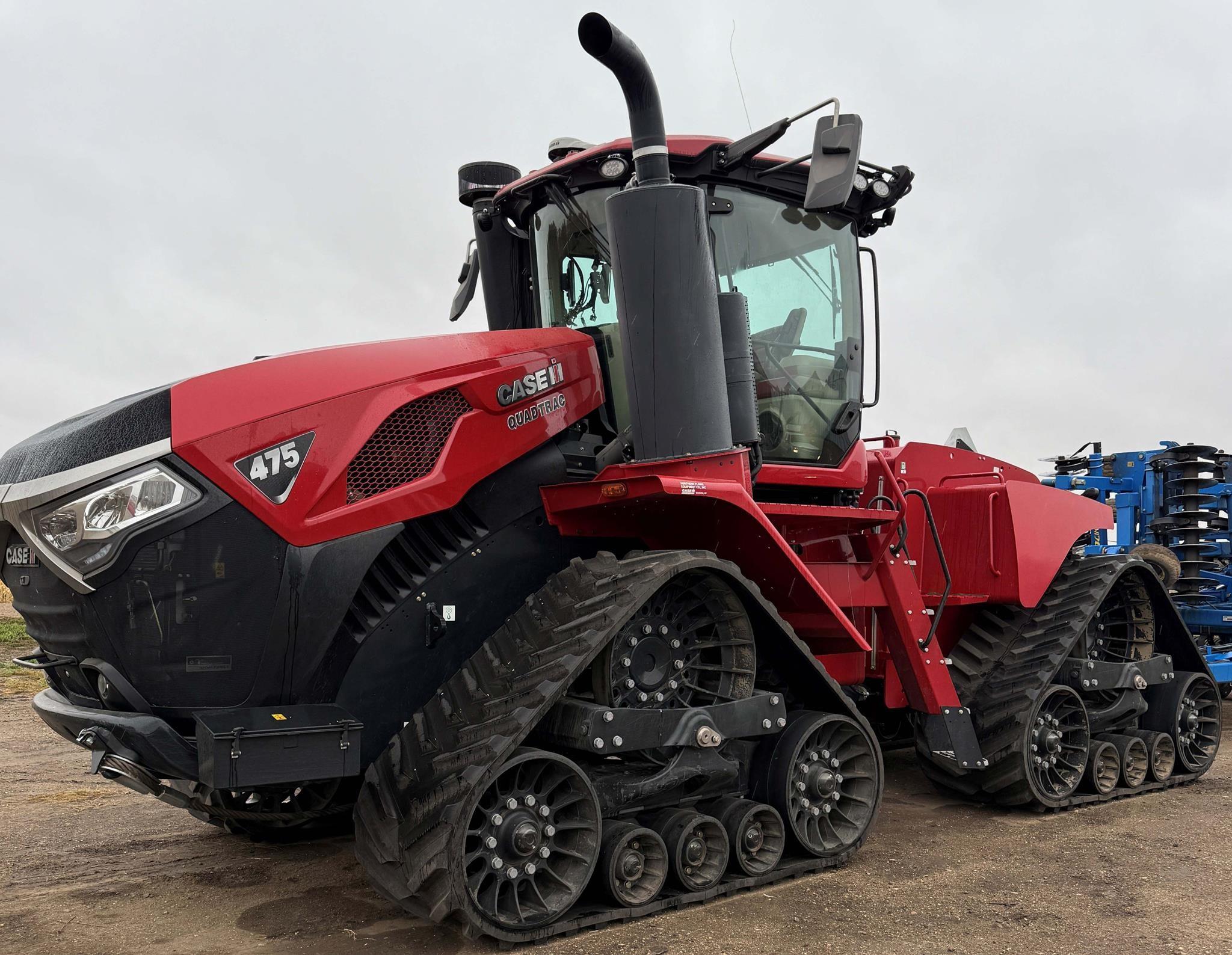

CaseIH Steiger 475 Quadtrac

Name: CaseIH Steiger 475 Quadtrac
Brand: CaseIH

CaseIH Steiger 475 Quadtrac — Steiger Quadtrac Series · 469 hp. Reference specifications; pending source verification.

The CaseIH Steiger 475 Quadtrac is a tractor with a power output of approximately 469 horsepower, placing it at the high end of its class. It was produced in 2024. Key features include a 6-cylinder turbocharged diesel liquid-cooled engine and a tracked undercarriage with a powershift transmission, with an operating weight of 24,358 kg. It is suitable for operations covering an area in excess of 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

469 hp

Weight

24358 kg

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

469 hp

Recorded weight

24358 kg

Transmissions

17-speed full power shift

Production years

2024-2024

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Articulated Crawler tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $878,267 in 2026Reference

Drivearticulated crawlerReference

Final drivesplanetaryReference

Articulated power steeringReference

Cab standard with air-conditioning.Reference

Engine

FPT 12.9L 6-cyl dieselReference

Fuel tank1779.0 LReference

Exhaust fluid (DEF)321.7 LReference

Engine (gross)349.4 kWReference

Engine (max)384.0 kWReference

FPT Cursor 13Reference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsTier IVReference

Rated Power (gross)349.4 kWReference

Maximum Power (gross)384.0 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Transmission

17-speed full power shiftReference

continuously-variable transmissionReference

TransmissionPowerDriveReference

Typefull power shiftReference

Gears17 forward and 2 reverseReference

TransmissionCVXDriveReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)339.8 kWReference

Typeclosed centerReference

Valves4 to 8Reference

Pump flow159.0 lpmReference

Pump flow215.7 lpmReference

Pump flow427.7 lpmReference

SCV flow132.5 lpmReference

Rear TypeIVNReference

Rear lift (at 24"/610mm)10092 kgReference

DrawbarCat 4Reference

DrawbarCat 5Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Dimensions

Wheelbase391 cmReference

Weight24358 kgReference

TracksReference

Front axle2235 mmReference

Flange rear axle2235 mmReference

Shipping24358 kgReference

Max Drawbar2721 kgReference

Max Drawbar4989 kgReference

Max Drawbar6804 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Charging amps330Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

Capacities

Max capacity30391 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
