Tractor · 2024Unverified

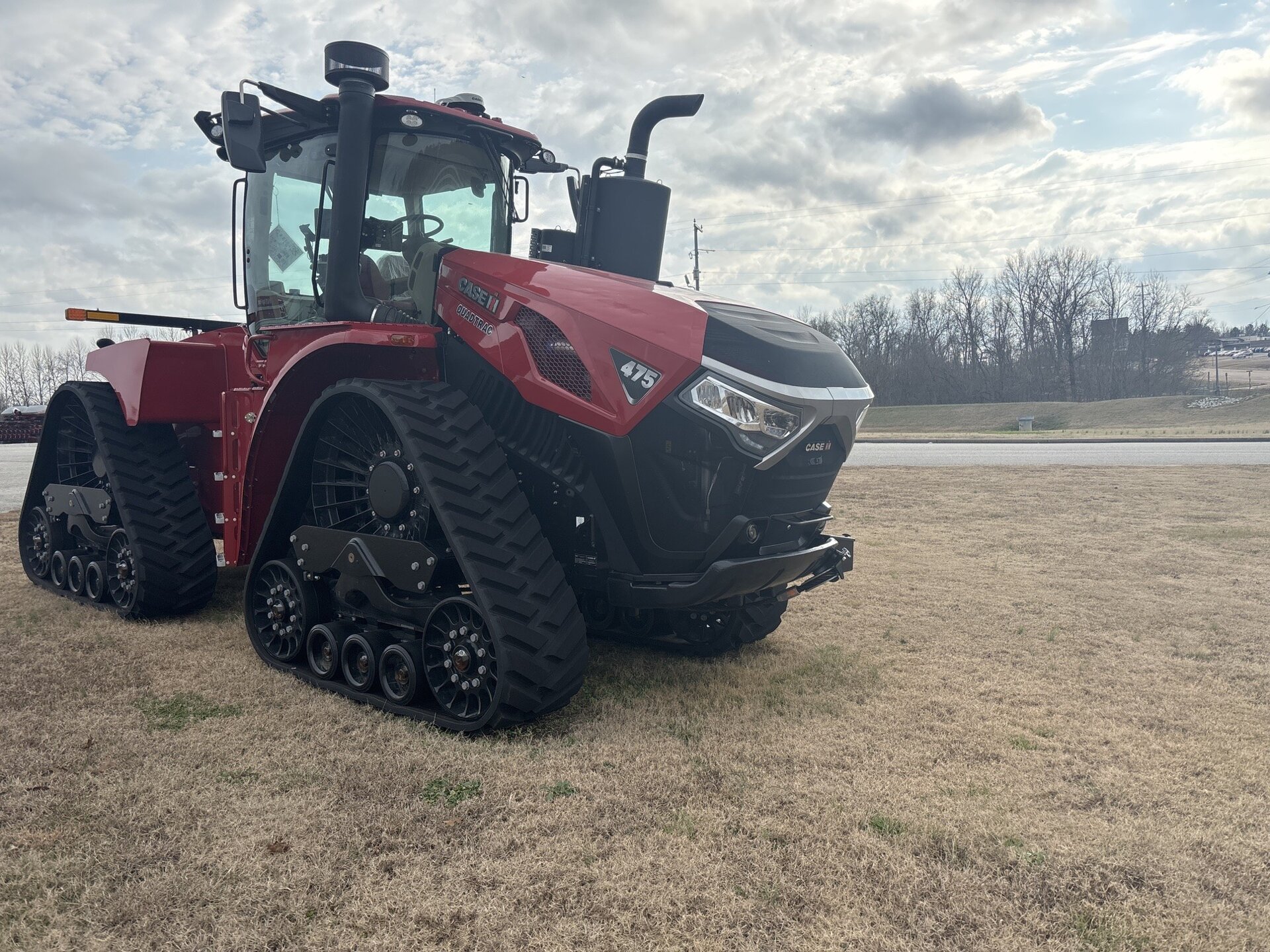

CaseIH Steiger 475 Rowtrac

Name: CaseIH Steiger 475 Rowtrac
Brand: CaseIH

CaseIH Steiger 475 Rowtrac — Steiger Rowtrac Series · 469 hp. Reference specifications; pending source verification.

The CaseIH Steiger 475 Rowtrac is a tractor with a rated power of 469 horsepower, positioning it at the higher end of its class. It was manufactured in 2024. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a tracked undercarriage and powershift transmission. Its operating weight is listed at 23,677 kilograms, making it suitable for operations spanning 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

469 hp

Weight

23677 kg

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

469 hp

Recorded weight

23677 kg

Transmissions

17-speed full power shift

Production years

2024-2024

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Articulated Crawler tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $859,608 in 2026Reference

Drivearticulated crawlerReference

Final drivesplanetaryReference

Articulated power steeringReference

Cab standard with air-conditioning.Reference

Engine

FPT 12.9L 6-cyl dieselReference

Fuel tank1286.9 LReference

Exhaust fluid (DEF)159.0 LReference

Engine (gross)349.4 kWReference

Engine (max)384.0 kWReference

FPT Cursor 13Reference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsTier IVReference

Rated Power (gross)349.4 kWReference

Maximum Power (gross)384.0 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Transmission

17-speed full power shiftReference

continuously-variable transmissionReference

TransmissionPowerDriveReference

Typefull power shiftReference

Gears17 forward and 2 reverseReference

TransmissionCVXDriveReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)339.8 kWReference

Typeclosed centerReference

Valves4 to 8Reference

Pump flow159.0 lpmReference

Pump flow215.7 lpmReference

Pump flow427.7 lpmReference

SCV flow132.5 lpmReference

Rear TypeIVN/IIIReference

Rear lift (at 24"/610mm)9935 kgReference

DrawbarCat 4Reference

DrawbarCat 5Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Dimensions

Wheelbase406 cmReference

Weight23677 kgReference

18-inch tracksReference

Front axle2032 mmReference

Front axle2235 mmReference

Front axle3048 mmReference

Flange rear axle2032 mmReference

Flange rear axle2235 mmReference

Flange rear axle3048 mmReference

Shipping23677 kgReference

Max Drawbar2721 kgReference

Max Drawbar4989 kgReference

Max Drawbar6804 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Charging amps330Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

CaseIH Steiger 475 Rowtrac Tracks

Width45 cmReference

Width53 cmReference

Width60 cmReference

Width76 cmReference

Capacities

Max capacity27216 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
