Tractor · 2007Unverified

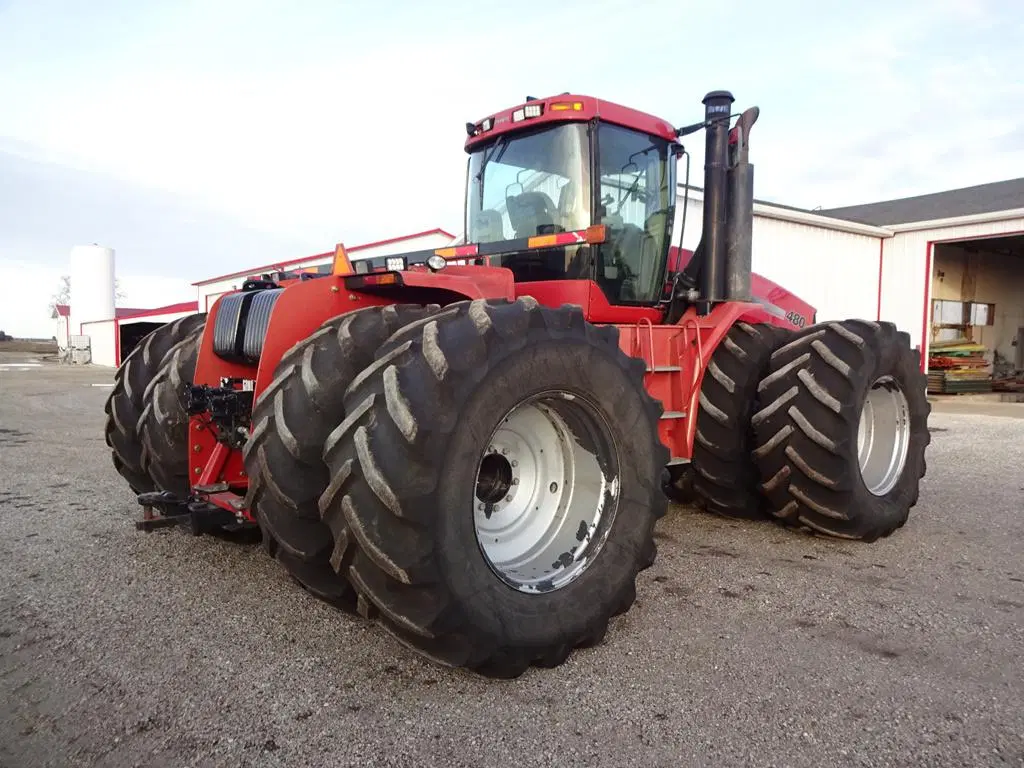

CaseIH Steiger 480
CaseIH Steiger 480 — Four-wheel Drive (4WD) tractor · 429 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
429 hp
Max power
360.3 kW
Weight
20250 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Articulated power steeringReference
Integrated hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning, optional Luxury cabReference
Engine
Cummins 14.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine357.9 kWReference
Drawbar (tested)291.7 kWReference
Cummins QSX15Reference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement14.9 LReference
Bore/Stroke137 x 169 mmReference
Power357.9 kWReference
Air cleanerdual paper elementsReference
Compression17.0:1Reference
Rated RPM2000Reference
Torque2417.7 NmReference
Starter volts24Reference
Max power360.3 kWReference
Power at rated engine speed319.9 kWReference
Max power291.7 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)316.9 kWReference
PTO (tested)360.3 kWReference
TypePFCReference
Pump flow151.4 lpmReference
Pump flow208.2 lpmReference
Pump flow340.7 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)8899 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase391 cmReference
Weight20250 kgReference
Front tire520/85R42Reference
Rear tire520/85R42Reference
Ag front520/85R42Reference
Ag rear520/85R42Reference
Operating weight20250 kgReference
Max weight24494 kgReference
Test results
Diesel 16-speed 4WDSeptember 28 - October 24, 2007Link: OCED Tractor Test 1910 fileReference
PTO performanceReference
Fuel use101.8 l/hourReference
Fuel use95.8 l/hourReference
Drawbar performanceReference
Fuel use95.4 l/hourReference
Gear 4 used for power test.Reference
Max pull20240 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
