Tractor · 2008Unverified

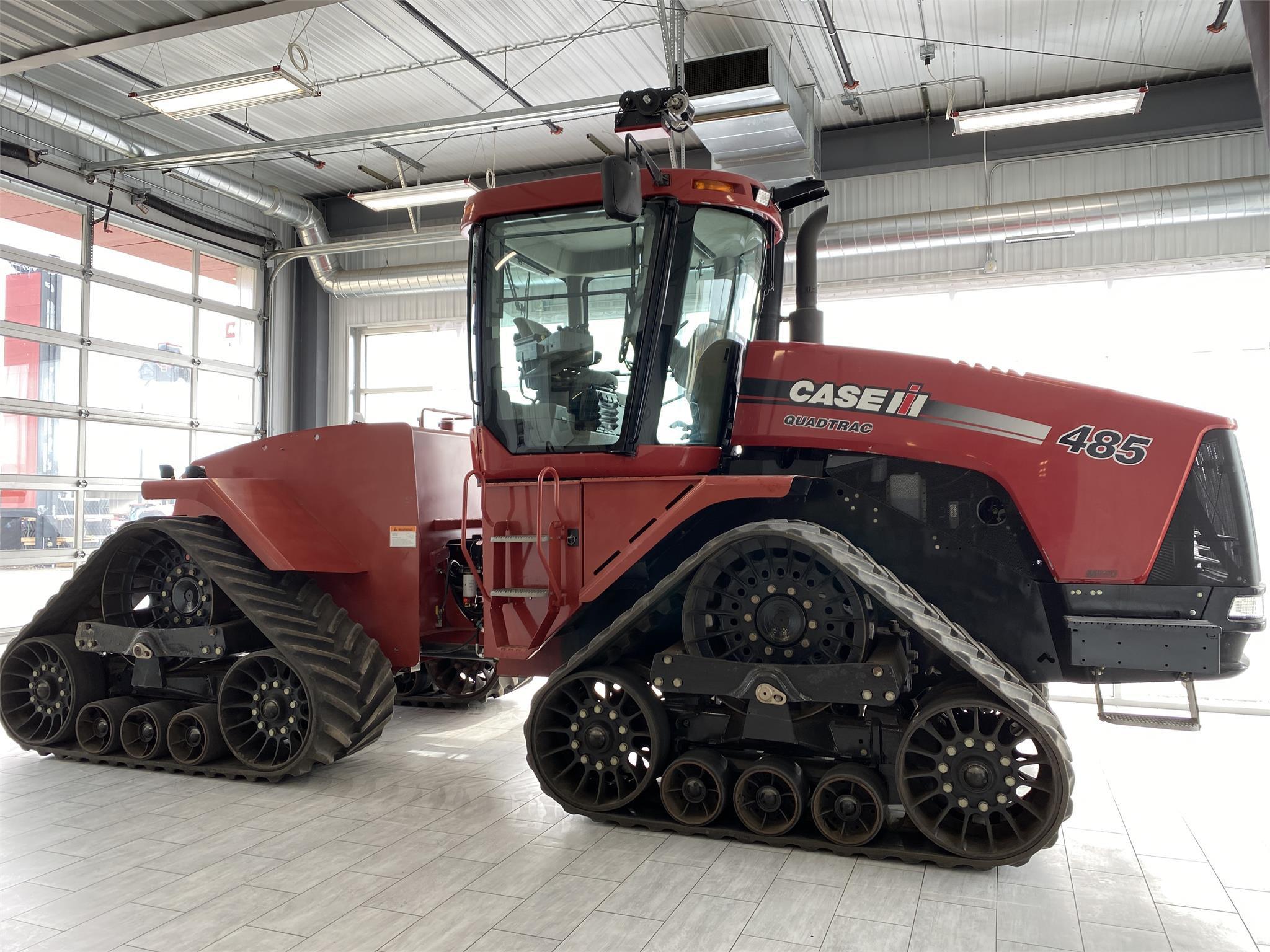

CaseIH Steiger 485QT Quadtrac
CaseIH Steiger 485QT Quadtrac · 429 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
429 hp
Weight
22226 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Built in Fargo, North Dakota, USAReference
Original price$359,521 (2010)Reference
Drivearticulated crawlerReference
Steeringhydrostatic powerReference
Integrated hydraulic wet disc brakesReference
Cab standard with heat and A/C, optional Luxury cabReference
Variants
485wheeled tractorReference
Engine
Iveco 12.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine361.7 kWReference
IvecoReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier 3Reference
Power361.7 kWReference
Maximum Power398.2 kWReference
Compression16.5:1Reference
Rated RPM2000Reference
Starter volts24Reference
Oil capacity31.0 LReference
Transmission
16-speedReference
TransmissionpowershiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)319.9 kWReference
Valves4 to 5Reference
Valves4 to 9 (without 3-point hitch)Reference
Total flow151.4 lpmReference
Total flow208.2 lpmReference
Total flow340.7 lpmReference
Rear Type4NReference
Rear lift (at 24"/610mm)8948 kgReference
Rear PTOindependent optionalReference
Rear PTO Type1000Reference
Dimensions
Wheelbase391 cmReference
Weight22226 kgReference
30-inch tracksReference
Width111 cmReference
Shipping weight22226 kgReference
Max weight26308 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
CaseIH Steiger 485QT Tracks
Width76 cmReference
Width91 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
