Tractor · 2014Unverified

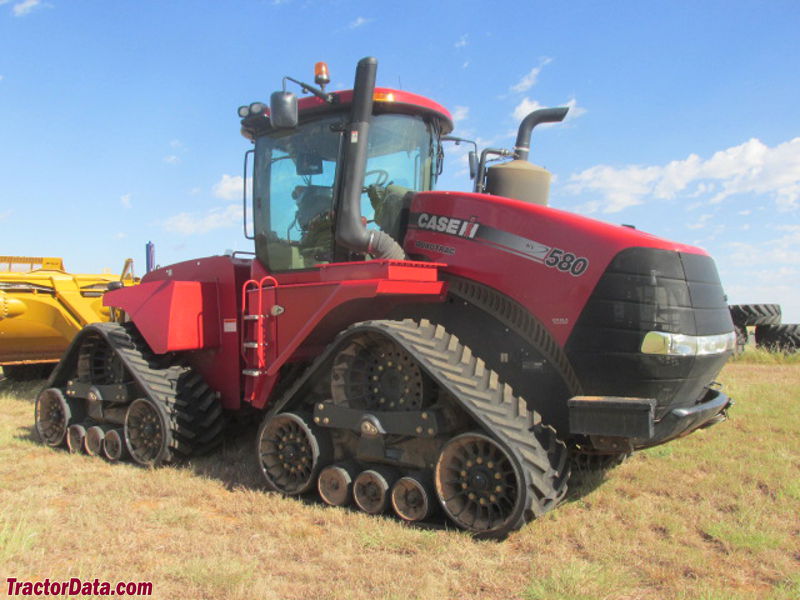

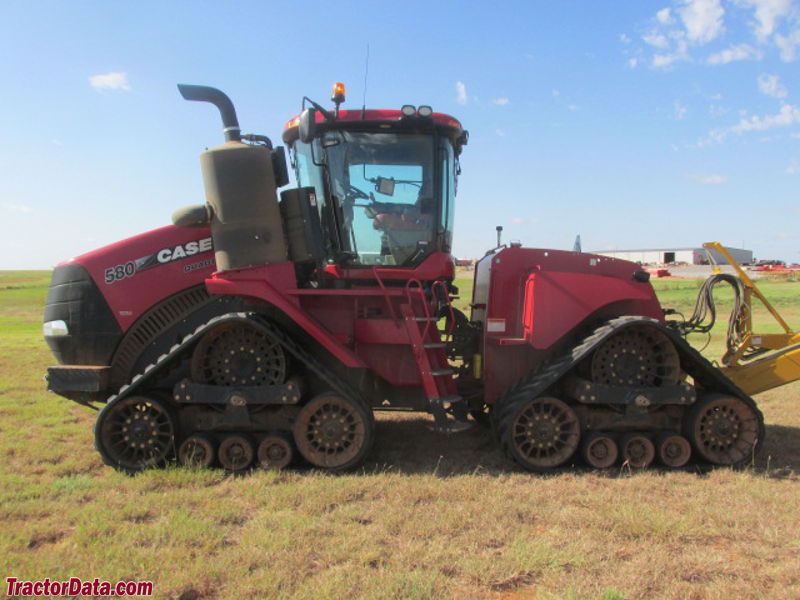

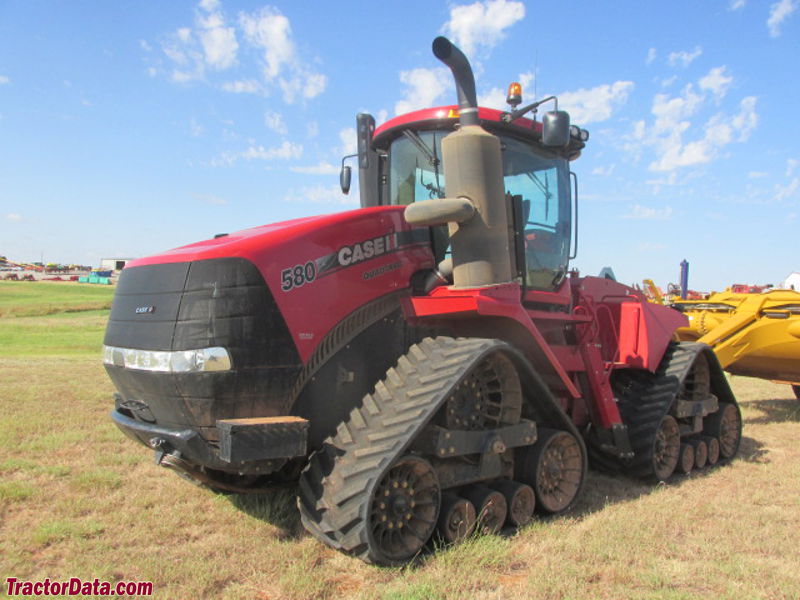

CaseIH Steiger 580 Quadtrac

Name: CaseIH Steiger 580 Quadtrac
Brand: CaseIH

CaseIH Steiger 580 Quadtrac — Steiger Quadtrac Series · 473 hp. Reference specifications; pending source verification.

The CaseIH Steiger 580 Quadtrac is a tractor model with a rated power output of 473 hp, placing it within the higher power range of its class. This model was manufactured from 2014 to 2023. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a tracked undercarriage and a powershift transmission. The tractor has an operating weight of 22126 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

473 hp

Weight

22126 kg

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

473 hp

Recorded weight

22126 kg

Transmissions

16-speed full power shift

Production years

2014-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Articulated Crawler tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $533,976 in 2015Reference

Drivearticulated crawlerReference

Final drivesplanetaryReference

Steeringhydraulic articulatedReference

Brakeshydraulic wet discReference

Brakesengine brakeReference

Trailer brakeshydraulicReference

Surveyor Cab standard with air-conditioning.Reference

Variants

580wheeled tractorReference

580QTcrawler tractorReference

Engine

FPT 12.9L 6-cyl dieselReference

Fuel tank1779.0 LReference

Exhaust fluid (DEF)321.7 LReference

Engine432.5 kWReference

FPTReference

two-stage turbocharged air-to-water intercooled air-to-air aftercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsTier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Power432.5 kWReference

Maximum Power475.8 kWReference

Fuel systemelectronic high pressure common railReference

Cooling systemhydraulically-driven fanReference

Rated RPM2100Reference

StarterelectricReference

Starter volts24Reference

Transmission

16-speed full power shiftReference

Typefull power shiftReference

Gears16 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)352.7 kWReference

Typepressure flow compensatedReference

Valves4 to 8Reference

Pump flow159.0 lpmReference

Pump flow215.7 lpmReference

Pump flow427.7 lpmReference

SCV flow132.5 lpmReference

Rear TypeIVNReference

Rear lift (at 24"/610mm)8948 kgReference

Rear Armsquick couplerReference

DrawbarCat. 4Reference

DrawbarCat. 5Reference

Rear PTOindependentReference

Rear PTO Type1000Reference

Dimensions

Wheelbase391 cmReference

Weight22126 kgReference

30-inch tracksReference

Max weight29030 kgReference

Front axleFlangeReference

Flange rear axleReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Batteries2Reference

Battery CCA1000Reference

Battery volts12Reference

CaseIH Steiger 580 Quadtrac Tracks

Width76 cmReference

Width91 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
