Tractor · 2024Unverified

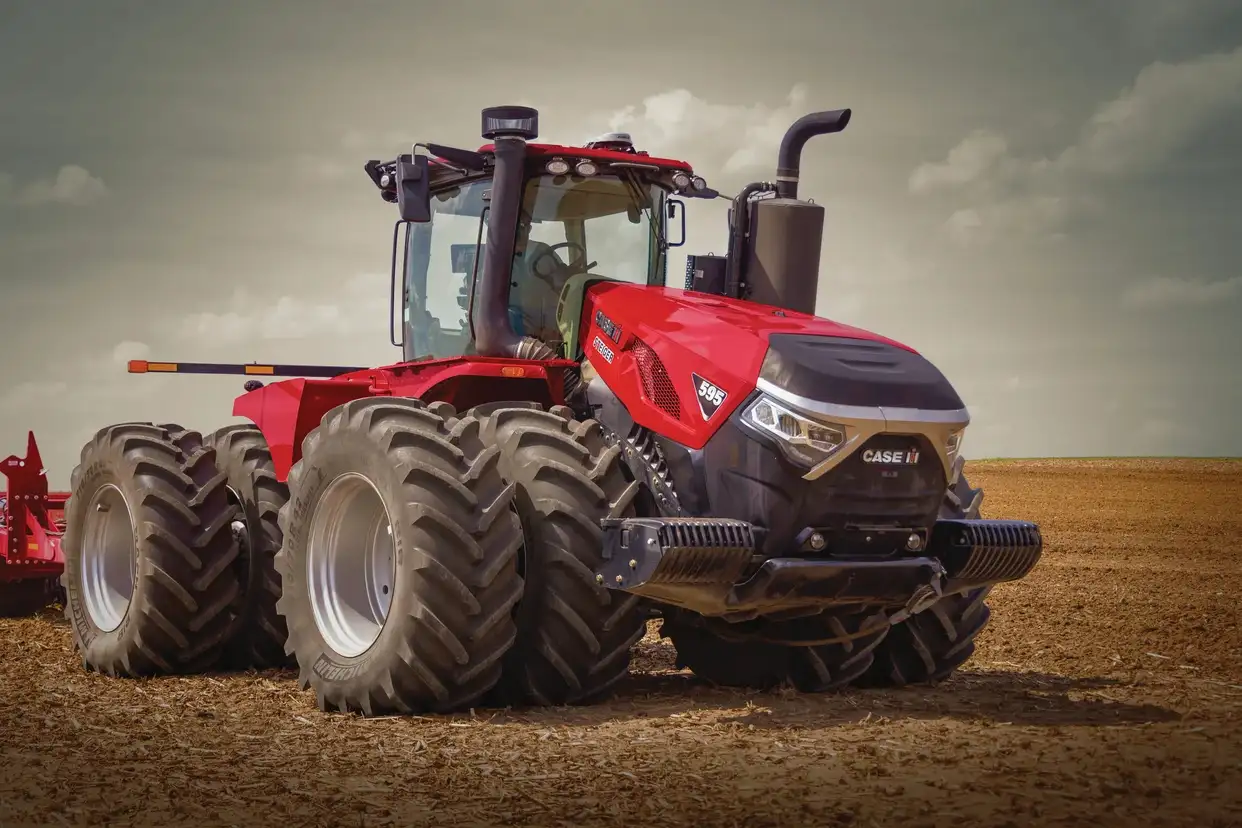

CaseIH Steiger 595
CaseIH Steiger 595 — Steiger 4WD Series · 587 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
587 hp
Weight
22828 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $804,065 in 2026Reference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockautomatic front and rearReference
Articulated power steeringReference
Cab standard with air-conditioning.Reference
Variants
T9.655similar New Holland modelReference
Engine
FPT 12.9L 6-cyl dieselReference
Fuel tank1722.2 LReference
Exhaust fluid (DEF)249.8 LReference
Engine (gross)437.7 kWReference
Engine (max)482.5 kWReference
FPT Cursor 13Reference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier IVReference
Rated Power (gross)437.7 kWReference
Maximum Power (gross)482.5 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
17-speed full power shiftReference
TransmissionPowerDriveReference
Typefull power shiftReference
Gears17 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)394.9 kWReference
Typeclosed centerReference
Valves4 to 8Reference
Pump flow159.0 lpmReference
Pump flow215.7 lpmReference
Pump flow427.7 lpmReference
SCV flow132.5 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)10319 kgReference
DrawbarCat 4Reference
DrawbarCat 5Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase391 cmReference
Weight22828 kgReference
Front axle139 by 3048 mmReference
Bar rear axle139 by 3048 mmReference
Shipping22828 kgReference
Max Drawbar2721 kgReference
Max Drawbar4989 kgReference
Max Drawbar6804 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Charging amps330Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Capacities
Max capacity30391 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
