Tractor · 2014Unverified

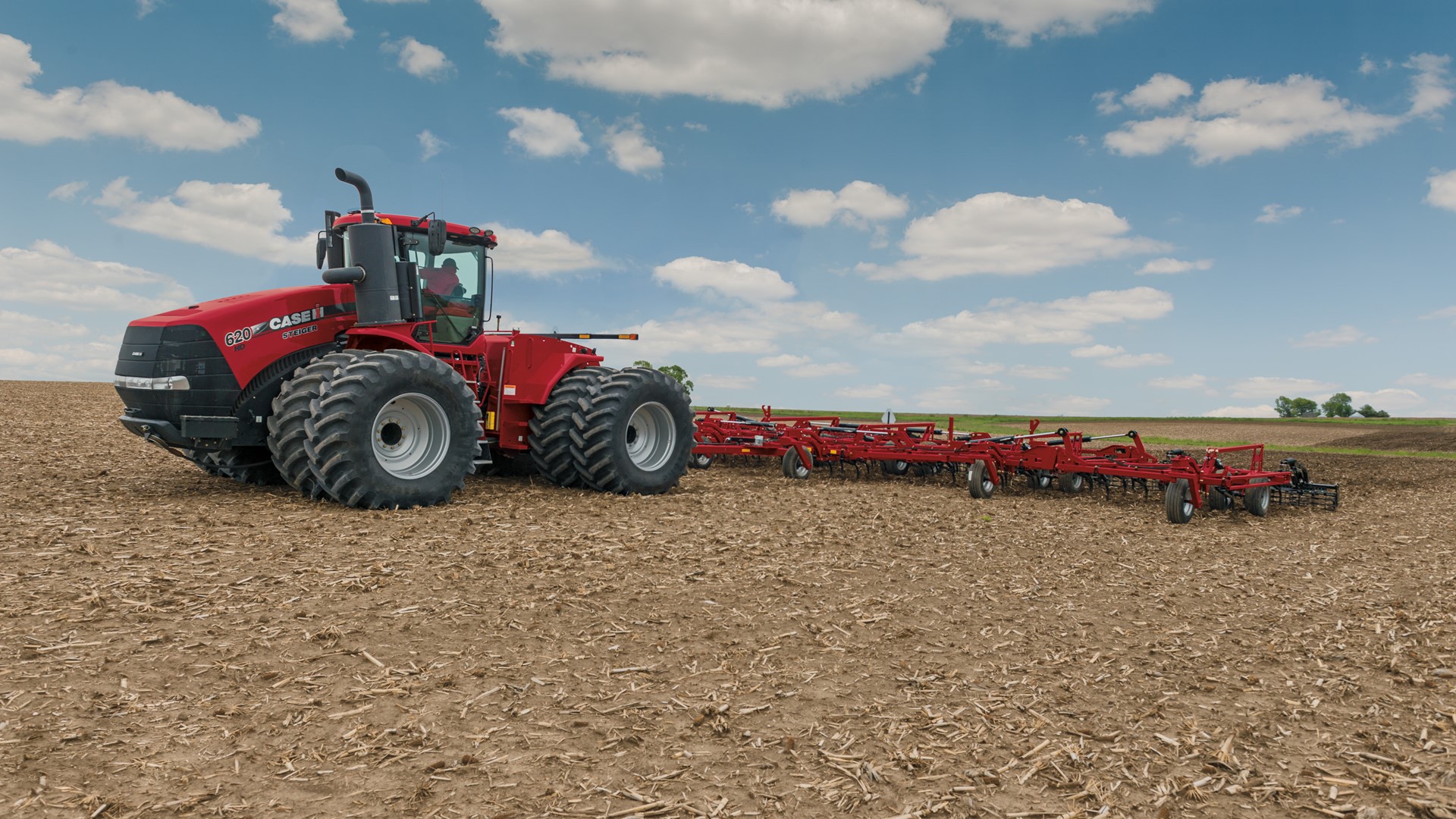

CaseIH Steiger 620
CaseIH Steiger 620 — Steiger 4WD Series · 477 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
477 hp
Max power
402.4 kW
Weight
21839 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $468,459 in 2015Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydraulic articulatedReference
Brakeshydraulic wet discReference
Brakesengine brakeReference
Trailer brakeshydraulicReference
Surveyor Cab standard with air-conditioning.Reference
Variants
620wheeled tractorReference
620QTcrawler tractorReference
T9.700similar New Holland modelReference
Engine
FPT 12.9L 6-cyl dieselReference
Fuel tank1722.2 LReference
Exhaust fluid (DEF)249.8 LReference
Engine462.3 kWReference
Drawbar (tested)396.3 kWReference
FPTReference
two-stage turbocharged air-to-water intercooled air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power462.3 kWReference
Maximum Power508.6 kWReference
Fuel systemelectronic high pressure common railReference
Cooling systemhydraulically-driven fanReference
Rated RPM2100Reference
StarterelectricReference
Starter volts24Reference
Max power402.4 kWReference
Power at rated engine speed355.7 kWReference
Max power396.3 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)352.7 kWReference
PTO (tested)402.4 kWReference
Typepressure flow compensatedReference
Valves4 to 8Reference
Pump flow159.0 lpmReference
Pump flow215.7 lpmReference
Pump flow427.7 lpmReference
SCV flow132.5 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)8900 kgReference
Rear Armsquick couplerReference
DrawbarCat. 4Reference
DrawbarCat. 5Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@1811Reference
Power at rated PTO speed399.0 kWReference
Dimensions
Wheelbase391 cmReference
Weight21839 kgReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Ag front710/70R42Reference
Ag rear710/70R42Reference
Length762 cmReference
Width304 cmReference
Height (cab)396 cmReference
Max weight29937 kgReference
Front axle139 by 3048 mmReference
Bar rear axle139 by 3048 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDSeptember 27 - October 5, 2016Link: OCED Tractor Test 2164 fileReference
PTO performanceReference
Fuel use106.0 l/hourReference
Fuel use99.2 l/hourReference
Fuel use104.1 l/hourReference
Drawbar performanceReference
Fuel use113.9 l/hourReference
Gear 5 used for power test.Reference
Max pull23631 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
