Tractor · 2014Unverified

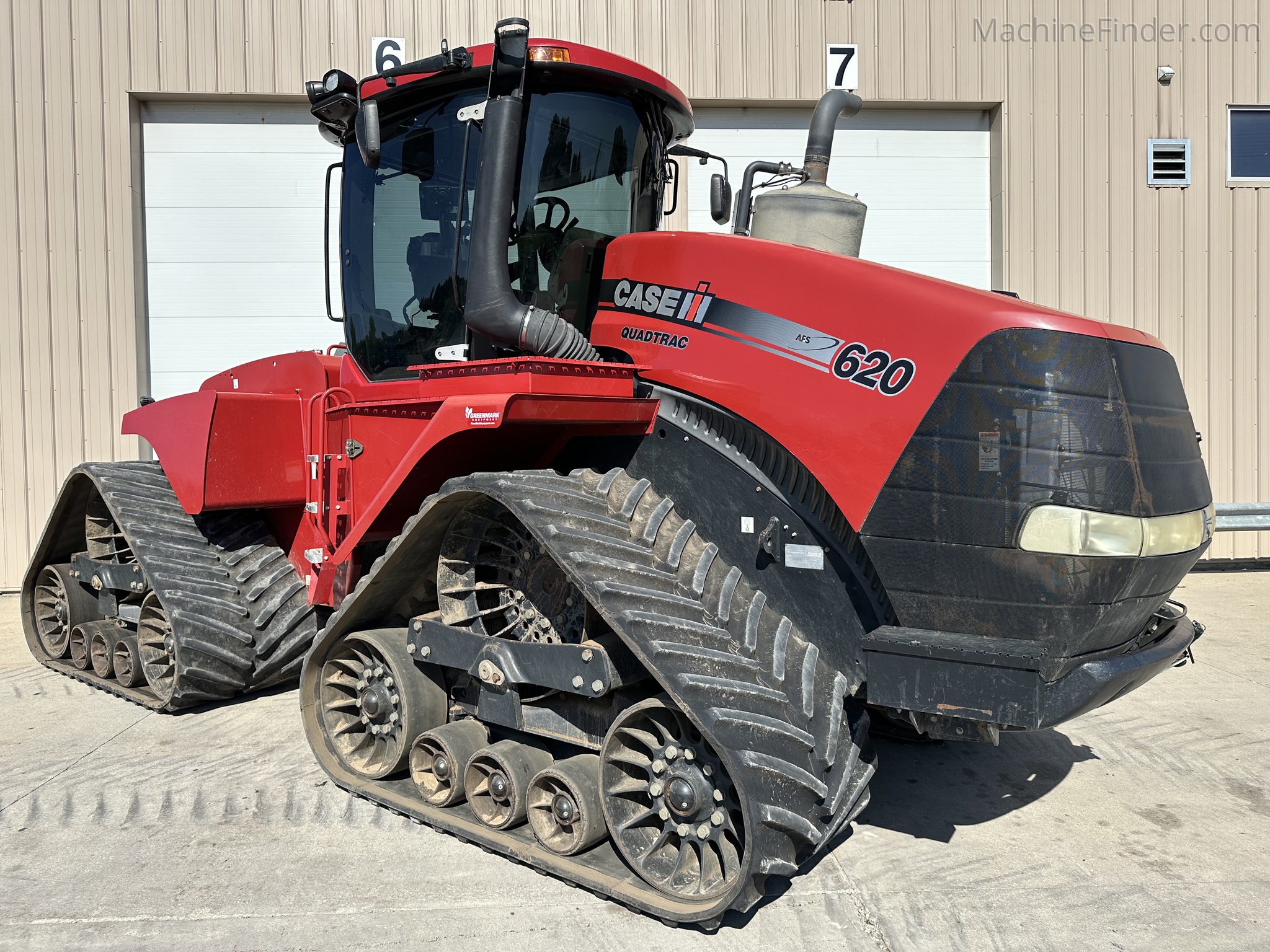

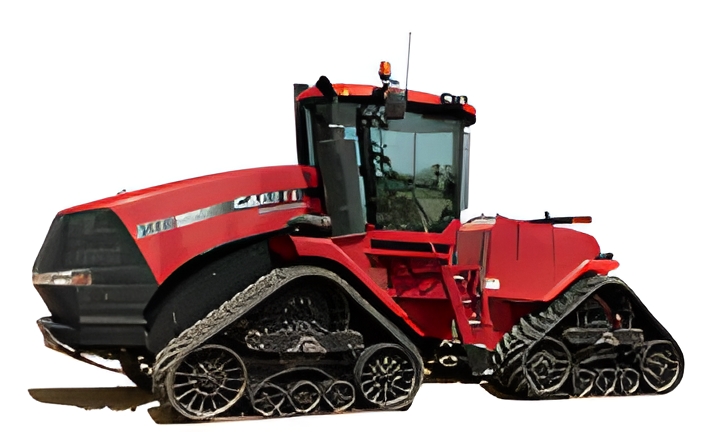

CaseIH Steiger 620 Quadtrac
CaseIH Steiger 620 Quadtrac — Steiger Quadtrac Series · 682 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
682 hp
Max power
402.0 kW
Weight
48780 to 60145 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Articulated Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $567,632 in 2015Reference
Drivearticulated crawlerReference
Final drivesplanetaryReference
Steeringhydraulic articulatedReference
Brakeshydraulic wet discReference
Brakesengine brakeReference
Trailer brakeshydraulicReference
Surveyor Cab standard with air-conditioning.Reference
Variants
620wheeled tractorReference
620QTcrawler tractorReference
Engine
FPT 12.9L 6-cyl dieselReference
Fuel tank1779.0 LReference
Exhaust fluid (DEF)321.7 LReference
Engine462.3 kWReference
Engine (max)508.6 kWReference
Drawbar (tested)378.2 kWReference
FPTReference
two-stage turbocharged air-to-water intercooled air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power462.3 kWReference
Maximum Power508.6 kWReference
Fuel systemelectronic high pressure common railReference
Cooling systemhydraulically-driven fanReference
Compression15.5:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts24Reference
Max power402.0 kWReference
Power at rated engine speed357.2 kWReference
Max power378.2 kWReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)352.7 kWReference
PTO (tested)402.0 kWReference
Typepressure flow compensatedReference
Valves4 to 8Reference
Pump flow159.0 lpmReference
Pump flow215.7 lpmReference
Pump flow427.7 lpmReference
SCV flow132.5 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)8948 kgReference
Rear Armsquick couplerReference
DrawbarCat. 4Reference
DrawbarCat. 5Reference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@1811Reference
Power at rated PTO speed396.6 kWReference
Dimensions
Wheelbase391 cmReference
Weight48780 to 60145 poundsReference
30-inch tracksReference
Front axleFlangeReference
Flange rear axleReference
Shipping22126 kgReference
Operating27281 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
CaseIH Steiger 620 Quadtrac Tracks
Width76 cmReference
Width91 cmReference
Capacities
Max capacity29030 kgReference
Test results
Diesel 16-speed crawlerSeptember 30 - October 10, 2016Link: OCED Tractor Test 2165 fileReference
PTO performanceReference
Fuel use105.6 l/hourReference
Fuel use98.8 l/hourReference
Fuel use103.0 l/hourReference
Drawbar performanceReference
Fuel use115.4 l/hourReference
Gear 5 used for power test.Reference
Max pull26107 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
