Tractor · 2024Unverified

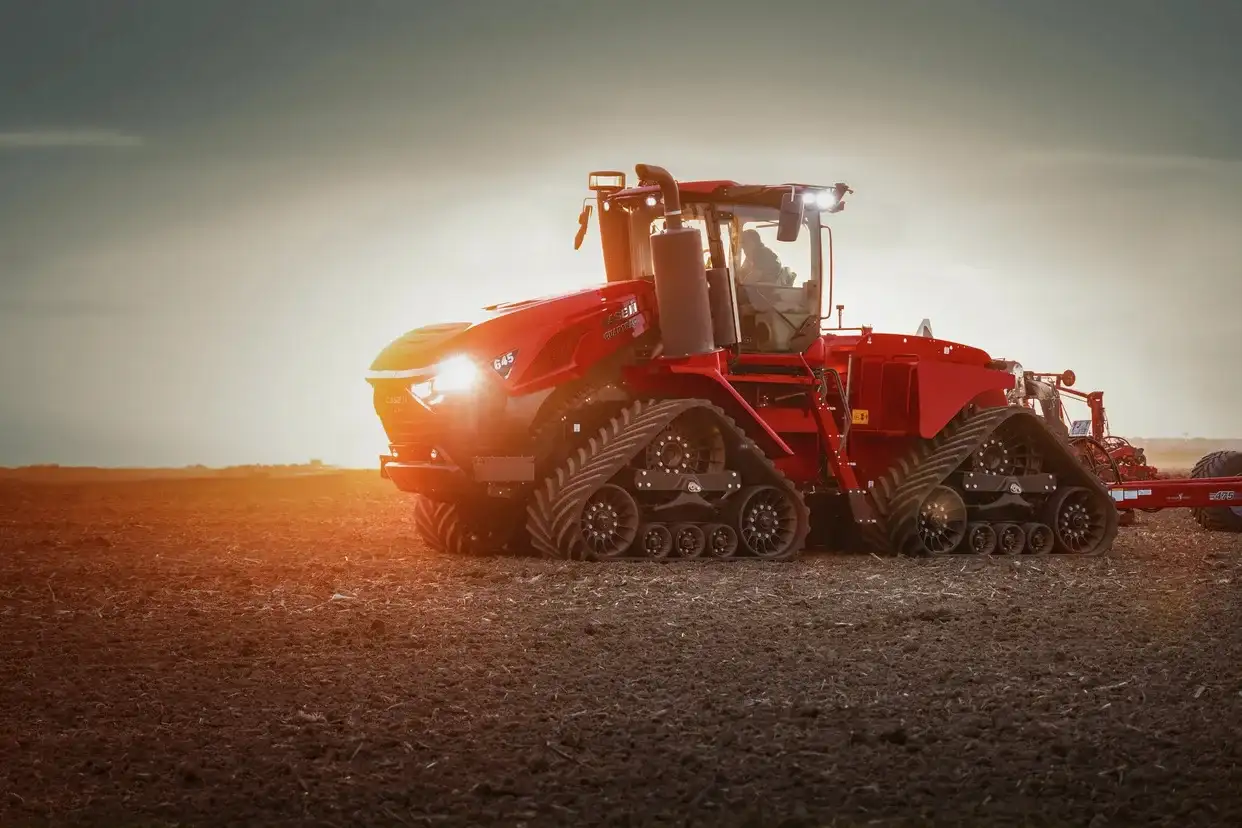

CaseIH Steiger 645

Name: CaseIH Steiger 645
Brand: CaseIH

CaseIH Steiger 645 — Steiger 4WD Series · 636 hp. Reference specifications; pending source verification.

The CaseIH Steiger 645 is a tractor model rated at 636 horsepower, positioning it amongst the higher-powered machines in its class. Manufactured in 2024, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system with a powershift transmission. The listed weight of the tractor is 22,828 kilograms. It is designed for use on large areas of land, typically exceeding 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

636 hp

Weight

22828 kg

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

636 hp

Recorded weight

22828 kg

Transmissions

17-speed full power shift

Production years

2024-2024

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $854,174 in 2026Reference

Four-wheel driveReference

Final drivesplanetaryReference

Differential lockautomatic front and rearReference

Articulated power steeringReference

Cab standard with air-conditioning.Reference

Variants

T9.700similar New Holland modelReference

Engine

FPT 12.9L 6-cyl dieselReference

Fuel tank1722.2 LReference

Exhaust fluid (DEF)249.8 LReference

Engine (gross)474.4 kWReference

Engine (max)514.1 kWReference

FPT Cursor 13Reference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement12.9 LReference

Bore/Stroke135 x 150 mmReference

EmissionsTier IVReference

Rated Power (gross)474.4 kWReference

Maximum Power (gross)514.1 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Transmission

17-speed full power shiftReference

TransmissionPowerDriveReference

Typefull power shiftReference

Gears17 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)394.9 kWReference

Typeclosed centerReference

Valves4 to 8Reference

Pump flow159.0 lpmReference

Pump flow215.7 lpmReference

Pump flow427.7 lpmReference

SCV flow132.5 lpmReference

Rear TypeIVNReference

Rear lift (at 24"/610mm)10319 kgReference

DrawbarCat 4Reference

DrawbarCat 5Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Dimensions

Wheelbase391 cmReference

Weight22828 kgReference

Front axle139 by 3048 mmReference

Bar rear axle139 by 3048 mmReference

Shipping22828 kgReference

Max Drawbar2721 kgReference

Max Drawbar4989 kgReference

Max Drawbar6804 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Charging amps330Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

Capacities

Max capacity30391 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
