Tractor · 2024Unverified

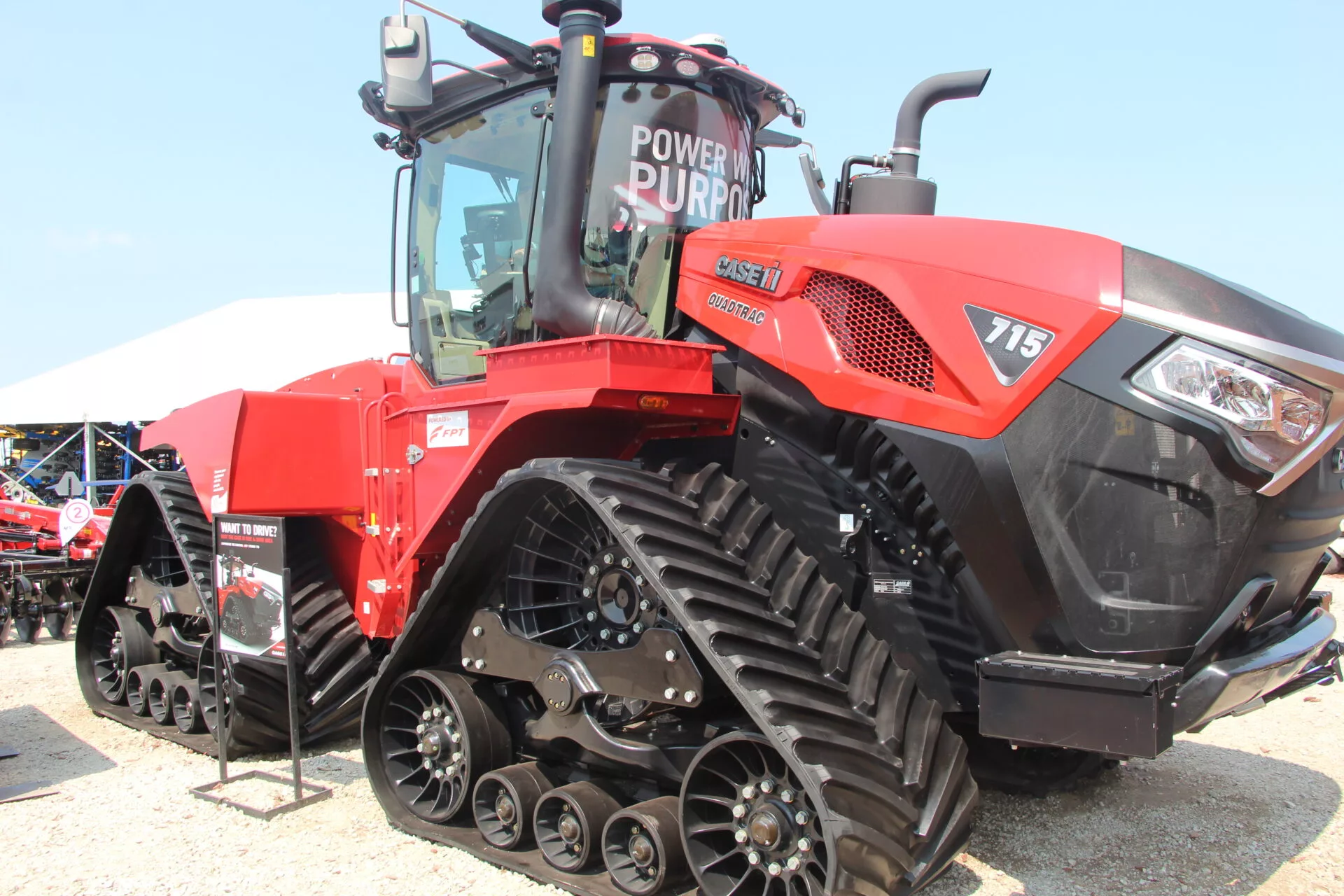

CaseIH Steiger 715 Quadtrac

Name: CaseIH Steiger 715 Quadtrac
Brand: CaseIH

CaseIH Steiger 715 Quadtrac — Steiger Quadtrac Series · 705 hp. Reference specifications; pending source verification.

The CaseIH Steiger 715 Quadtrac is a tractor model with a rated output of 705 horsepower, positioning it among the higher-powered machines in its class. It was manufactured in 2024. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine and a tracked undercarriage with a powershift transmission, with a listed weight of 27760 kilograms. It is intended for use on large areas, covering around 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

705 hp

Weight

27760 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

705 hp

Recorded weight

27760 kg

Transmissions

17-speed full power shift

Production years

2024-2024

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Articulated Crawler tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $1,169,817 in 2026Reference

Drivearticulated crawlerReference

Final drivesplanetaryReference

Articulated power steeringReference

Cab standard with air-conditioning.Reference

Engine

FPT 15.9L 6-cyl dieselReference

Fuel tank1968.2 LReference

Exhaust fluid (DEF)321.7 LReference

Engine (gross)525.9 kWReference

Engine (max)572.2 kWReference

FPT Cursor 16Reference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement15.9 LReference

Bore/Stroke141 x 170 mmReference

EmissionsTier IVReference

Rated Power (gross)525.9 kWReference

Maximum Power (gross)572.2 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Transmission

17-speed full power shiftReference

TransmissionPowerDriveReference

Typefull power shiftReference

Gears17 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)394.9 kWReference

Typeclosed centerReference

Valves4 to 8Reference

Pump flow215.7 lpmReference

Pump flow427.7 lpmReference

SCV flow132.5 lpmReference

Rear TypeIVNReference

Rear lift (at 24"/610mm)10092 kgReference

DrawbarCat 5Reference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Dimensions

Wheelbase391 cmReference

Weight27760 kgReference

TracksReference

Front axle2235 mmReference

Flange rear axle2235 mmReference

Shipping27760 kgReference

Max Drawbar6804 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Charging amps330Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

Capacities

Max capacity32659 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
