Tractor · 2025Unverified

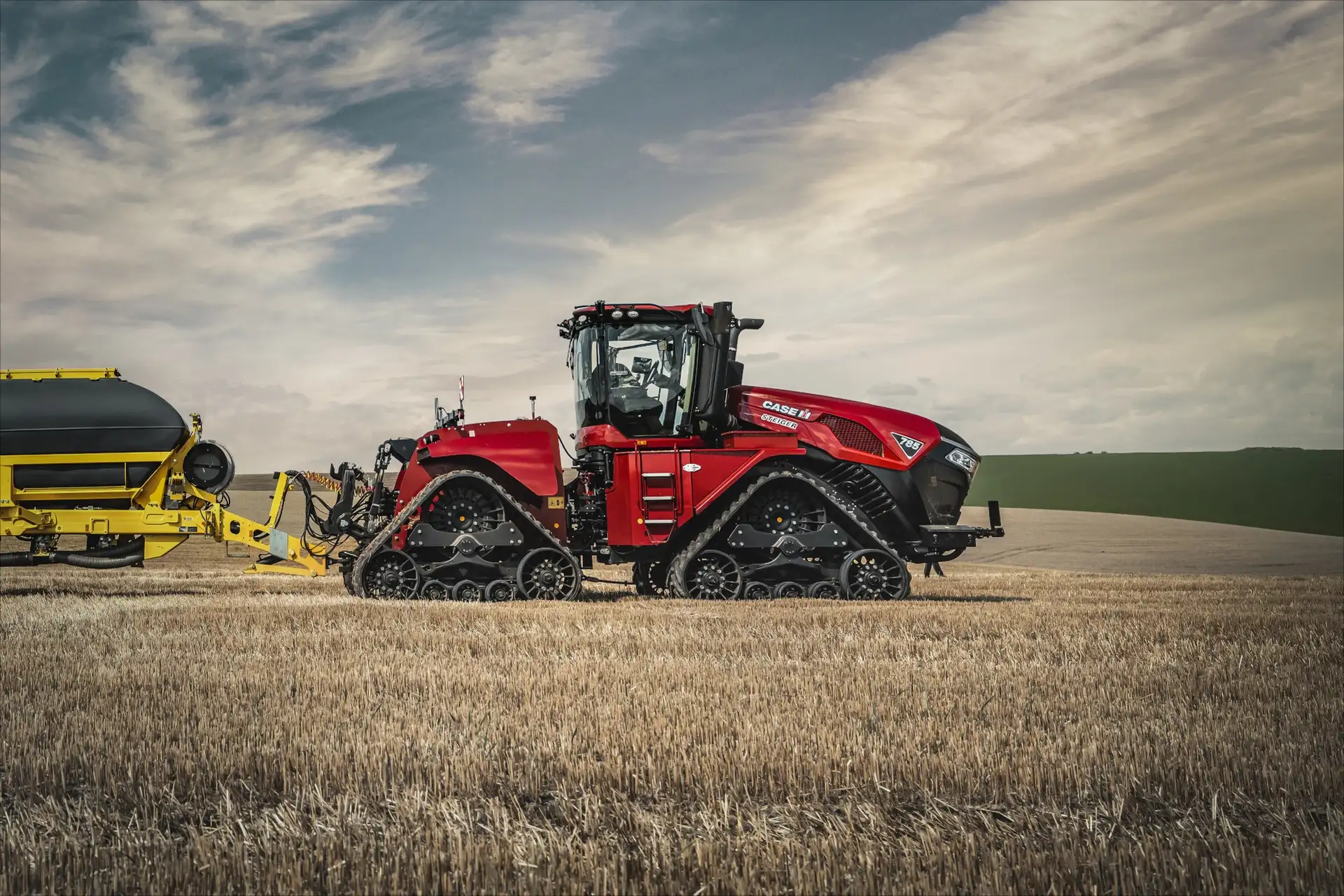

CaseIH Steiger 785 Quadtrac
CaseIH Steiger 785 Quadtrac — Steiger Quadtrac Series · 785 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
785 hp
Weight
27760 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Articulated Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $1,126,852 in 2026Reference
Drivearticulated crawlerReference
Final drivesplanetaryReference
Articulated power steeringReference
Cab standard with air-conditioning.Reference
Engine
FPT 15.9L 6-cyl dieselReference
Fuel tank1968.2 LReference
Exhaust fluid (DEF)321.7 LReference
Engine (gross)585.4 kWReference
Engine (max)636.1 kWReference
FPT Cursor 16Reference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement15.9 LReference
Bore/Stroke141 x 170 mmReference
EmissionsTier IVReference
Rated Power (gross)585.4 kWReference
Maximum Power (gross)636.1 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
17-speed full power shiftReference
TransmissionPowerDriveReference
Typefull power shiftReference
Gears17 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)394.9 kWReference
Typeclosed centerReference
Valves4 to 8Reference
Pump flow215.7 lpmReference
Pump flow427.7 lpmReference
SCV flow132.5 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)10092 kgReference
DrawbarCat 5Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase391 cmReference
Weight27760 kgReference
30-inch tracksReference
Front axle2235 mmReference
Flange rear axle2235 mmReference
Shipping27760 kgReference
Max Drawbar6804 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Charging amps330Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
CaseIH Steiger 785 Quadtrac Tracks
Width76 cmReference
Width91 cmReference
Capacities
Max capacity32659 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
