Tractor · 2000Unverified

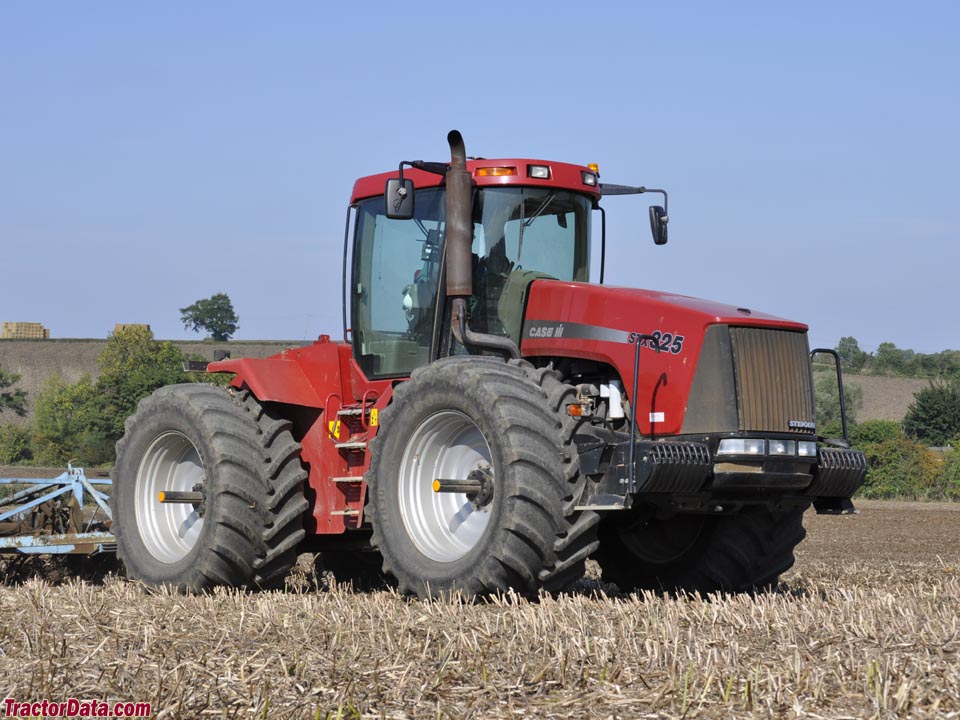

CaseIH STX325

Name: CaseIH STX325
Brand: CaseIH

CaseIH STX325 — Steiger STX Series · 292 hp. Reference specifications; pending source verification.

The CaseIH STX325 is a tractor model with a 292 hp rated output, categorising it among the higher-powered machines in its class. It has a production run spanning from 2000 to 2005. The STX325 features a 6-cylinder turbocharged diesel liquid-cooled engine, transmitting power to four-wheel drive via a hydrostatic transmission. The listed weight is 14481 kg, with an intended application for areas of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

292 hp

Max power

239.2 kW

Weight

14481 kg

Catalogue coverage

Variants represented

Richest spec table

74 rows

Recorded power

292 hp

Recorded weight

14481 kg

Transmissions

16-speed full power shift

Production years

2000-2005

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

The CaseIH STX325 is the same as the New Holland TJ325.Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Steeringhydrostatic powerReference

Integrated hydraulic wet disc brakesReference

Surveyor Cab standard.Reference

Variants

TJ325similar New Holland modelReference

Engine

CDC 8.9L 6-cyl dieselReference

Fuel tank757.0 LReference

Engine242.4 kWReference

Drawbar (claimed)179.0 kWReference

Drawbar (tested)194.5 kWReference

CDC 6TAA-9004Reference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement8.9 LReference

Bore/Stroke114 x 145 mmReference

Power242.4 kWReference

Air cleanerdual paper elementsReference

Compression16.5:1Reference

Rated RPM2000Reference

Torque1559.4 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity27.6 LReference

Max power239.2 kWReference

Power at rated engine speed217.6 kWReference

Max power194.5 kWReference

Transmission

16-speed full power shiftReference

24-speed fully synchronizedReference

Typefull power shiftReference

Gears16 forward and 2 reverseReference

Clutchelectro-hydraulic wet discReference

TransmissionSynchroshiftReference

Typefully synchronizedReference

Gears24 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)201.3 kWReference

PTO (tested)239.2 kWReference

Typepressure flow compensated (PFC)Reference

Rear valves4 to 7Reference

SCV flow132.5 lpmReference

Total flow151.4 lpmReference

Total flow208.2 lpmReference

Rear TypeIVN/IIIReference

Rear lift (at 24"/610mm)6577 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Dimensions

Wheelbase353 cmReference

Wheelbase368 cmReference

Weight14481 kgReference

Length750 cmReference

Width92 cmReference

Height368 cmReference

Front axle101 mmReference

Rear axle101 mmReference

Rear tread152 to 447 cmReference

Operating14481 kgReference

Max Drawbar2041 kgReference

Max Drawbar4989 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Capacities

Max capacity17690 kgReference

Test results

Diesel 16-speed 4WDOctober 4 - 12, 2001Link: Nebraska Tractor Test 1797 fileReference

PTO performanceReference

Fuel use65.1 l/hourReference

Fuel use60.9 l/hourReference

Drawbar performanceReference

Fuel use61.7 l/hourReference

Gear 5 used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
