Tractor · 2006Unverified

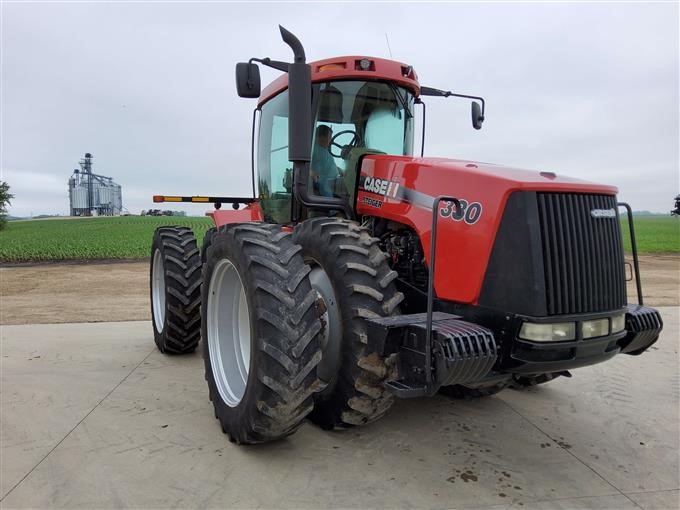

CaseIH STX330
CaseIH STX330 — Steiger STX Series · 286 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
286 hp
Max power
241.1 kW
Weight
14649 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesinboard 3-planetaryReference
Final drivesinboard 4-planetary (STX330 HD)Reference
Steeringhydrostatic powerReference
Integrated hydraulic wet disc brakesReference
Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating.Reference
Engine
CDC 8.9L 6-cyl dieselReference
Fuel tank757.0 LReference
Engine246.1 kWReference
Drawbar (tested)192.9 kWReference
CDCReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.9 LReference
Bore/Stroke114 x 145 mmReference
Power246.1 kWReference
Air cleanerdual paper elementsReference
Compression16.6:1Reference
Rated RPM2000Reference
Starter volts12Reference
Max power241.1 kWReference
Power at rated engine speed213.1 kWReference
Max power192.9 kWReference
Transmission
16-speed full power shiftReference
24-speed fully synchronizedReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
TransmissionSynchroshiftReference
Typefully synchronizedReference
Gears24 forward and 6 reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)200.6 kWReference
PTO (tested)241.1 kWReference
Typepressure flow compensatedReference
Valves4Reference
Pump flow151.4 lpmReference
Pump flow208.2 lpmReference
Pump flow340.7 lpmReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)7107 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase353 cmReference
Weight14649 kgReference
Front tire480/80R46Reference
Rear tire480/80R46Reference
Ag front480/80R46Reference
Ag rear480/80R46Reference
Operating weight14649 kgReference
Max weight17962 kgReference
Bar rear axle101 mmReference
Bar rear axle114 mmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 16-speed 4WDSeptember 19 - October 22, 2007Link: Nebraska Tractor Test 1907 fileReference
PTO performanceReference
Fuel use68.1 l/hourReference
Fuel use64.3 l/hourReference
Drawbar performanceReference
Fuel use64.0 l/hourReference
Gear 5 used for power test.Reference
Max pull14150 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
