Tractor · 2000Unverified

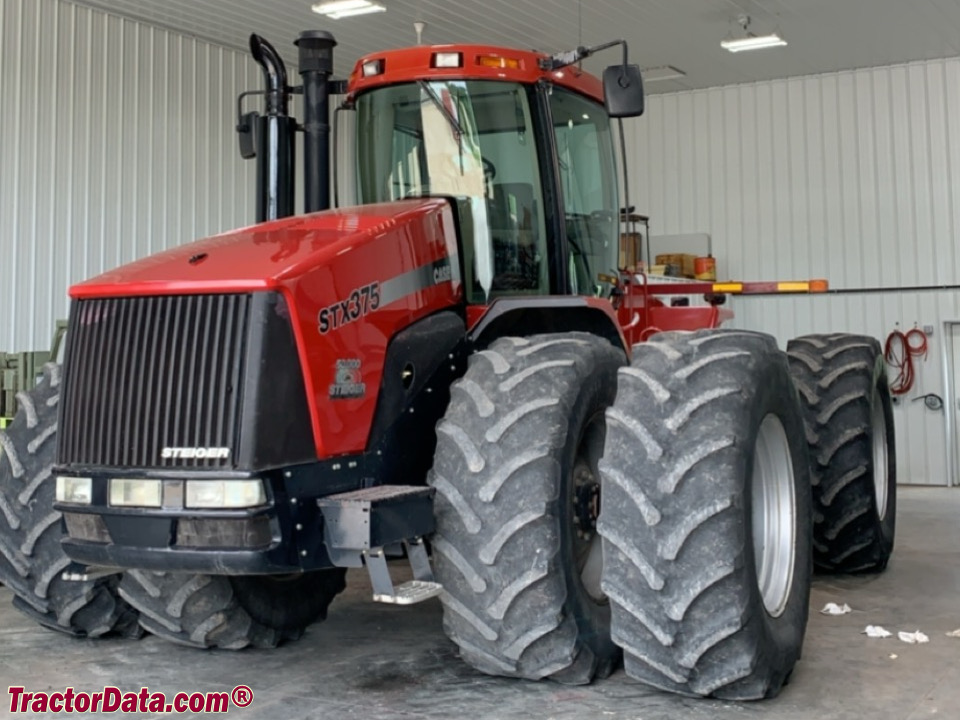

CaseIH STX375
CaseIH STX375 — Steiger STX Series · 338 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
338 hp
Max power
288.3 kW
Weight
17059 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
The STX375 is the same as the New Holland TJ375.Reference
Four-wheel driveReference
Final drivesinboard planetary (standard)Reference
Final drivescompound planetary (HD/scraper)Reference
Steeringhydrostatic powerReference
Integrated hydraulic wet disc brakesReference
Surveyor Cab standard.Reference
Variants
STX375wheeled tractorReference
STX375QTcrawler tractorReference
TJ375similar New Holland modelReference
Engine
Cummins 14.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine279.6 kWReference
Drawbar (claimed)227.4 kWReference
Drawbar (tested)234.1 kWReference
Cummins QSX 15Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.9 LReference
Bore/Stroke137 x 169 mmReference
Power279.6 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2000Reference
Torque1871.3 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity49.2 LReference
Max power288.3 kWReference
Power at rated engine speed252.0 kWReference
Max power234.1 kWReference
Transmission
16-speed full power shiftReference
24-speed fully synchronizedReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
TransmissionSynchroshiftReference
Typefully synchronizedReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)246.1 kWReference
PTO (tested)288.3 kWReference
Typepressure flow compensated (PFC)Reference
Rear valves4 to 7Reference
SCV flow132.5 lpmReference
Total flow151.4 lpmReference
Total flow208.2 lpmReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)8845 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase391 cmReference
Weight17059 kgReference
Length806 cmReference
Width111 cmReference
Height386 cmReference
Front axle114 mmReference
Rear axle114 mmReference
Rear tread152 to 447 cmReference
Operating17059 kgReference
Max Drawbar2404 kgReference
Max Drawbar4989 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Capacities
Max capacity20412 kgReference
Test results
Diesel 16-speed 4WDOctober 9 - 18, 2000Link: OCED Tractor Test 1783 fileReference
PTO performanceReference
Fuel use72.3 l/hourReference
Drawbar performanceReference
Gear 5 used for power test.Reference
Max pull15267 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
