Tractor · 2006Unverified

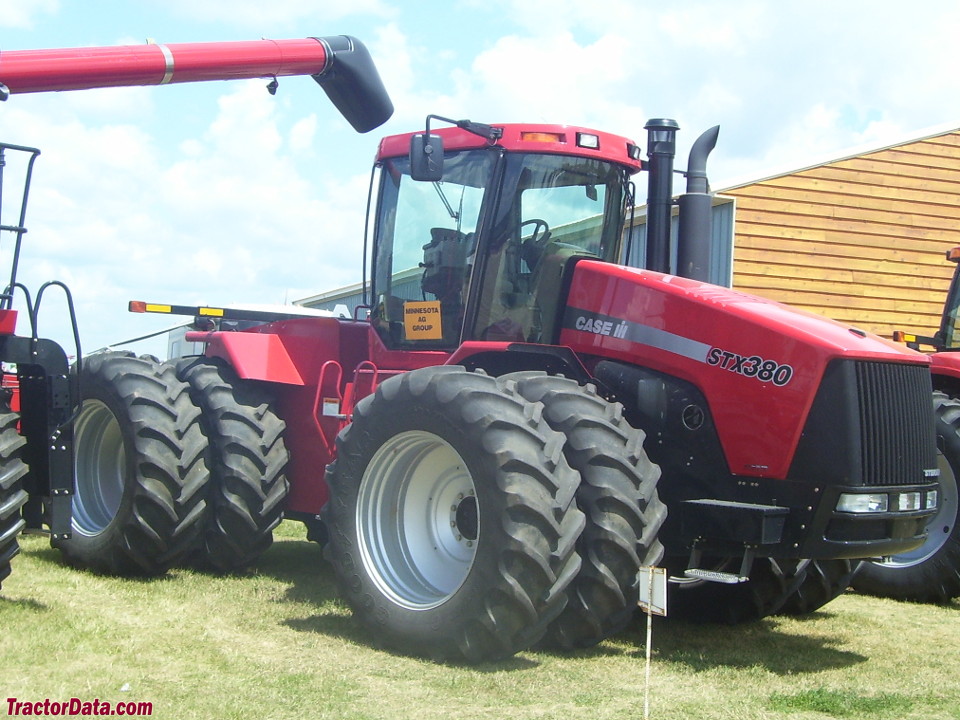

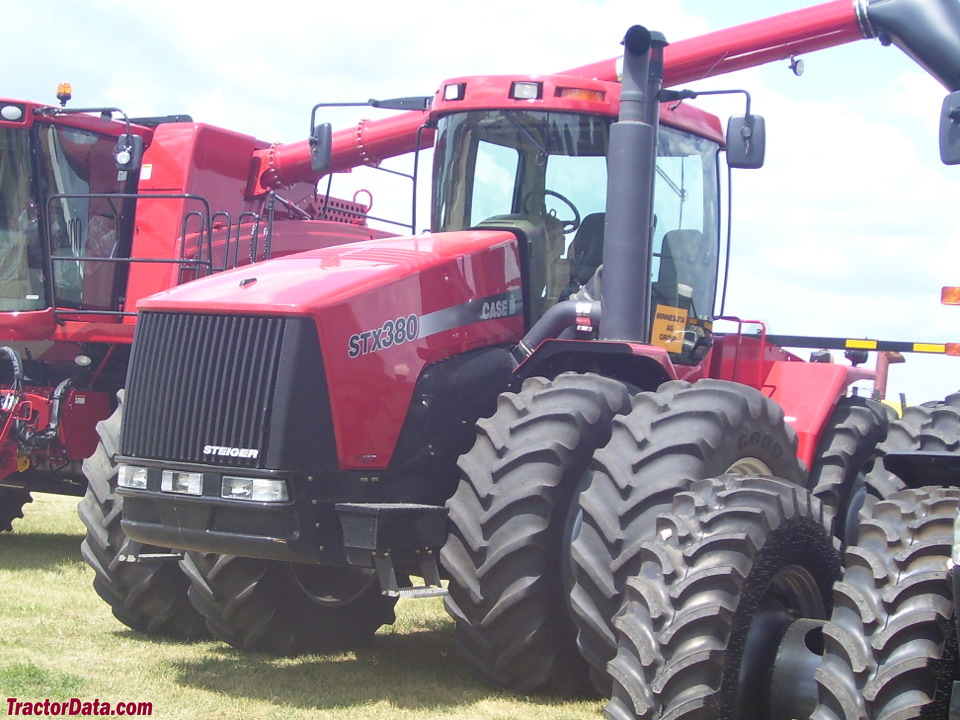

CaseIH STX380
CaseIH STX380 — Steiger STX Series · 347 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
347 hp
Max power
291.5 kW
Weight
37900 to 41605 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Drive4x4 articulared 4WDReference
Final drivesinboard 4-planetaryReference
Final drivesinboard compound planetary (STX380 HD)Reference
Steeringhydrostatic powerReference
Integrated hydraulic wet disc brakesReference
Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating.Reference
Variants
STX380wheeled tractorReference
STX380QTcrawlerReference
Engine
Iveco 12.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine283.4 kWReference
Drawbar (tested)238.2 kWReference
IvecoReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
Power283.4 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2000Reference
Starter volts12Reference
Max power291.5 kWReference
Power at rated engine speed258.8 kWReference
Max power238.2 kWReference
Transmission
16-speed full power shiftReference
24-speed fully synchronizedReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
TransmissionSynchroshiftReference
Typefully synchronizedReference
Gears24 forward and 6 reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)249.8 kWReference
PTO (tested)291.5 kWReference
Typepressure flow compensatedReference
Valves4Reference
Pump flow151.4 lpmReference
Pump flow208.2 lpmReference
Pump flow340.7 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)8899 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase391 cmReference
Weight37900 to 41605 poundsReference
Bar rear axle114 mmReference
Rear tread152 to 447 cmReference
Shipping17191 kgReference
Operating18872 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Max capacity20684 kgReference
Test results
Diesel 16-speed 4WDOctober 16 - 23, 2007Link: OCED Tractor Test 1908 fileReference
PTO performanceReference
Fuel use85.5 l/hourReference
Fuel use78.3 l/hourReference
Drawbar performanceReference
Fuel use77.6 l/hourReference
Gear 4 used for power test.Reference
Max pull18763 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
