Tractor · 2006Unverified

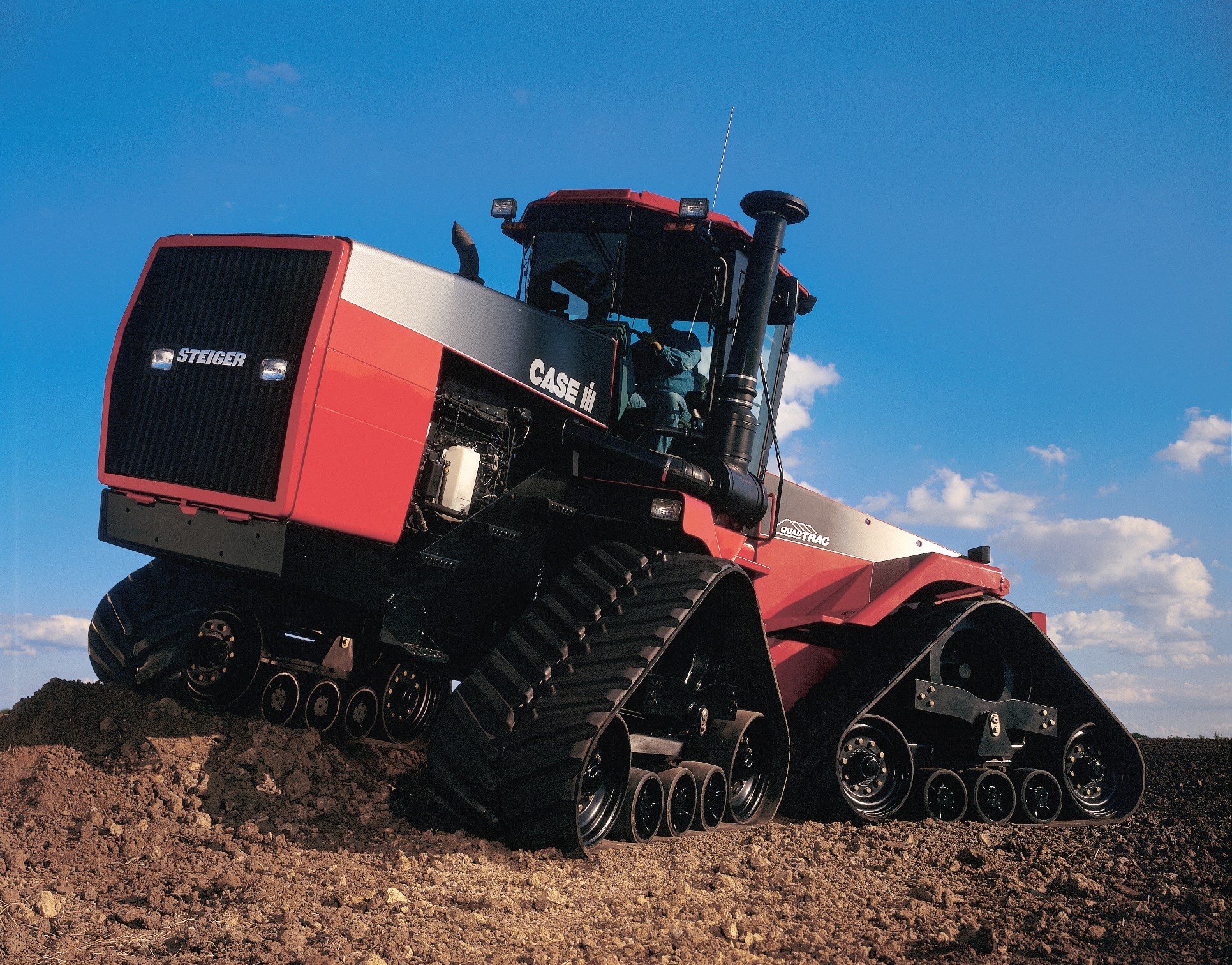

CaseIH STX430QT Quadtrac
CaseIH STX430QT Quadtrac — Quadtrac Series · 375 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
375 hp
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Articulated Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Drivearticulated crawlerReference
Final drivesoffset 3-planetaryReference
Steeringhydrostatic powerReference
Integrated hydraulic wet disc brakesReference
Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating.Reference
Variants
STX430wheeled tractorReference
STX430QTcrawlerReference
Engine
Iveco 12.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine320.7 kWReference
IvecoReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke135 x 150 mmReference
Power320.7 kWReference
Rated RPM2000Reference
Starter volts12Reference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)279.6 kWReference
Typepressure flow compensatedReference
Pump flow151.4 lpmReference
Pump flow208.2 lpmReference
Pump flow340.7 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)8948 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase391 cmReference
30-inch tracksReference
Max weight24494 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
CaseIH STX430QT Tracks
Width76 cmReference
Width91 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
