Tractor · 2006Unverified

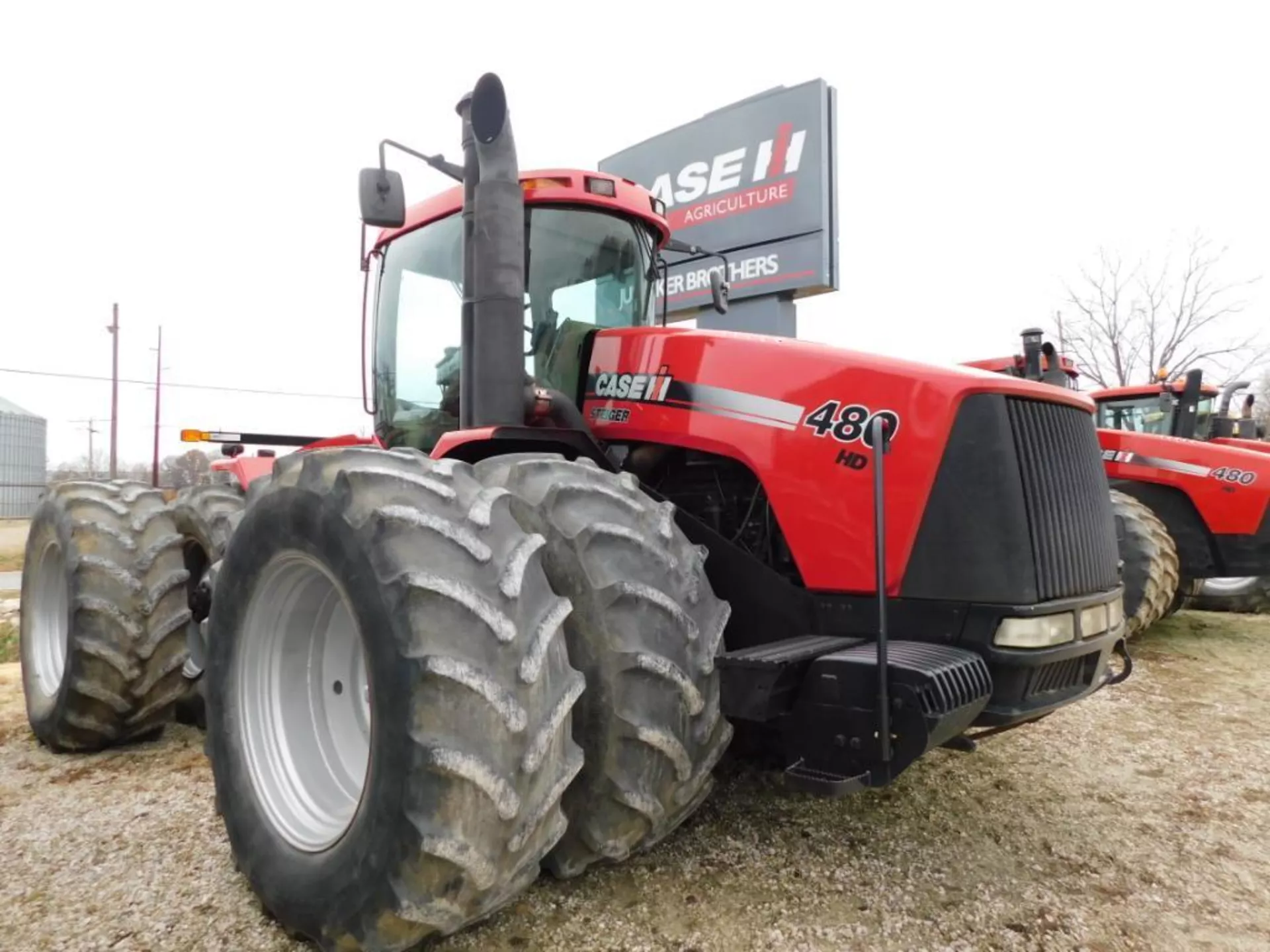

CaseIH STX480

Name: CaseIH STX480
Brand: CaseIH

CaseIH STX480 — Steiger STX Series · 429 hp. Reference specifications; pending source verification.

The CaseIH STX480 is a tractor model with a rated power output of 429 hp, categorising it among the higher-powered machines in its class. Manufactured from 2006 to 2007, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive via a hydrostatic transmission. The listed weight for the CaseIH STX480 is 20250 kg, making it suitable for jobs covering approximately 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

429 hp

Max power

360.3 kW

Weight

20250 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

429 hp

Recorded weight

20250 kg

Transmissions

16-speed full power shift

Production years

2006-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Four-wheel driveReference

Final drivesinboard 4-planetaryReference

Final drivesinboard compound planetary (STX480 HD)Reference

Steeringhydrostatic powerReference

Integrated hydraulic wet disc brakesReference

Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating.Reference

Variants

STX480wheeled tractorReference

STX5480QTcrawlerReference

Engine

Cummins 14.9L 6-cyl dieselReference

Fuel tank1135.5 LReference

Engine357.9 kWReference

Drawbar (tested)291.7 kWReference

Cummins QSX15Reference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement14.9 LReference

Bore/Stroke137 x 169 mmReference

Power357.9 kWReference

Air cleanerdual paper elementsReference

Compression17.0:1Reference

Rated RPM2000Reference

Starter volts24Reference

Max power360.3 kWReference

Power at rated engine speed319.9 kWReference

Max power291.7 kWReference

Transmission

16-speed full power shiftReference

Typefull power shiftReference

Gears16 forward and 2 reverseReference

Clutchelectro-hydraulic wet discReference

PTO & Hydraulics

PTO (claimed)316.9 kWReference

PTO (tested)360.3 kWReference

Typepressure flow compensatedReference

Valves4Reference

Pump flow151.4 lpmReference

Pump flow208.2 lpmReference

Pump flow340.7 lpmReference

Rear TypeIVNReference

Rear lift (at 24"/610mm)8899 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Dimensions

Wheelbase391 cmReference

Weight20250 kgReference

Front tire520/85R42Reference

Rear tire520/85R42Reference

Ag front520/85R42Reference

Ag rear520/85R42Reference

Operating weight20250 kgReference

Max weight24494 kgReference

Bar rear axle114 mmReference

Rear tread152 to 447 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Test results

Diesel 16-speed 4WDSeptember 28 - October 24, 2007Link: OCED Tractor Test 1910 fileReference

PTO performanceReference

Fuel use101.8 l/hourReference

Fuel use95.8 l/hourReference

Drawbar performanceReference

Fuel use95.4 l/hourReference

Gear 4 used for power test.Reference

Max pull20240 kgReference

Gear 3 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
