Tractor · 2004Unverified

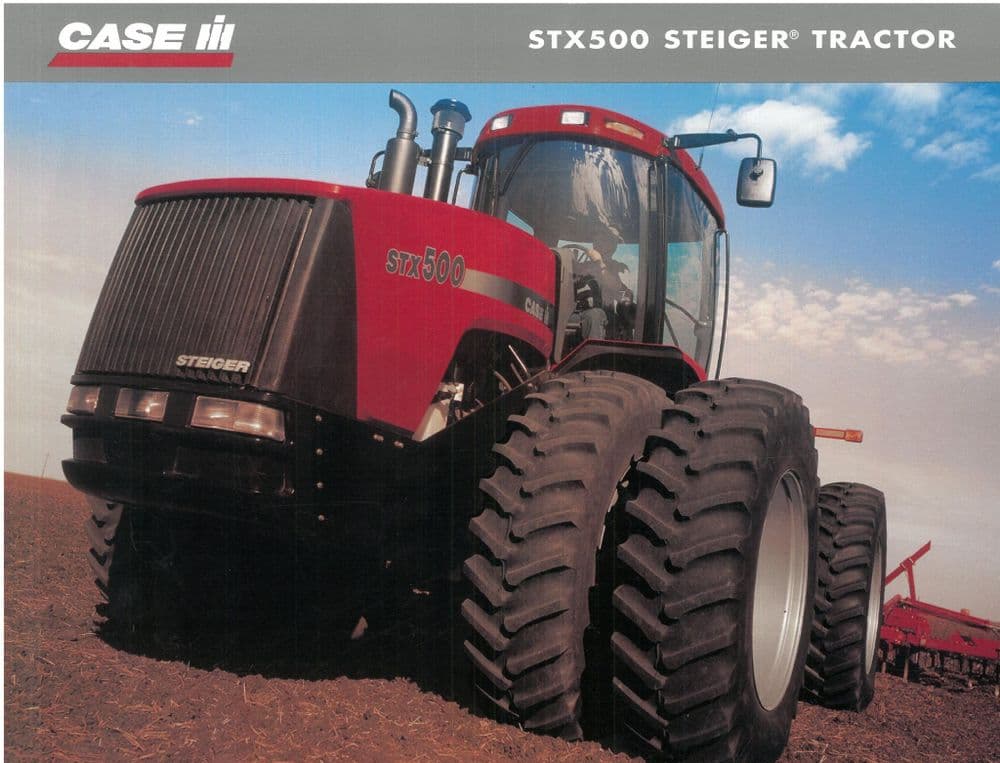

CaseIH STX500

Name: CaseIH STX500
Brand: CaseIH

CaseIH STX500 — Steiger STX Series · 440 hp. Reference specifications; pending source verification.

The CaseIH STX500 is a tractor model with a maximum power output of 440 hp, positioning it among the higher-powered machines in its class. Manufactured from 2004 to 2006, this model utilises a 6-cylinder turbocharged diesel liquid-cooled engine, which drives four-wheel drive through a powershift transmission. The listed weight of the CaseIH STX500 is 24494 kg. It is designed for use on areas of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

440 hp

Weight

24494 kg

Catalogue coverage

Variants represented

Richest spec table

35 rows

Recorded power

440 hp

Recorded weight

24494 kg

Transmissions

16-speed full power shift

Production years

2004-2006

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Four-wheel driveReference

Final drivescompound planetaryReference

Surveyor Cab standard.Reference

Variants

TJ500similar New Holland modelReference

Engine

Cummins 14.9L 6-cyl dieselReference

Fuel tank1135.5 LReference

Engine372.9 kWReference

Cummins QSX 15Reference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement14.9 LReference

Bore/Stroke137 x 169 mmReference

Power372.9 kWReference

Starter volts12Reference

Transmission

16-speed full power shiftReference

Typefull power shiftReference

Gears16 forward and 2 reverseReference

Clutchelectro-hydraulic wet discReference

PTO & Hydraulics

PTO (claimed)328.1 kWReference

Typepressure flow compensated (PFC)Reference

SCV flow132.5 lpmReference

Total flow159.0 lpmReference

Total flow215.7 lpmReference

Rear TypeIVN/IIIReference

Rear lift (at 24"/610mm)8845 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Dimensions

Wheelbase391 cmReference

Weight24494 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
