Tractor · 2004Unverified

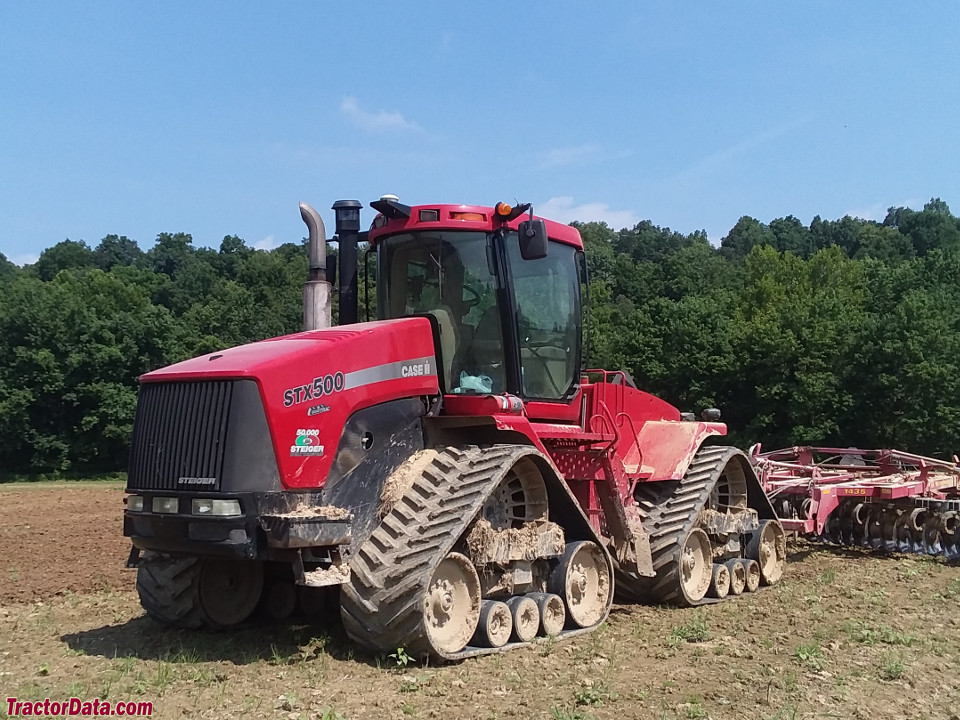

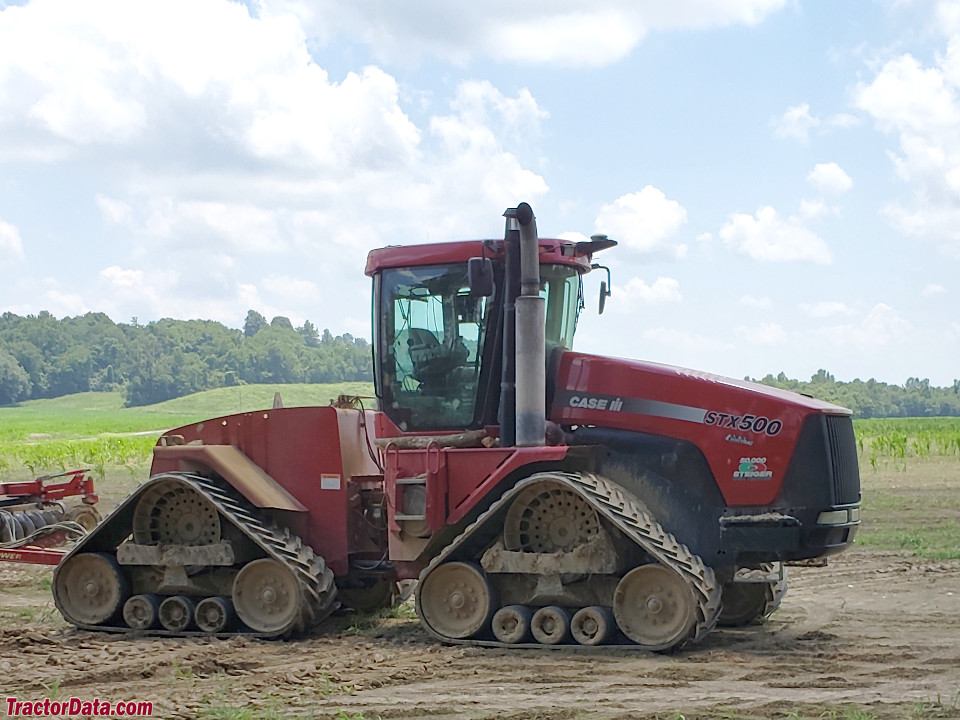

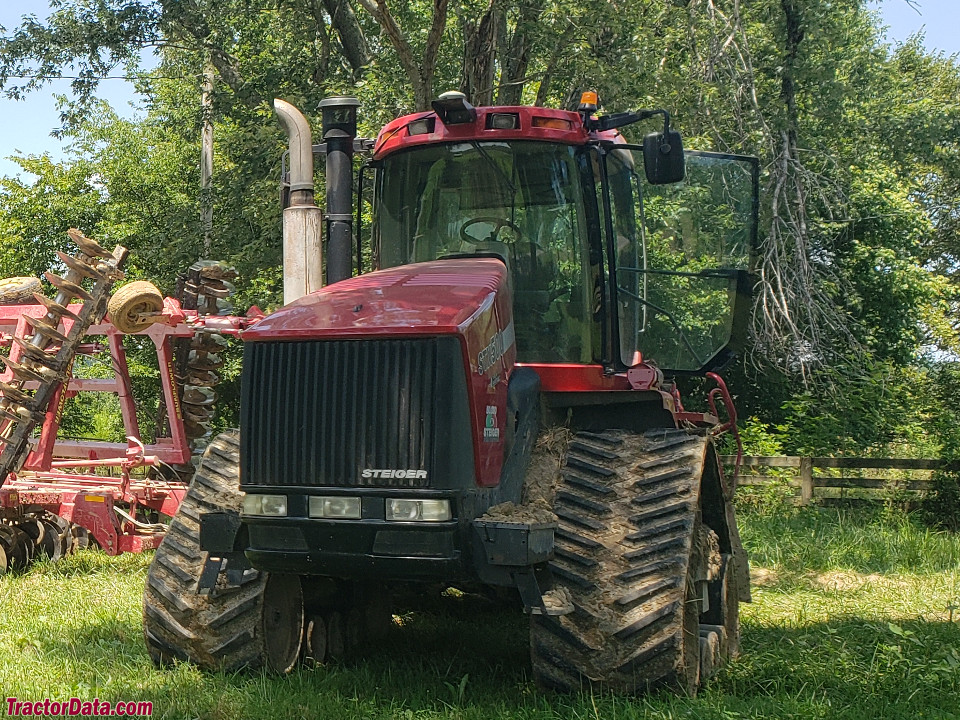

CaseIH STX500QT Quadtrac
CaseIH STX500QT Quadtrac — Steiger STX Series · 440 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
440 hp
Weight
24160 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Articulated Crawler tractorReference
Built in Fargo, North Dakota, USAReference
Drivearticulated crawlerReference
Steeringhydrostatic powerReference
Integrated hydraulic wet disc brakesReference
Surveyor Cab standard.Reference
Engine
Cummins 15.0L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine372.9 kWReference
CumminsReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement15.0 LReference
Bore/Stroke137 x 170 mmReference
Power372.9 kWReference
Starter volts12Reference
Transmission
16-speedReference
Transmissionfull power shiftReference
Gears16 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)328.1 kWReference
Typepressure flow compensatingReference
Pump flow159.0 lpmReference
Pump flow215.7 lpmReference
Rear lift8845 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase391 cmReference
Weight24160 kgReference
30-inch tracksReference
Electrical
GroundnegativeReference
Battery volts12Reference
CaseIH STX500QT Tracks
Width76 cmReference
Width91 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
