Tractor · 2006Unverified

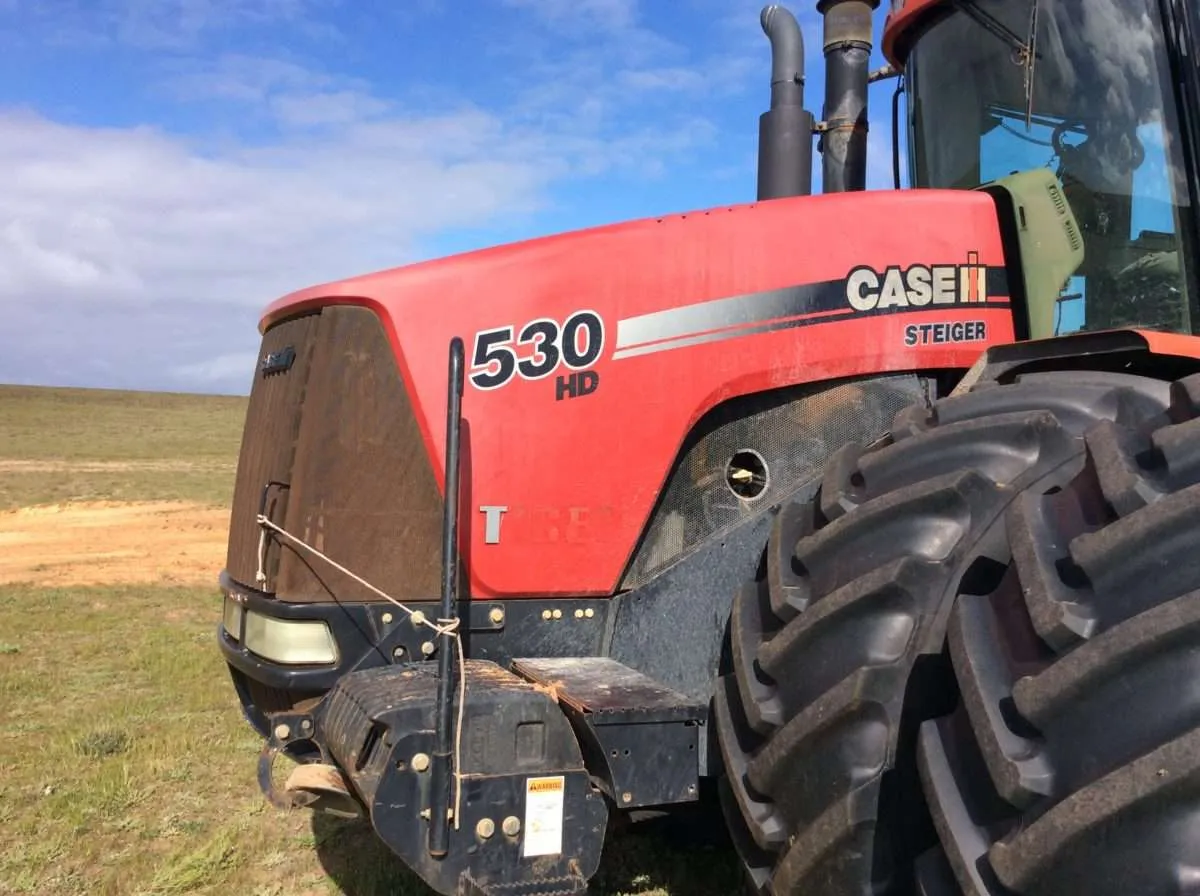

CaseIH STX530
CaseIH STX530 — Steiger STX Series · 469 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
469 hp
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Four-wheel driveReference
Final drivesinboard compound planetaryReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating.Reference
Variants
STX530wheeled tractorReference
STX530QTcrawlerReference
Engine
Cummins 14.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine395.2 kWReference
Cummins QSX15Reference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement14.9 LReference
Bore/Stroke137 x 169 mmReference
Power395.2 kWReference
Air cleanerdual paper elementsReference
Compression17:1Reference
Rated RPM2100Reference
Starter volts24Reference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)349.7 kWReference
Typepressure flow compensatedReference
Valves4Reference
Pump flow159.0 lpmReference
Pump flow215.7 lpmReference
Pump flow355.8 lpmReference
Rear TypeIVNReference
Rear lift (at 24"/610mm)8899 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase391 cmReference
Max weight24494 kgReference
Bar rear axle114 mmReference
Rear tread152 to 447 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
