Tractor · 2020Unverified

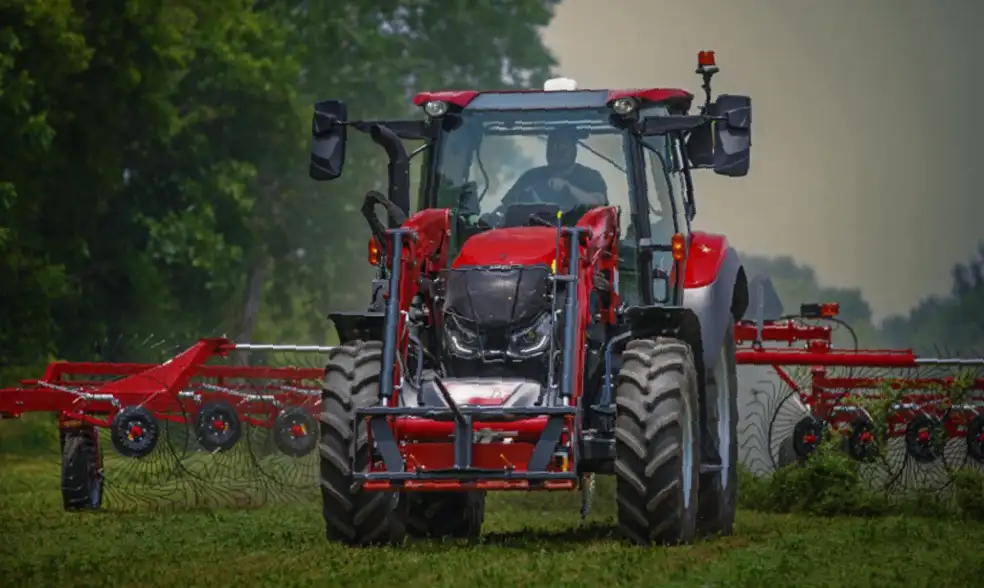

CaseIH Vestrum 110

Name: CaseIH Vestrum 110
Brand: CaseIH

CaseIH Vestrum 110 — Vestrum Series · 109 hp. Reference specifications; pending source verification.

The CaseIH Vestrum 110 is a tractor model with an engine rating of approximately 109 horsepower, a figure typical for its class. Produced in 2020, this model features a 4-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a powershift transmission. The operational weight of the Vestrum 110 is 5851 kg, and it is suitable for use on areas ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

109 hp

Weight

5851 kg

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

109 hp

Recorded weight

5851 kg

Transmissions

24-speed 8-speed power shift

Production years

2020-2020

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Utility tractorReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

T5.120similar New Holland modelReference

Engine

FPT 4.5L 4-cyl dieselReference

Fuel tank179.8 LReference

Exhaust fluid (DEF)18.9 LReference

Engine (gross)80.9 kWReference

Engine (max)88.3 kWReference

FPTReference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reductionReference

Rated Power (gross)80.9 kWReference

Maximum Power (gross)88.3 kWReference

Fuel systemelectronic high-pressure common-rail direct injectionReference

Rated RPM2200Reference

Torque551.1 NmReference

Torque RPM1300Reference

StarterelectricReference

Starter volts12Reference

Transmission

continuously-variable transmissionReference

24-speed 8-speed power shiftReference

TransmissionCVXDriveReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverse (2-range)Reference

TransmissionActiveDrive 8Reference

Type8-speed power shiftReference

Gears24 forward and reverseReference

PTO & Hydraulics

PTO (claimed)65.6 kWReference

Typeclosed center load-sensingReference

Pressure200.0 barReference

Rear valves4Reference

Mid valves3Reference

Pump flow110.1 lpmReference

Rear TypeIIReference

Rear TypeIIINReference

Controlelectronic lower-link draft sensingReference

Rear lift (at 24"/610mm)4199 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1969Reference

Engine RPM540E@1546Reference

Engine RPM1000@1893Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Dimensions

Wheelbase248 cmReference

Weight5851 kgReference

Front tire380/85R24Reference

Rear tire460/85R34Reference

Standard tires (ag)Front: 380/85R24. Rear: 460/85R34Reference

Optional tires (ag)Front: 440/65R28. Rear: 540/65R38Reference

Length478 cmReference

Width228 cmReference

Height (cab)283 cmReference

Max weight8799 kgReference

Flange rear axleReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
