Tractor · 2020Unverified

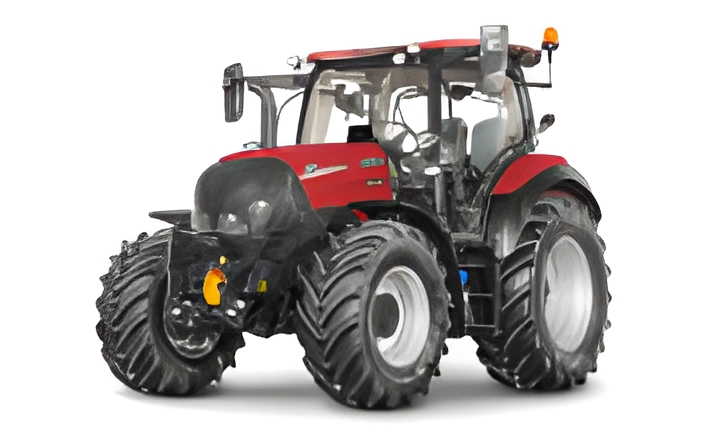

CaseIH Vestrum 130
CaseIH Vestrum 130 — Vestrum Series · 128 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
128 hp
Weight
5851 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Utility tractorReference
Original price$117,744 (2020 ActiveDrive8 )Reference
Original price$142,716 (2020 CVT )Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
T5.140similar New Holland modelReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank179.8 LReference
Exhaust fluid (DEF)18.9 LReference
Engine (gross)95.6 kWReference
Engine (max)103.0 kWReference
FPTReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reductionReference
Rated Power (gross)95.6 kWReference
Maximum Power (gross)103.0 kWReference
Fuel systemelectronic high-pressure common-rail direct injectionReference
Rated RPM2200Reference
Torque630.0 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously-variable transmissionReference
24-speed 8-speed power shiftReference
TransmissionCVXDriveReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverse (2-range)Reference
TransmissionActiveDrive 8Reference
Type8-speed power shiftReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)82.8 kWReference
Typeclosed center load-sensingReference
Pressure200.0 barReference
Rear valves4Reference
Mid valves3Reference
Pump flow110.1 lpmReference
Rear TypeIIReference
Rear TypeIIINReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)4199 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@1893Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Dimensions
Wheelbase248 cmReference
Weight5851 kgReference
Front tire380/85R24Reference
Rear tire460/85R34Reference
Standard tires (ag)Front: 380/85R24. Rear: 460/85R34Reference
Optional tires (ag)Front: 440/65R28. Rear: 540/65R38Reference
Length478 cmReference
Width228 cmReference
Height (cab)283 cmReference
Max weight8799 kgReference
Flange rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
