Tractor · 1925Unverified

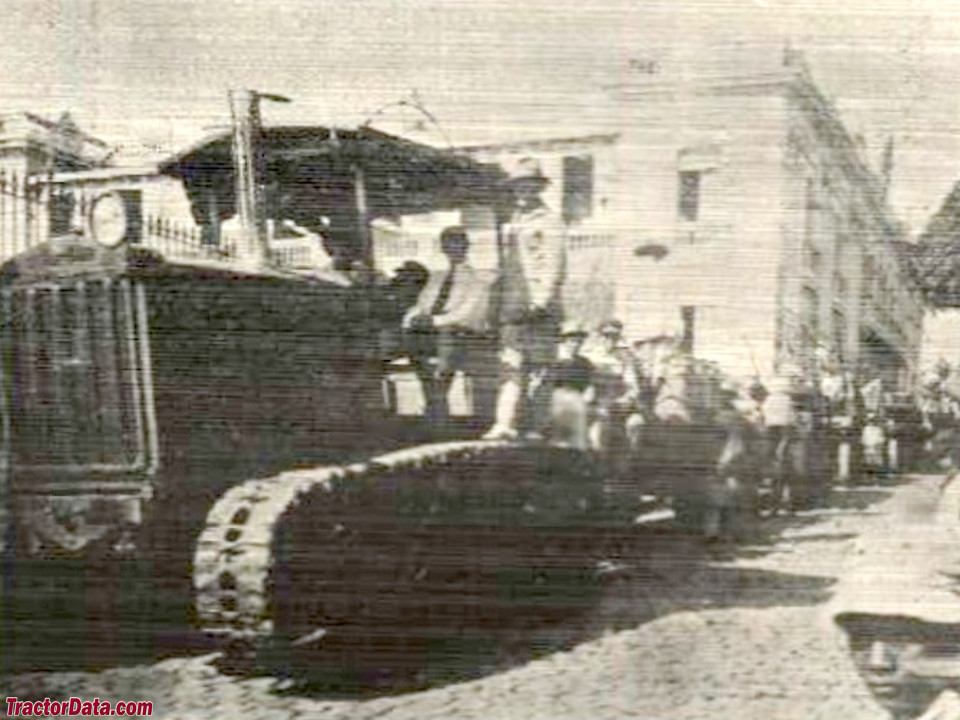

Caterpillar 10-Ton

Name: Caterpillar 10-Ton
Brand: Caterpillar

Caterpillar 10-Ton — Agricultural Crawler tractor · 40 hp. Reference specifications; pending source verification.

The Caterpillar 10-Ton is a tractor with a rated power of 40 hp, locating it at the lighter end of its class. This model was manufactured in 1925. It features a 4-cylinder petrol liquid-cooled engine paired with a tracked undercarriage and a 3-speed gearbox. The tractor has an operating weight of 9072 kg, making it suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

9072 kg

Catalogue coverage

Variants represented

Richest spec table

32 rows

Recorded power

40 hp

Recorded weight

9072 kg

Transmissions

3-speed gear

Production years

1925-1925

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaterpillarReference

Agricultural Crawler tractorReference

Built in Peoria, Illinois, USAReference

The Caterpillar model 10-Ton was a continuation of the Holt 10-Ton, in production since 1918.Reference

DrivecrawlerReference

Open operator station.Reference

Engine

Holt 15.2L 4-cyl gasolineReference

Fuel tank174.1 LReference

Drawbar (claimed)29.8 kWReference

Belt (claimed)41.0 kWReference

Holt M-11Reference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement15.2 LReference

Bore/Stroke165 x 178 mmReference

Rated RPM750Reference

Oil capacity17.0 LReference

Coolant capacity51.1 LReference

Transmission

3-speed gearReference

TypegearReference

Gears3 forward and 1 reverseReference

Oil capacity26.5 LReference

Dimensions

Weight9072 kgReference

15-inch tracksReference

Length383 cmReference

Width208 cmReference

Height287 cmReference

Gauge153 cmReference

Caterpillar 10-Ton Tracks

Width38 cmReference

Length on ground243 cmReference

Area on ground1.9 m²Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
