Tractor · 1925Unverified

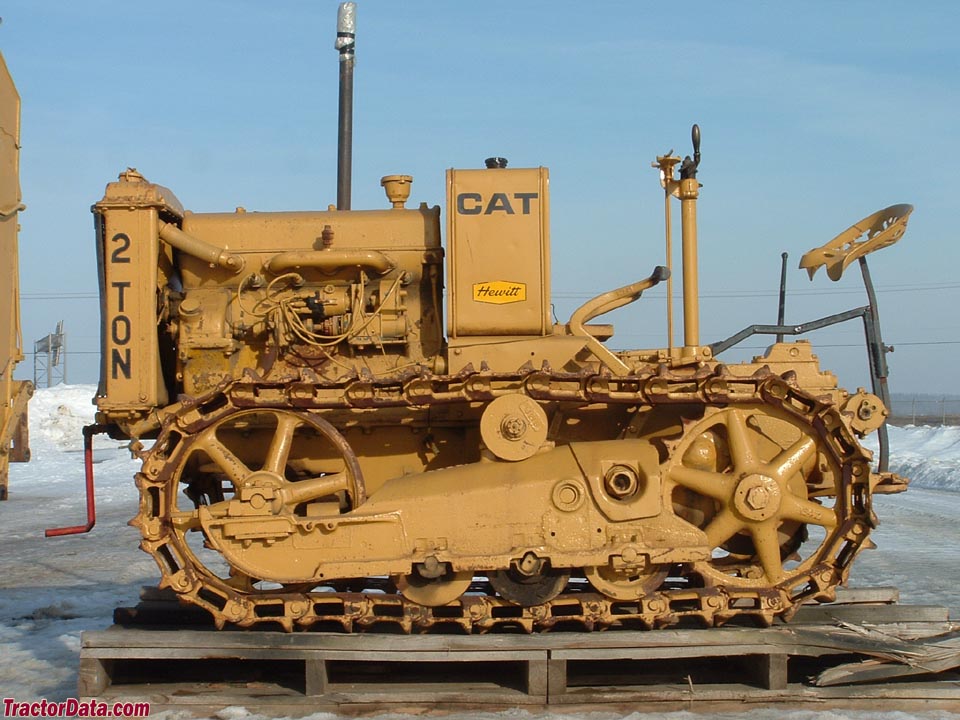

Caterpillar 2-Ton
Caterpillar 2-Ton — Agricultural Crawler tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Max power
13.6 kW
Weight
1832 kg
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Agricultural Crawler tractorReference
FactoriesStockton, California, USAReference
FactoriesPeoria, Illinois, USAReference
Total built1,350 (Stockton)Reference
Total built8,989 (Peoria)Reference
Original price was $1,850 in 1927Reference
The Caterpillar 2-Ton was a continuation of the Holt 2-Ton, which was the new name for the Holt T-35.Reference
DrivecrawlerReference
Open operator station.Reference
Engine
Caterpillar 4.1L 4-cyl gasolineReference
Caterpillar 4.5L 4-cyl gasolineReference
Fuel tank39.7 LReference
Drawbar (claimed)11.2 kWReference
Belt (claimed)18.6 kWReference
Drawbar (tested)13.6 kWReference
Belt (tested)19.0 kWReference
CaterpillarReference
gasolineReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke102 x 127 mmReference
Rated RPM1000Reference
Starter typehand crankReference
Displacement4.5 LReference
Bore/Stroke102 x 140 mmReference
Belt power (max)19.0 kWReference
Max power13.6 kWReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight1832 kgReference
TracksReference
Operating weight1832 kgReference
2-Ton Serial Numbers
192125003 (Holt CA)Reference
192225056 (Holt CA)Reference
192325577 (Holt CA)Reference
192426313 (Holt CA)Reference
192470001 (Holt IL)Reference
192570424 (Holt IL)Reference
192570817 (Cat IL)Reference
192671529 (Cat IL)Reference
192773146 (Cat IL)Reference
192875286 (Cat IL)Reference
Final78989 (Cat IL)Reference
FAQ: How to read a serial number table.Reference
Test results
Gasoline 3-speed crawlerJuly 19 - 26, 1922Reference
Belt fuel use (max)13.2 l/hourReference
Drawbar performanceReference
Max pull1485 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
